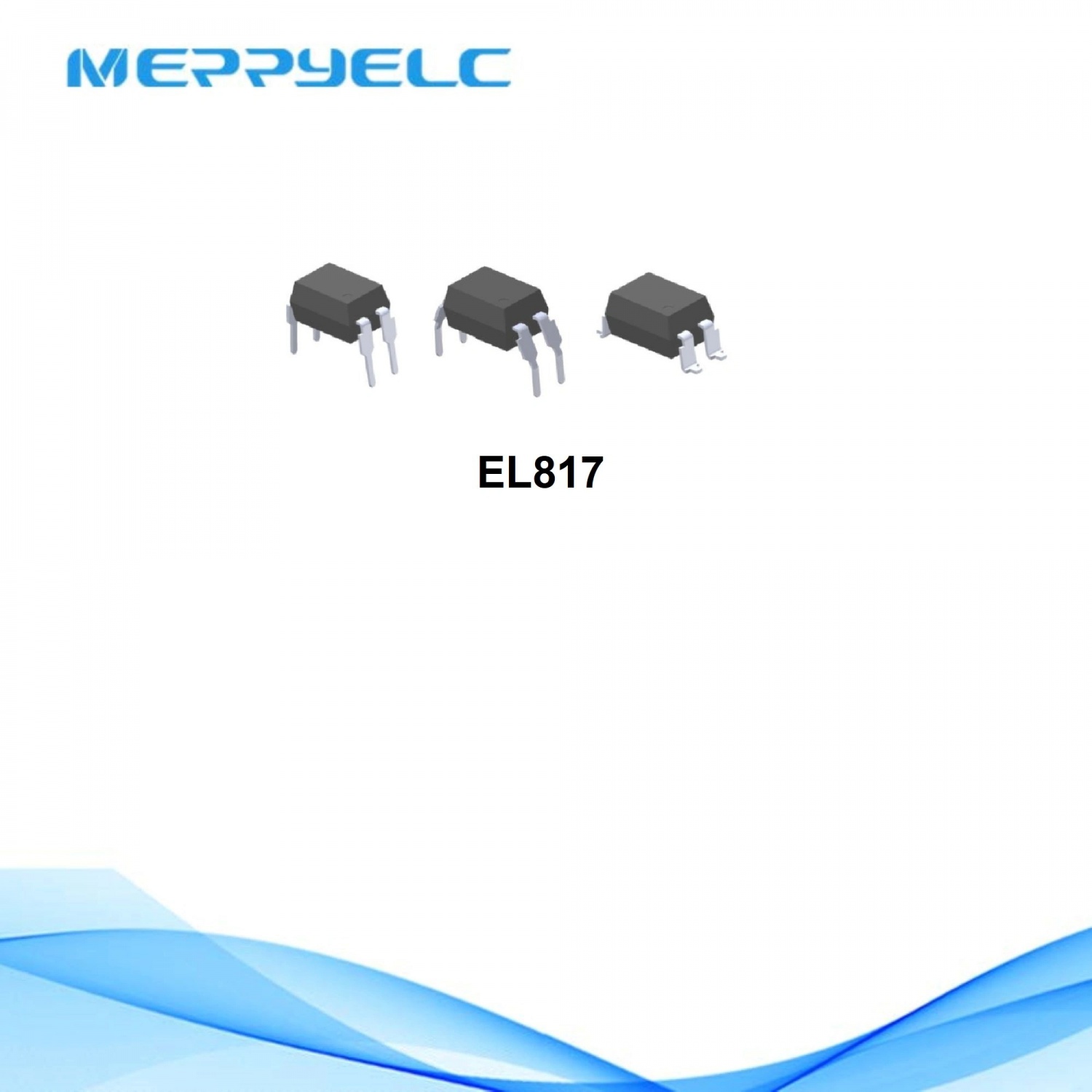

PHOTO COUPLER EL817 Series 4 PIN DIP PHOTO TRANSISTOR
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: SMD-4
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: SMD-4
Basic Info.
| Model NO. | EL817S1(B)(TU)-F | Material | Silicon |
| Features1 | Glass Passivated Chip | Features2 | Low Forward Voltage Drop |
| Features3 | Ideal for Printed Circuit Board | Features4 | High Surge Current Capability |
| Transport Package | Plastic Package | Origin | Guangdong, China |
| Production Capacity | 10000 Pieces/Day |
Part Name
PHOTO COUPLER EL817 Series 4 PIN DIP PHOTO TRANSISTOR EL817S1(B)(TU)-F
FEATURES
• Current transfer ratio
(CTR: 50~600% at IF = 5mA, VCE = 5V)
• High isolation voltage between input
and output (Viso = 5000Vrms)
• Creepage distance > 7.62mm
• Operating temperature up to +110°C
• Compact small outline package
•The product itself will remain within RoHS compliant version
• Compliance with EU REACH
• UL and cUL approved(No.E214129)
• VDE approved (No. 132249)
• SEMKO approved
• NEMKO approved
• DEMKO approved
• FIMKO approved
• CQC approved
APPLICATIONS
• Programmable controllers
• System appliances, measuring instruments
• Telecommunication equipments
• Home appliances, such as fan heaters, etc.
• Signal transmission between circuits of different potentials and impedances
