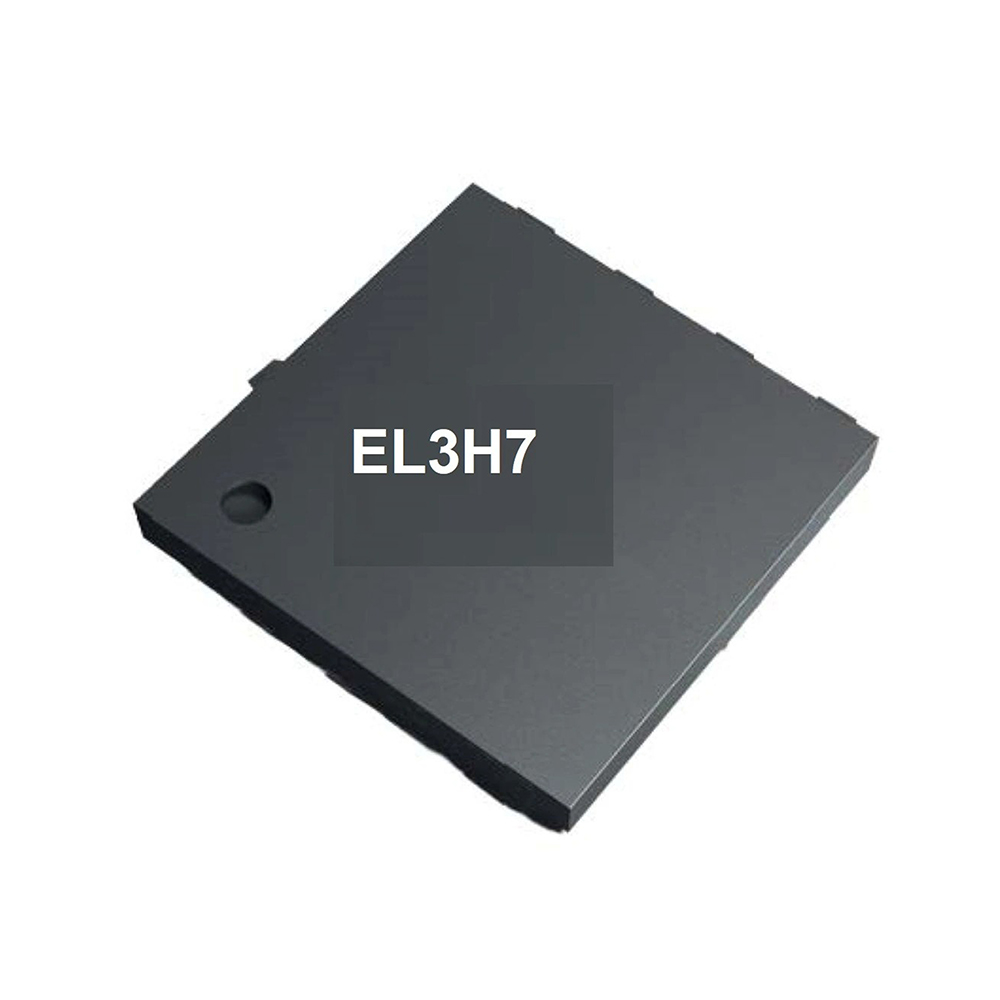

SOP-4_P1.27 PHOTOCOUPLEREL3H7-G Series PIN SSOP PHOTO TRANSISTOR

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: SOP-4_P1.27

  • Parameters

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: SOP-4_P1.27

Basic Info.

Model NO.EL3H7MaterialSilicon
Features1Glass Passivated ChipFeatures2Low Forward Voltage Drop
Features3Ideal for Printed Circuit BoardFeatures4High Surge Current Capability
Transport PackagePlastic PackageOriginGuangdong, China
Production Capacity10000 Pieces/Day


Part Name

PHOTOCOUPLEREL3H7-G Series  PIN SSOP PHOTOTRANSISTOR SOP-4_P1.27


FEATURES

• Halogens free

• Current transfer ratio

(CTR: 50~600% at IF =5mA, VCE =5V)

(CTR: 40~320% at IF =10mA, VCE =5V)

• High isolation voltage between input and output (Viso=3750 V rms )

• Compact 4 Pin SSOP with a 2.0 mm profile

• Pb free and RoHS compliant.

• UL approved (No. E214129)

• VDE approved (No. 132249)

• SEMKO approved

• NEMKO approved

• DEMKO approved

• FIMKO approved

• CSA approved


APPLICATIONS

DC-DC Converters

• Programmable controllers

• Telecommunication equipments

• Signal transmission between circuits of different potentials and impedances
