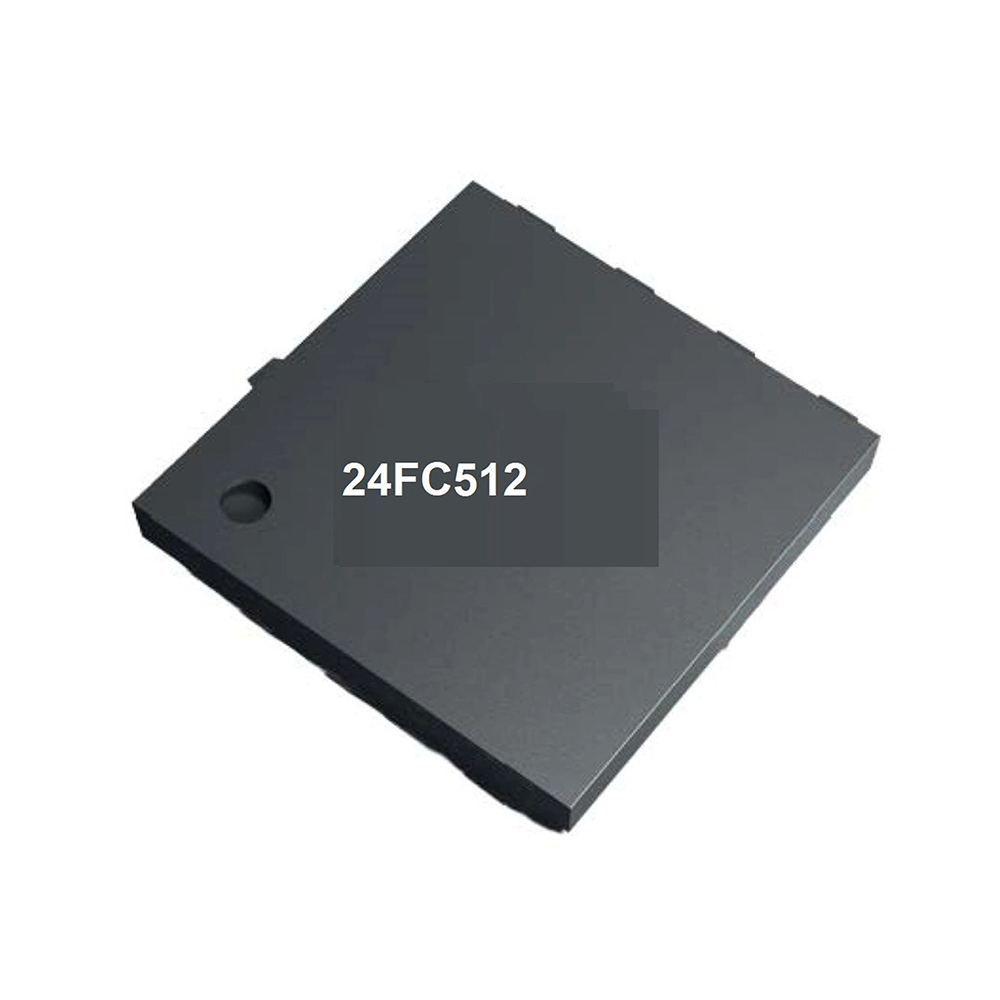

Single Supply with Operation down to 1.7V for 24AA512 and 24FC512 Devices, 2.5V for 24LC512 Devices ICS

    After-sales Service: yes

    Function: Abrasion Resistance, High Temperature Resistance, Anti-Corrosion, Anti-Cold

    Demoulding: Automatic

    Condition: New

    Certification: RoHS, ISO, CE

    Warranty: 24 Months

  • Parameters

    After-sales Service: yes

    Function: Abrasion Resistance, High Temperature Resistance, Anti-Corrosion, Anti-Cold

    Demoulding: Automatic

    Condition: New

    Certification: RoHS, ISO, CE

    Warranty: 24 Months

Basic Info.

Model NO.24FC512Automatic GradeAutomatic
InstallationVerticalDriven TypeElectric
Mould Life<300,000 ShotsApplicationLED Drive Power Supply, Medical Power Supply
Features1Glass Passivated ChipFeatures2Low Forward Voltage Drop
Features3Ideal for Printed Circuit BoardFeatures4High Surge Current Capability
Transport PackagePlastic PackageSpecificationPDIP/SOIJ/SOIC/TSSOP
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day


Product Description

The Microchip Technology Inc. 24AA512/24LC512/24FC512 (24XX512*) is a 64K x 8 (512 Kbit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications and data acquisition.

This device also has a page write capability of up to 128 bytes of data. This device is capable of both random and sequential reads up to the 512K boundary.

Functional address lines allow up to eight devices on the same bus, for up to 4 Mbit address space. This device is available in the standard 8-pin plastic DIP,SOIJ, SOIC, TSSOP, DFN, and 14-lead TSSOP packages. The 24AA512 is also available in the 8-lead Chip Scale package.

FEATURES

Single Supply with Operation down to 1.7V for 24AA512 and 24FC512 Devices, 2.5V for 24LC512 Devices

• Low-Power CMOS Technology:

- Active current 400 uA, typical

- Standby current 100 nA, typical

• 2-Wire Serial Interface, I2C™ Compatible

• Cascadable for up to Eight Devices

• Schmitt Trigger Inputs for Noise Suppression

• Output Slope Control to Eliminate Ground Bounce

• 100 kHz and 400 kHz Clock Compatibility

• Page Write Time 5 ms max.

• Self-Timed Erase/Write Cycle

• 128-Byte Page Write Buffer

• Hardware Write-Protect

• ESD Protection >4000V

• More than 1 Million Erase/Write Cycles

• Data Retention > 200 years

• Packages Include 8-lead PDIP, SOIJ, SOIC,

TSSOP, DFN, Chip Scale and 14-lead TSSOP

• Pb-Free and RoHS Compliant



Single Supply with Operation down to 1.7V for 24AA512 and 24FC512 Devices, 2.5V for 24LC512 Devices ICS
