Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: SOIC-8_150mil
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: SOIC-8_150mil
Basic Info.
Model NO. | KSZ8041NL | Material | Silicon |
Features1 | Glass Passivated Chip | Features2 | Low Forward Voltage Drop |
Features3 | Ideal for Printed Circuit Board | Features4 | High Surge Current Capability |
Transport Package | Plastic Package | Origin | Guangdong, China |
Production Capacity | 10000 Pieces/Day |
Part Name

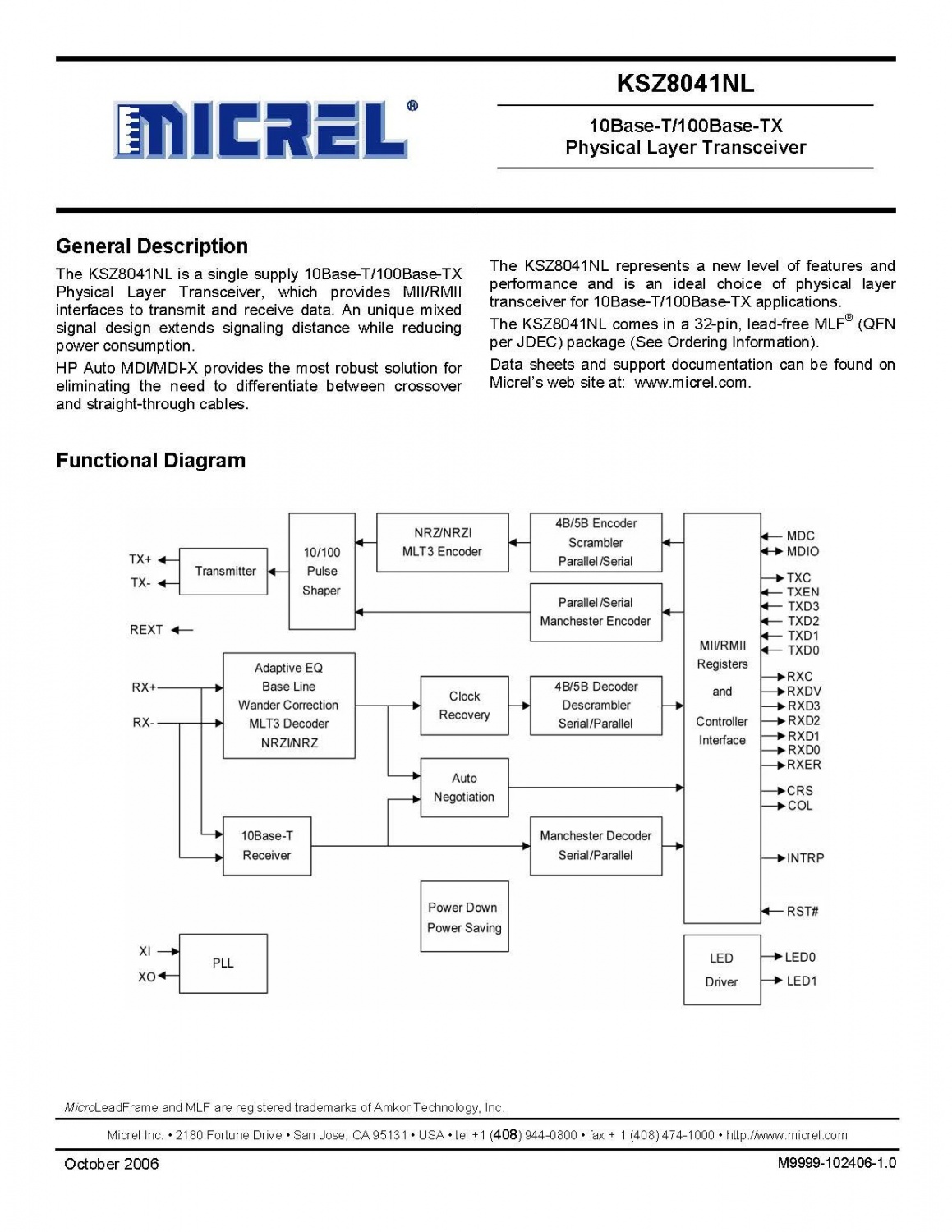

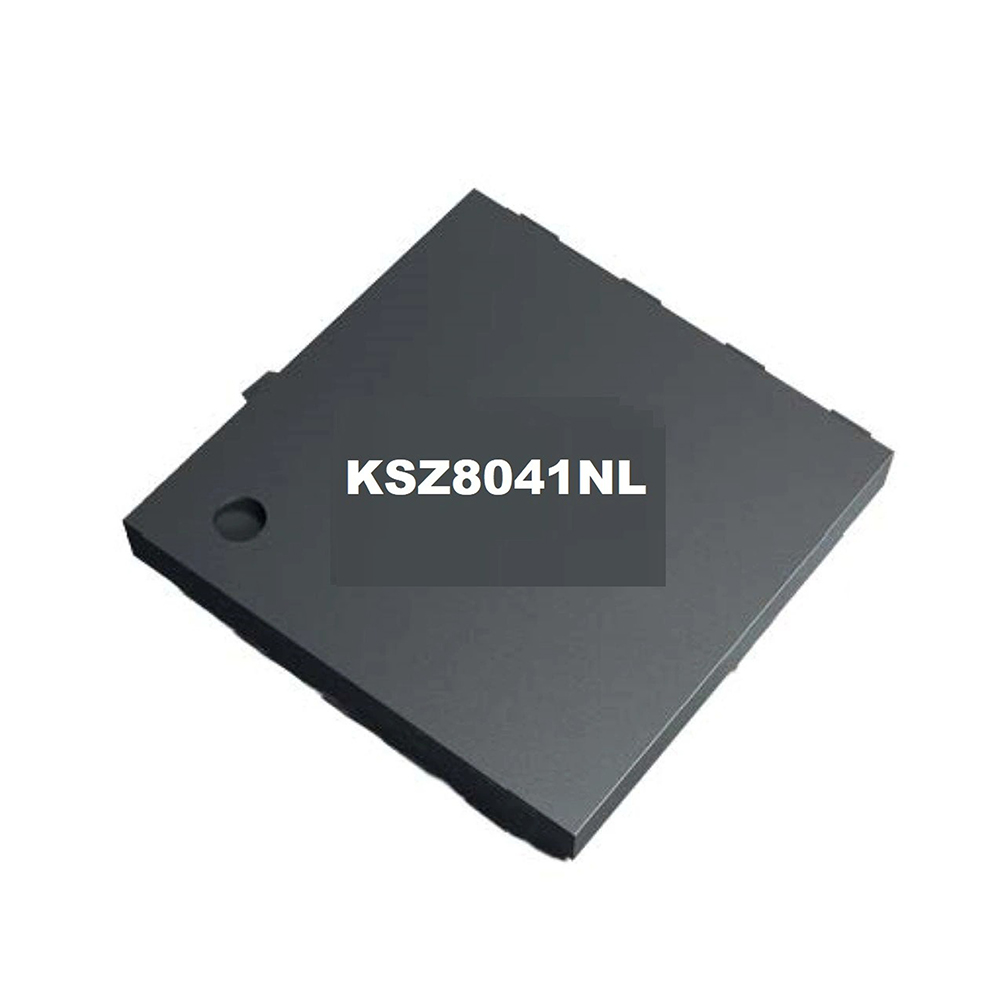

10Base-T/100Base-TX Physical Layer Transceiver KSZ8041NL
The KSZ8041NL is a single supply 10Base-T/100Base-TX
Physical Layer Transceiver, which provides MII/RMII
interfaces to transmit and receive data. An unique mixed
signal design extends signaling distance while reducing
power consumption.
Features
Single-chip 10Base-T/100Base-TX physical layer solution
• Fully compliant to IEEE 802.3u Standard
• Low power CMOS design, power consumption of<180mW
• HP auto MDI/MDI-X for reliable detection and
correction for straight-through and crossover cables with disable and enable option
• Robust operation over standard cables
• Power down and power saving modes
• MII interface support
• RMII interface support with external 50MHz system clock
• MIIM (MDC/MDIO) management bus for PHY register configuration
• Interrupt pin option
• Programmable LED outputs for link, activity and speed
• ESD rating (6kV)
• Single power supply (3.3V)
• Built-in 1.8V regulator for core
• Available in 32-pin (5mm x 5mm) MLF® package
APPLICATIONS
• LOM
• Game Console
• IPTV
• IP Phone
• IP Set-top Box
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
