KEELOQ® Code Hopping Encoder HCS201

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

  • Parameters

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

Basic Info.

Model NO.HCS201SpecificationPDIP, SOIC
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day


Product Description

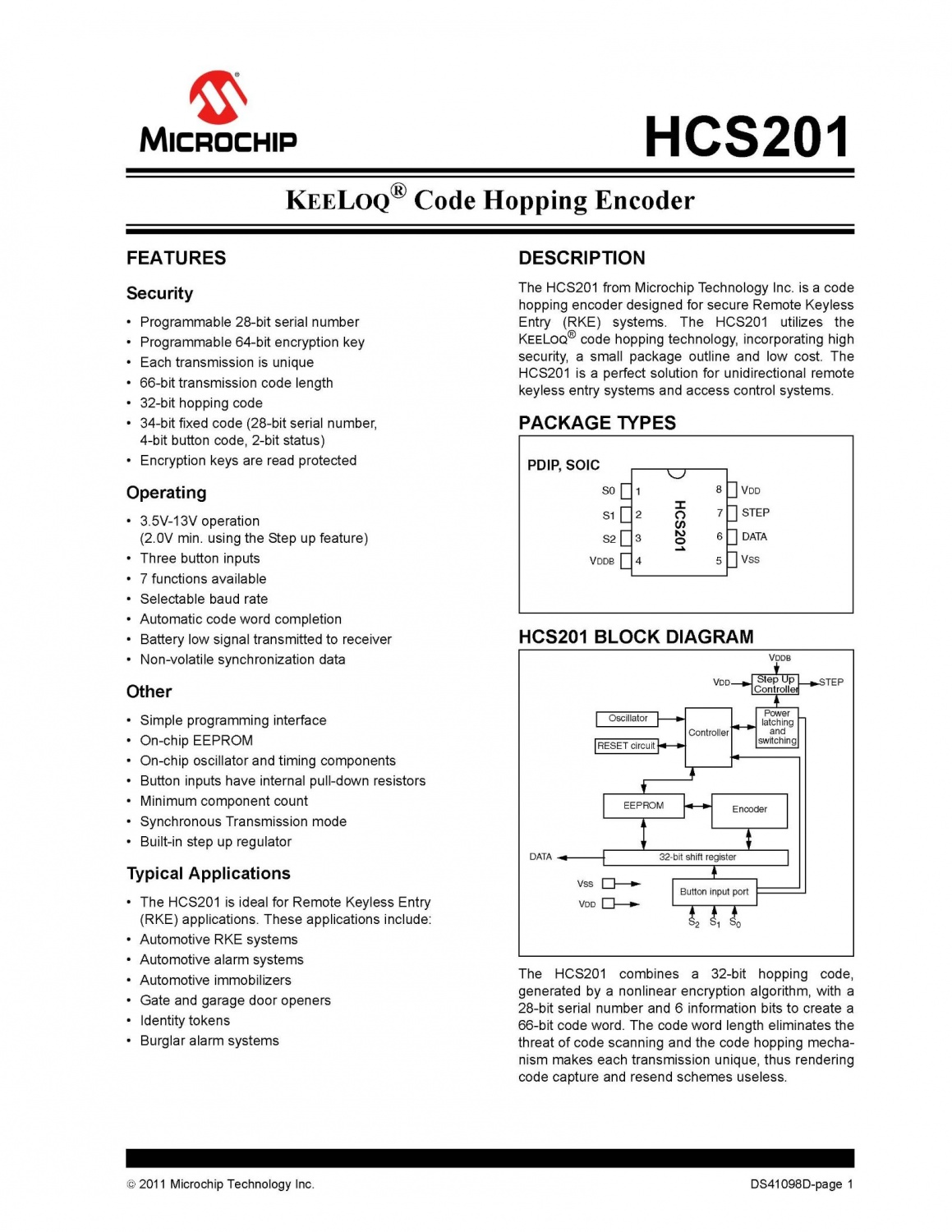

The HCS201 from Microchip Technology Inc. is a code

hopping encoder designed for secure Remote Keyless

Entry (RKE) systems. The HCS201 utilizes the

KEELOQ® code hopping technology, incorporating high

security, a small package outline and low cost. The

HCS201 is a perfect solution for unidirectional remote

keyless entry systems and access control systems.

Features

Security

• Programmable 28-bit serial number

• Programmable 64-bit encryption key

• Each transmission is unique

• 66-bit transmission code length

• 32-bit hopping code

• 34-bit fixed code (28-bit serial number,

4-bit button code, 2-bit status)

• Encryption keys are read protected


Operating

• 3.5V-13V operation

(2.0V min. using the Step up feature)

• Three button inputs

• 7 functions available

• Selectable baud rate

• Automatic code word completion

• Battery low signal transmitted to receiver

• Non-volatile synchronization data


Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.

The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.

The company's core product lines include:

1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;

2. Low voltage MOS; super junction MOS

3. SIC diode; SIC MOSFET

Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
