10BASE-T/100BASE-TX Physical LayerTransceiver
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: SOIC-8_150mil
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: SOIC-8_150mil
Basic Info.
| Model NO. | KSZ8061MNX/MNG | Material | Silicon |
| Features1 | Glass Passivated Chip | Features2 | Low Forward Voltage Drop |
| Features3 | Ideal for Printed Circuit Board | Features4 | High Surge Current Capability |
| Transport Package | Plastic Package | Origin | Guangdong, China |
| Production Capacity | 10000 Pieces/Day |
Part Name

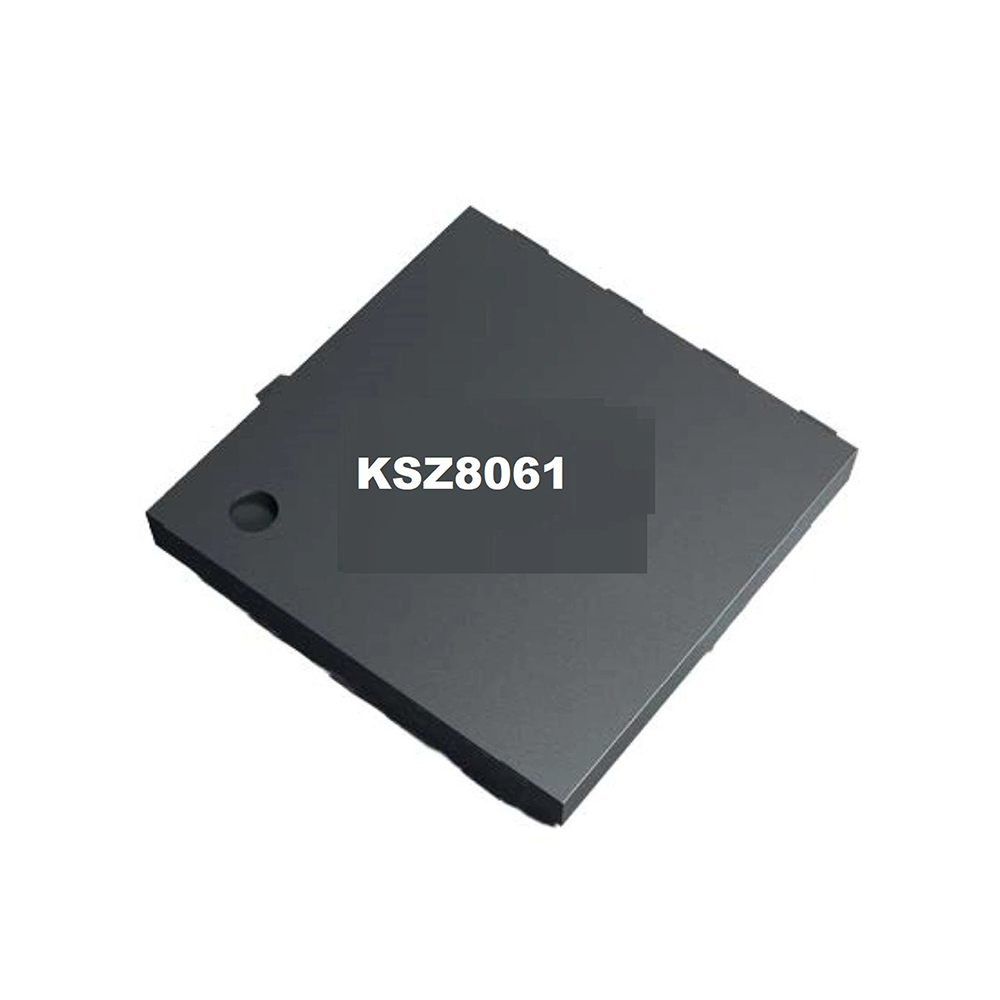

10BASE-T/100BASE-TX Physical Layer Transceiver KSZ8061MNX/MNG
Highlights
• Single-Chip Ethernet Physical Layer Transceiver (PHY)
• Quiet-Wire® technology to reduce line emissions and enhance immunity
• Ultra-Deep Sleep standby mode
• AEC-Q100 Grade 2 Automotive
Features
• Quiet-Wire programmable EMI filter
• MII interface with MDC/MDIO management interface for register configuration
• On-chip termination resistors for the differential pairs
• LinkMD®+ receive signal quality indicator
• Fast start-up and link
• Ultra-Deep Sleep standby mode: CPU or signal detect activated
• Loopback modes for diagnostics
• Programmable interrupt output
APPLICATIONS
• Industrial control
• Vehicle on-board diagnostics (OBD)
• Automotive gateways
• Camera and sensor networking
• Infotainment
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
