with Variable VoltageULPI and Selectable Reference Frequency Automotive USB Transceiver
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
- Parameters
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Basic Info.
| Model NO. | USB83340 | Specification | 28-pin QFN 28-pin SOIC |
| Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Part Name

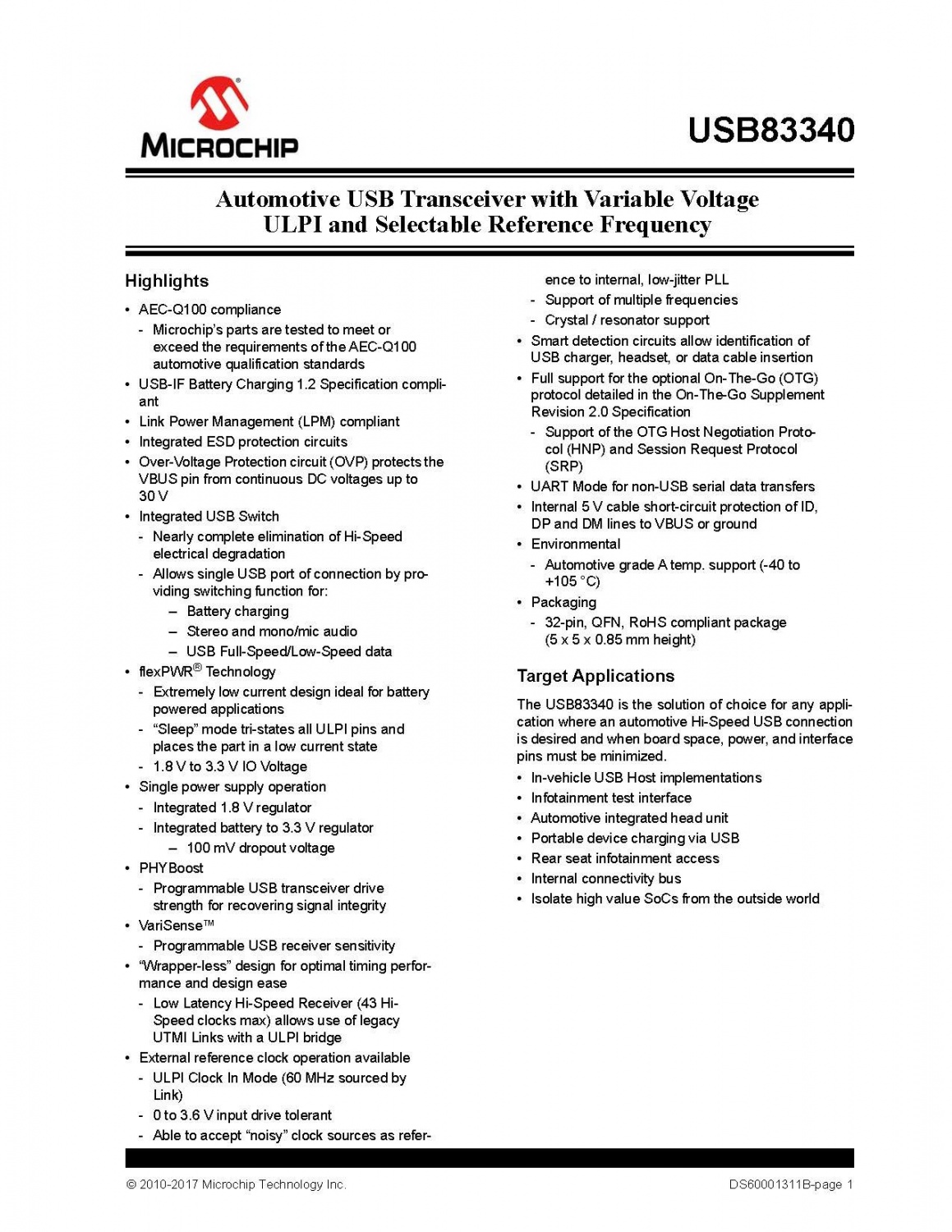

with Variable VoltageULPI and Selectable Reference Frequency Automotive USB Transceiver USB83340
Highlights
• AEC-Q100 compliance
- Microchip's parts are tested to meet orexceed the requirements of the AEC-Q100 automotive qualification standards
• USB-IF Battery Charging 1.2 Specification compliant
• Link Power Management (LPM) compliant
• Integrated ESD protection circuits
• Over-Voltage Protection circuit (OVP) protects the VBUS pin from continuous DC voltages up to 30 V
• Integrated USB Switch
- Nearly complete elimination of Hi-Speed electrical degradation
- Allows single USB port of connection by providing switching function for:
- Battery charging
- Stereo and mono/mic audio
- USB Full-Speed/Low-Speed data
Applications
The USB83340 is the solution of choice for any application
where an automotive Hi-Speed USB connection
is desired and when board space, power, and interface
pins must be minimized.
• In-vehicle USB Host implementations
• Infotainment test interface
• Automotive integrated head unit
• Portable device charging via USB
• Rear seat infotainment access
• Internal connectivity bus
• Isolate high value SoCs from the outside world
