USB5744 4-Port SSHS USB Controller Hub

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

  • Parameters

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

Basic Info.

Model NO.USB5744Specification28-pin QFN 28-pin SOIC
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day


Part Name

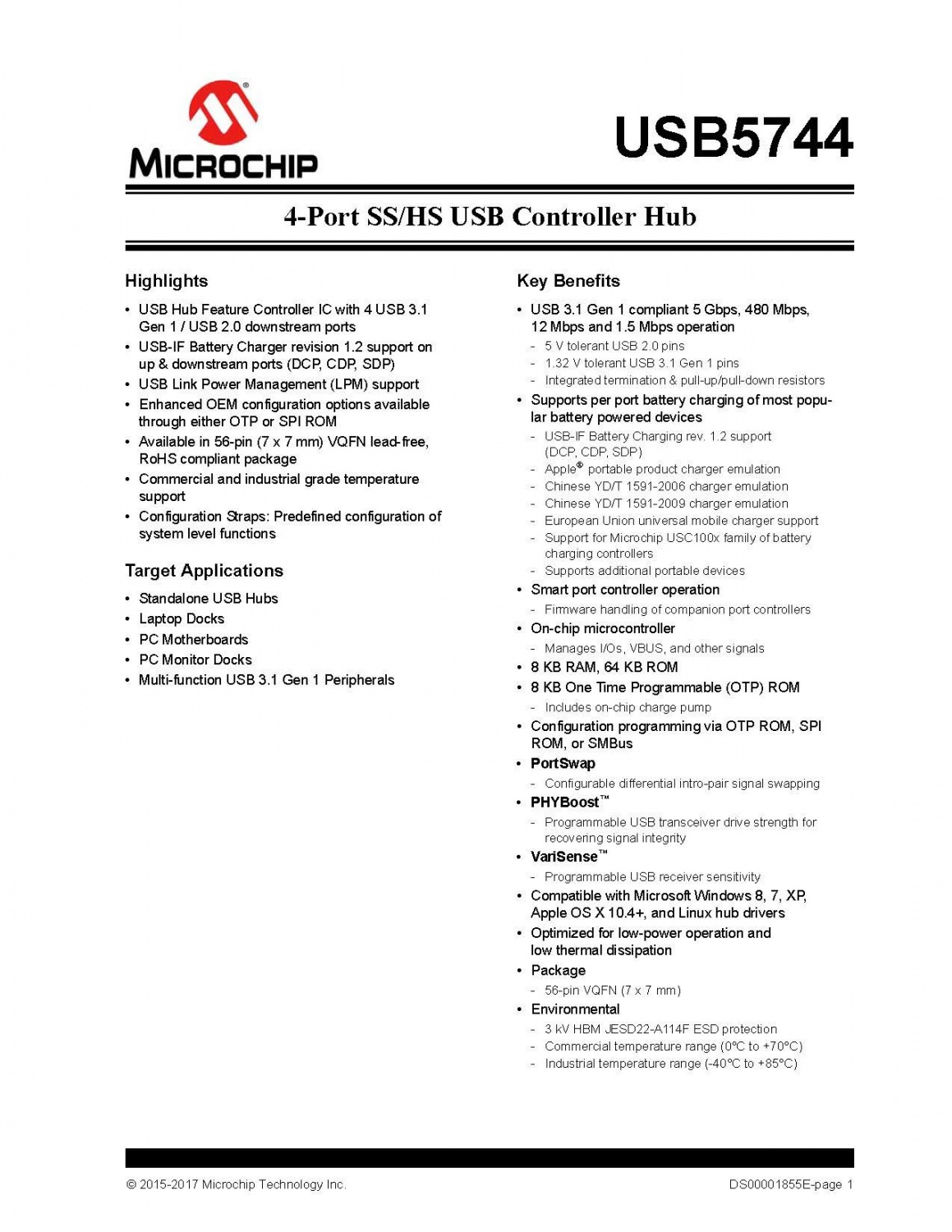

USB5744 4-Port SS/HS USB Controller Hub


Highlights

• USB Hub Feature Controller IC with 4 USB 3.1 Gen 1 / USB 2.0 downstream ports

• USB-IF Battery Charger revision 1.2 support on up & downstream ports (DCP, CDP, SDP)

• USB Link Power Management (LPM) support

• Enhanced OEM configuration options available through either OTP or SPI ROM

• Available in 56-pin (7 x 7 mm) VQFN lead-free,RoHS compliant package

• Commercial and industrial grade temperature support

• Configuration Straps: Predefined configuration of system level functions

Applications

•Standalone USB Hubs

• Laptop Docks

• PC Motherboards

• PC Monitor Docks

• Multi-function USB 3.1 Gen 1 Peripherals



Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.

The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.

The company's core product lines include:

1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;

2. Low voltage MOS; super junction MOS

3. SIC diode; SIC MOSFET

Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
