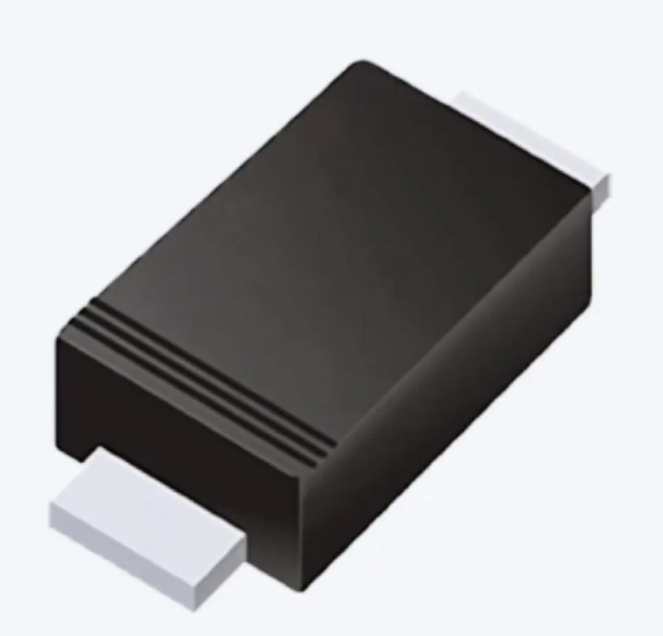

Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 VForward Current - 5.0A SS54
| Customization: | Available |
|---|---|
| Encapsulation Structure: | SMA |
| Application: | LED Drive Power Supply, Medical Power Supply |
- Parameters
| Customization: | Available |
|---|---|
| Encapsulation Structure: | SMA |
| Application: | LED Drive Power Supply, Medical Power Supply |
Model NO.
SS54 SMA
Certification
RoHS, CE, ISO, CCC
Luminous Intensity
Standard
Color
Black
Structure
Planar
Material
Silicon
Features1
For surface mounted applications
Features2
Low power loss, high efficiency
Features3
High forward surge current capability
Features4
For use in low voltage, high frequency inverters
Transport Package
Plastic Package
Trademark
Merry
Origin
Guangdong, China
Production Capacity
10000pieces/Day
Part Name:
Surface Mount Schottky Barrier Rectifier
Features:
• Metal silicon junction, majority carrier conduction
• For surface mounted applications
• Low power loss, high efficiency
• High forward surge current capability
• For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
MECHANICAL DATA:
• Case: SMA
• Terminals: Solderable per MIL-STD-750, Method 2026
• Approx. Weight: 60mg / 0.0021oz
