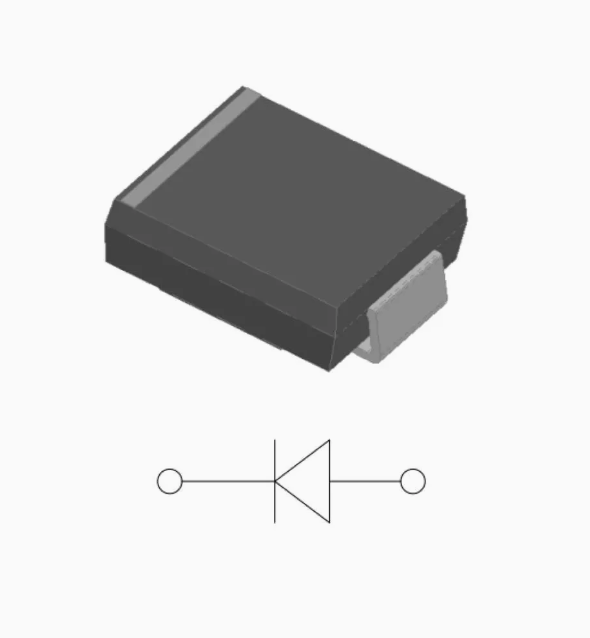

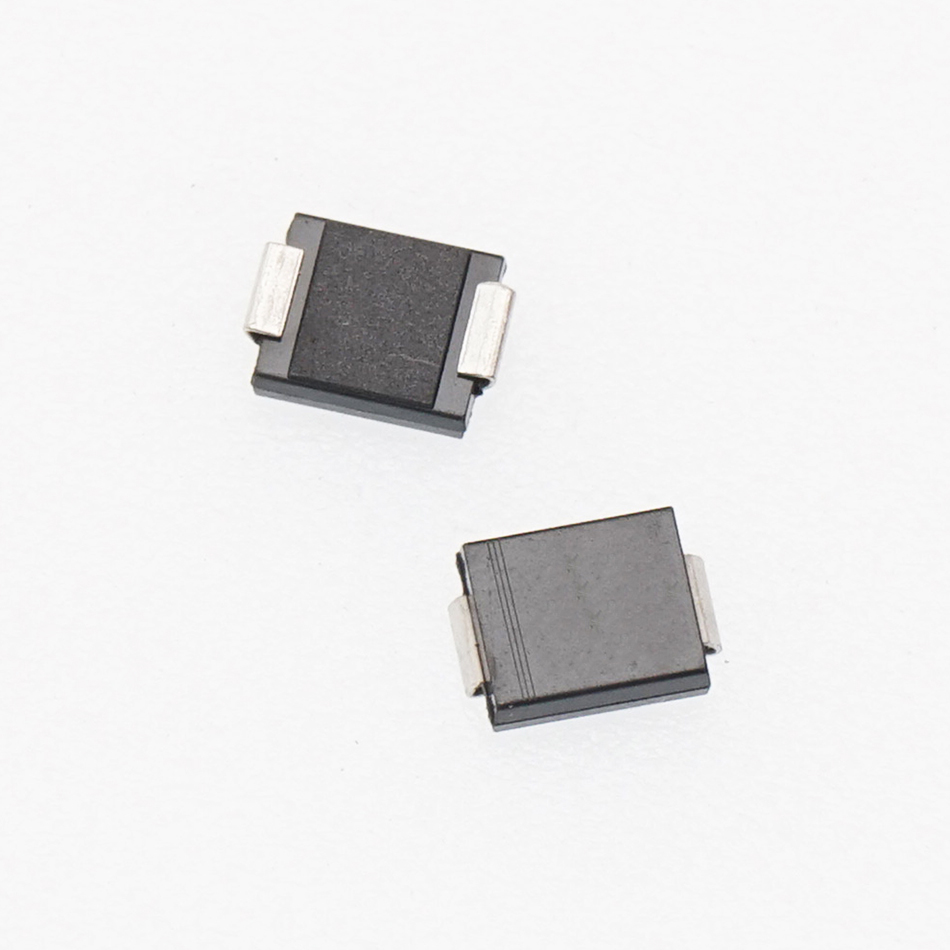

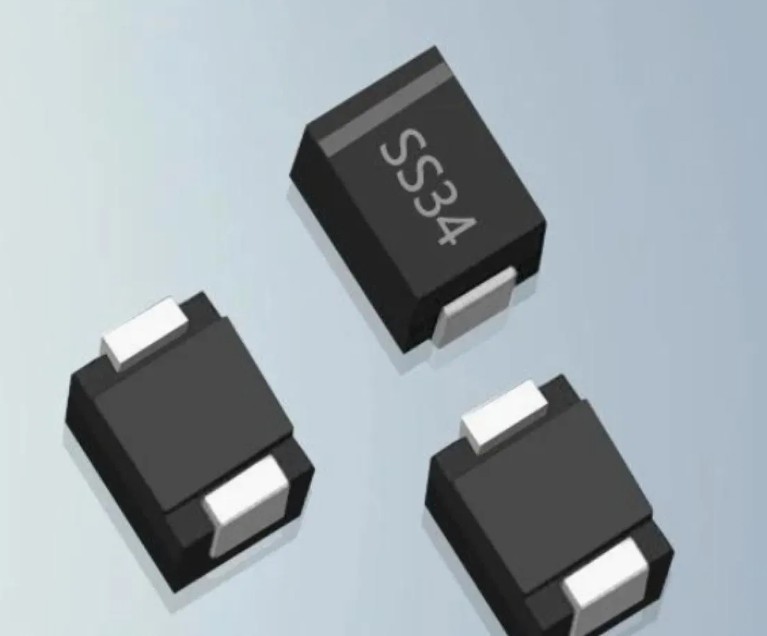

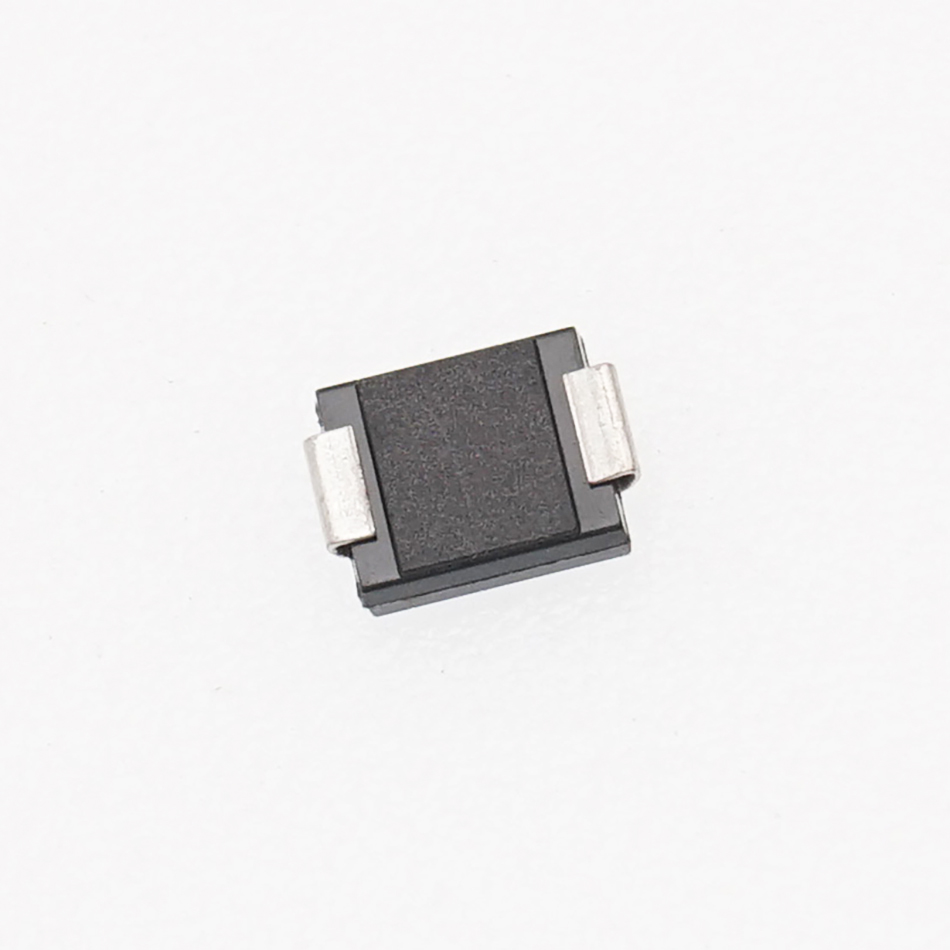

Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 VForward Current - 3.0A SS34

Graphic
Detail

Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 VForward Current - 3.0A SS34

Customization:	Available
Encapsulation Structure:	Plastic Sealed Transistor
Application:	low voltage, high frequency inverters

Parameters

Customization:	Available
Encapsulation Structure:	Plastic Sealed Transistor
Application:	low voltage, high frequency inverters

Product Detail

Model NO.

SS34

Certification

RoHS, CE, ISO, CCC

Luminous Intensity

Standard

Color

Black

Structure

SMAF

Material

Silicon

Features1

Metal silicon junction

Features2

For surface mounted applications

Features3

Low power loss, high efficiency

Features4

High forward surge current capability

Transport Package

Plastic Package

Trademark

Merry

Origin

Guangdong, China

Production Capacity

10000pieces/Day

Product Description

Surface Mount Schottky Rectifier

FEATURES :

Guardring for overvoltage protection
Low power losses
Extremely fast switching
High forward surge capability
High frequency operation
Solder dip 260 °C max. 10s, per JESD 22-B106

Typical Applications :

For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

Mechanical Data :

Package: DO-214AB(SMC)
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
Polarity: Color band denotes the cathode end
