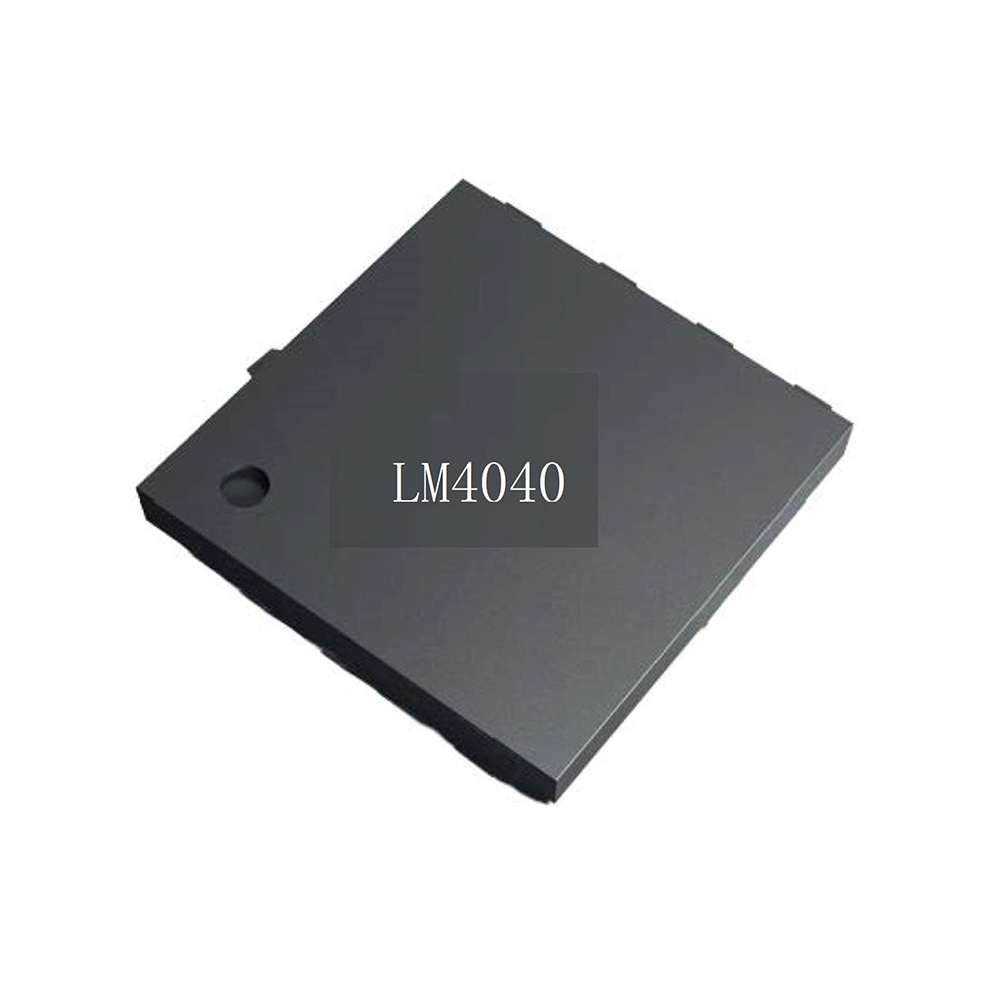

PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

  • Parameters

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

Basic Info.

Model NO.LM4040SpecificationMSOP-8
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day


Part Name

PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE LM4040 IC


FEATURES

DBZ (SOT-23) PACKAGE

DCK (SC-70) PACKAGE

LP (TO-92/TO-226) PACKAGE

Features

Fixed Output Voltages of 2.048 V, 2.5 V, 3 V,

4.096 V, 5 V, and 10 V

. Tight Output Tolerances and Low

Temperature Coefficient

- Max 0.1%, 100 ppm/°C - A Grade

- Max 0.2%, 100 ppm/°C - B Grade

- Max 0.5%, 100 ppm/°C - C Grade

- Max 1.0%, 150 ppm/°C - D Grade

. Low Output Noise¼35 mVRMS Typ

. Wide Operating Current Range¼45 mA Typ to

15 mA

. Stable With All Capacitive Loads; No Output

Capacitor Required

. Available in Extended Temperature

Range¼-40°C to 125°C


APPLICATIONS

. Data-Acquisition Systems

. Power Supplies and Power-Supply Monitors

. Instrumentation and Test Equipment

. Process Controls

. Precision Audio

. Automotive Electronics

. Energy Management

. Battery-Powered Equipment



Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.

The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.

The company's core product lines include:

1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;

2. Low voltage MOS; super junction MOS

3. SIC diode; SIC MOSFET

Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
