Lonten N-channel 500V, 13A Power MOSFET Fetures Applications Diode planar VDMOS technology. Lonten-LND13N50
| Customization: | Available |
|---|---|
| Encapsulation Structure: | TO-220F |
| Application: | Electronic ballast, UPS |
- Parameters
| Customization: | Available |
|---|---|
| Encapsulation Structure: | TO-220F |
| Application: | Electronic ballast, UPS |
Model NO.
Lonten-LND13N50
Certification
RoHS, CE, ISO, CCC
Luminous Intensity
Standard
Structure
Planar
Material
Silicon
Features1
Extremely Low Switching Loss
Features2
Excellent Stability and Uniformity
Features3
100% Avalanche Tested
Features4
Built-in ESD Diode
Application1
Switch Mode Power Supply (SMPS)
Application2
Power Factor Correction (Pfc)
Application3
Uninterruptible Power Supply (UPS)
Application4
AC to DC Converters
Application5
Telecom
Application6
TV Power & LED Lighting Power
Transport Package
Plastic Package
Specification
Customized
Trademark
Lonten
Origin
Guangdong, China
Production Capacity
10000 Pieces/Day
Product Description

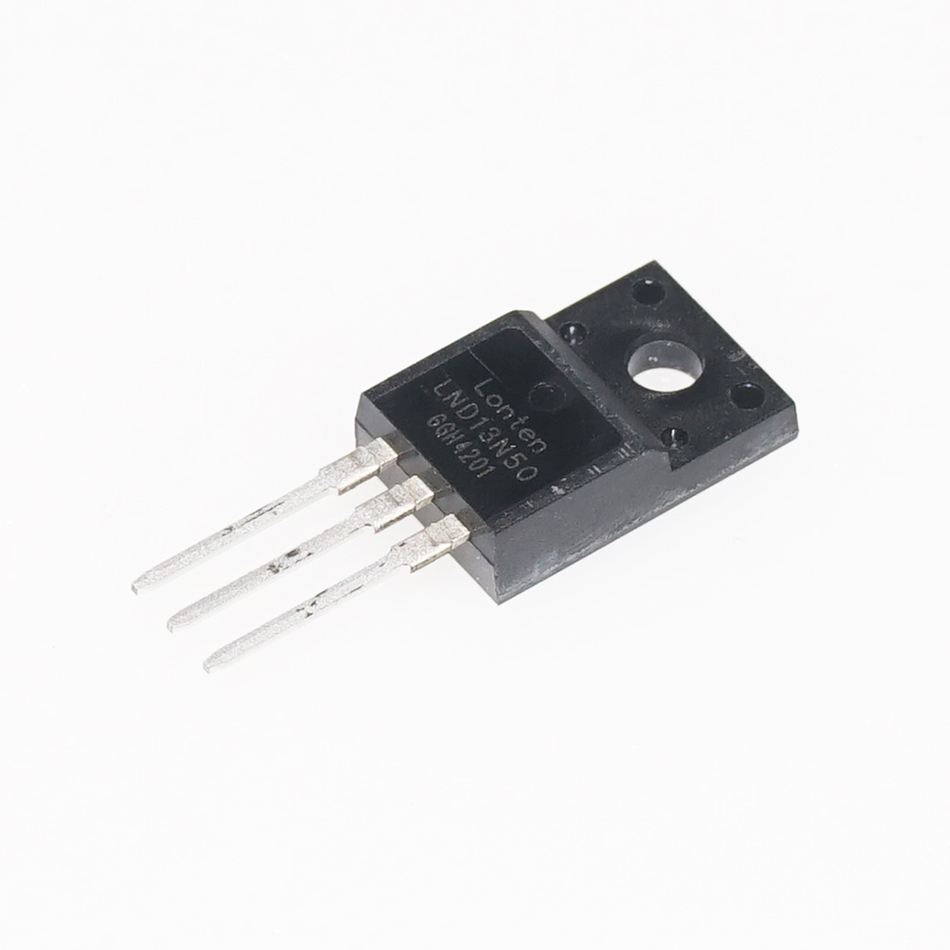

Lonten N-channel 500V, 13A Power MOSFET Fetures Applications Diode planar VDMOS technology. Lonten-LND13N50
Lonten-LND13N50
General Description :
The Power MOSFET is fabricated using the advanced planar VDMOS technology. The resulting device has low conduction resistance, superior switching performance and high avalanche energy.
Features :
• Low RDS(on)
• Low gate charge (typ. Qg = 33nC)
• 100% UIS tested
• RoHS compliant
Applications :
• Electronic ballast.
• Switched mode power supplies (SMPS).
• UPS.
Technical Data :
| Packages | TO-220F |
| Technology | Planar |
| VDS(V) | 500 |
| ID(A) | 13 |
| PD (W) 25ºC | 50 |
| VGS(V) | 30 |
| VGS(th)Typ(V) | 3 |
| RDS(on)Typ(Ω) | 0.370 |
| RDS(on)Max(Ω) | 0.460 |
