650V 0.028Ω Super Junction Power MOSFET, ID: 99A, VGS: 30V, TO-247, WMJ90N65SR
| Customization: | Available |
|---|---|
| Certification: | RoHS, CE, ISO, CCC |
| Shape: | TO-247 |
- Parameters
| Customization: | Available |
|---|---|
| Certification: | RoHS, CE, ISO, CCC |
| Shape: | TO-247 |
Model NO.
WMJ90N65SR
Function
Switch Transistor
Encapsulation Structure
TO-247
Power Level
High Power
Material
Silicon
Features1
Extremely Low Switching Loss
Features2
Excellent Stability and Uniformity
Features3
100% Avalanche Tested
Features4
Built-in ESD Diode
Application1
Switch Mode Power Supply (SMPS)
Application2
Power Factor Correction (Pfc)
Application3
Uninterruptible Power Supply (UPS)
Application4
AC to DC Converters
Application5
Telecom
Application6
TV Power & LED Lighting Power
Transport Package
Plastic Package
Specification
Customized
Trademark
MR
Origin
Guangdong, China
HS Code
85412900
Production Capacity
10000 Pieces/Day
Packaging & Delivery
Package Size
37.00cm * 37.00cm * 25.00cm
Package Gross Weight
5.000kg
Product Description

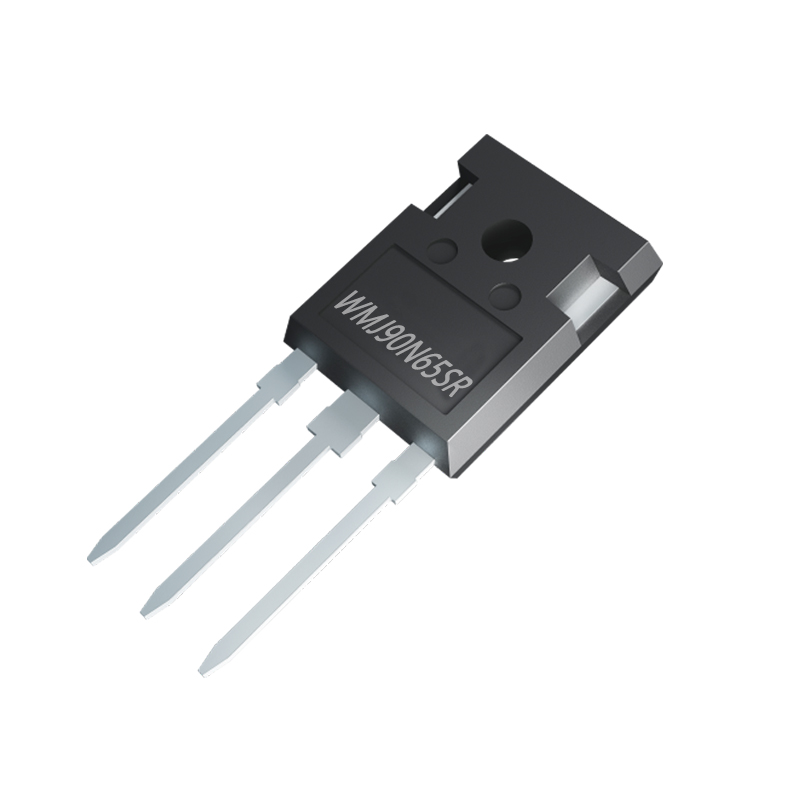

650V 0.028Ω Super Junction Power MOSFET, ID: 99A, VGS: 30V, TO-247, WMJ90N65SR
- Part No.:WMJ90N65SR
- Description:N-Channel SJ-MOS SR

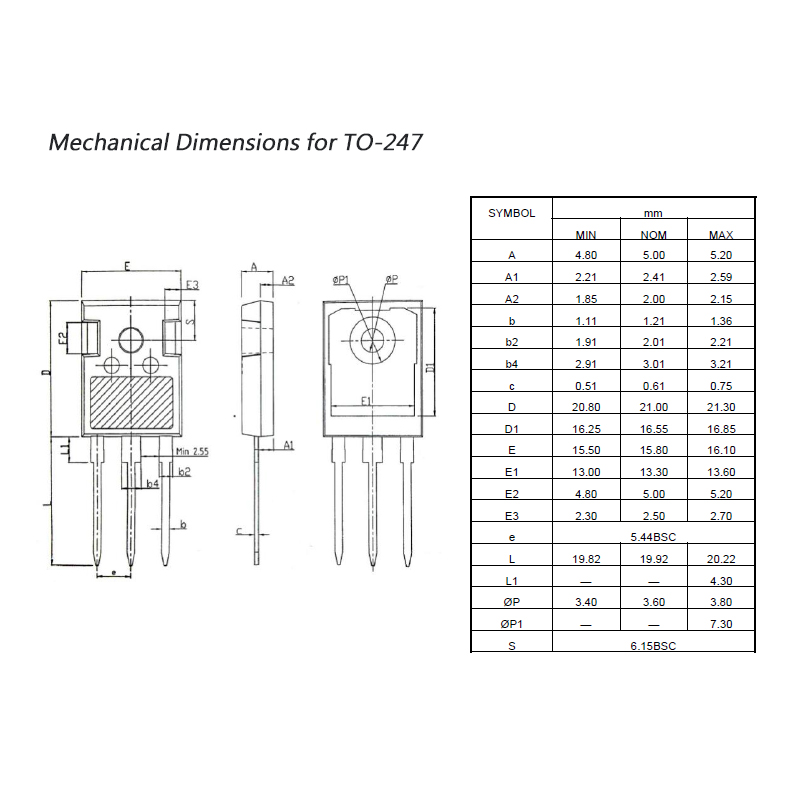

- Package:TO-247
- VDS (V):650
- RDS(on) (Ω) @VGS=10V(max.):0.033
- ID (A) @TA=25ºC:99
- PD (W) @TA=25ºC:460
- VGS (V):30
- VGS(th) (V) (Typ.):3.5
Features :
- VDS = 700V@Tjmax
- Typ. RDS(on)=0.028Ω
- Fast body diode
- Pb-free plating, Halogen free
Applications :
- LED Lighting, Charger, Adapter, PC, LCD TV, Server
