Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Basic Info.
Model NO. | LAN9514/LAN9514i | Specification | 28-pin QFN 28-pin SOIC |
Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Part Name

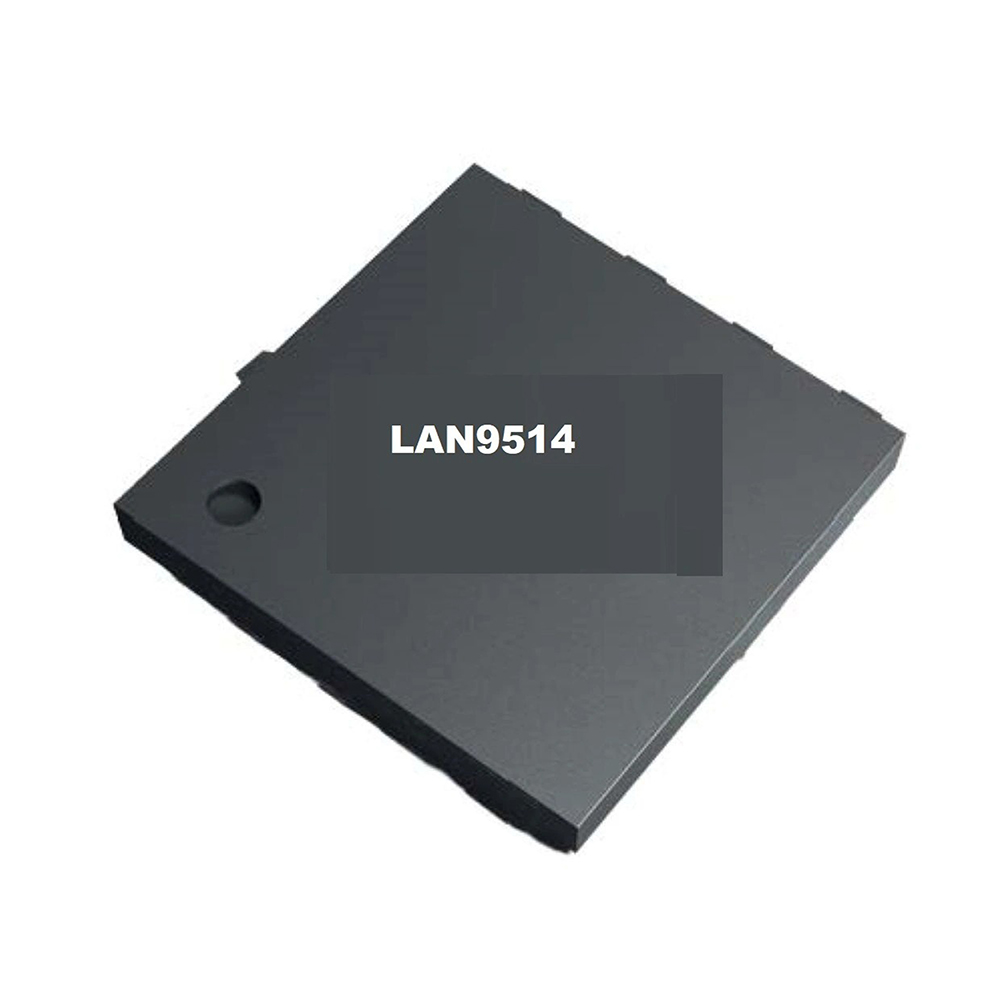

LAN9514/LAN9514i High-Performance USB 2.0 Hub and 10/100 Ethernet Controller
Features
High-Performance 10/100 Ethernet Controller
- Fully compliant with IEEE802.3/802.3u
- Integrated Ethernet MAC and PHY
- 10BASE-T and 100BASE-TX support
- Full- and half-duplex support with flow control
- Preamble generation and removal
- Automatic 32-bit CRC generation and checking
- Automatic payload padding and pad removal
- Loop-back modes
- TCP/UDP checksum offload support
- Flexible address filtering modes
- One 48-bit perfect address
- 64 hash-filtered multicast addresses
- Pass all multicast
- Promiscuous mode
- Inverse filtering
- Pass all incoming with status report
- Wakeup packet support
- Integrated Ethernet PHY
- Auto-negotiation, HP Auto-MDIX
- Automatic polarity detection and correction
- Energy Detect
Target Applications
• Desktop PCs
• Notebook PCs
• Printers
• Game Consoles
• Embedded Systems
• Docking Stations
