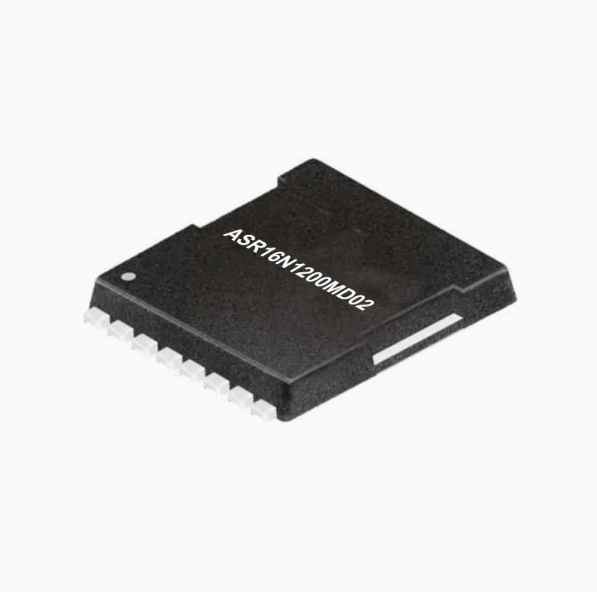

1200V N-Channel MOSFET, 16mΩ/100A/18V, TOLL ASR16N1200MD02
| Customization: | Available |
|---|---|
| Certification: | RoHS |
| Function: | Switch Transistor |
- Parameters
| Customization: | Available |
|---|---|
| Certification: | RoHS |
| Function: | Switch Transistor |
Model NO.
ASR16N1200MD02
Encapsulation Structure
TOLL
Material
Silicon
Features1
Extremely Low Switching Loss
Features2
Excellent Stability and Uniformity
Features3
100% Avalanche Tested
Features4
Built-in ESD Diode
Application1
Switch Mode Power Supply (SMPS)
Application2
Power Factor Correction (Pfc)
Application3
Uninterruptible Power Supply (UPS)
Application4
AC to DC Converters
Application5
Telecom
Application6
TV Power & LED Lighting Power
Transport Package
Plastic Package
Specification
Customized
Trademark
MR
Origin
Guangdong, China
Production Capacity
10000 Pieces/Day
Product Description
1200V N-Channel MOSFET, 16mΩ/100A/18V, TOLL ASR16N1200MD02
Silicon Carbide (SiC) MOSFET use a completely new technology that provide superior switching performance and higher reliability compared to Silicon. In addition, the low ON resistance and compact chip size ensure low capacitance and gate charge. Consequently, system benefits include highest efficiency, faster operating frequency, increased power density, reduced EMI, and reduced system size.
Features :
- High Speed Switching with Low Capacitances
- High Blocking Voltage with Low RDS(on)
- Optimized package with separate driver source pin
- Easy to parallel and simple to drive
- ROHS Compliant, Halogen free
Applications :
- EV motor drive
- High Voltage DC/DC Converters
- Switch Mode Power Supplies
- Solar inverters
- EV charging
