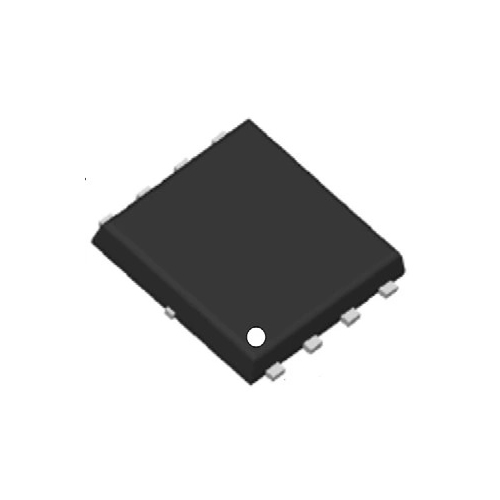

WMQ50P03T1 PDFN3030-8L 30V P-Channel Enhancement Mode Power MOSFET
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
- Parameters
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Basic Info.
| Model NO. | WMQ50P03T1 | Specification | PDFN3030-8L |
| Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Product Description
Part Name
WMQ50P03T1 PDFN3030-8L 30V P-Channel Enhancement Mode Power MOSFET
Features
VDS= -30V, ID = -50A
RDS(on) < 9mΩ @ VGS = -10V
RDS(on) < 14mΩ @ VGS = -4.5V
Green Device Available
Low Gate Charge
Advanced High Cell Density Trench Technology
100% EAS Guaranteed
Application
Power Management Switches
Battery Protection Application
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
