DZ09238-F04
类 型：双滚珠
风 量：90.57~123.50CFM
尺 寸：80x80x38mm
额定电压：12V
重 量：153.0g
DZ08038-F06
类 型：双滚珠
风 量：90.57~123.50CFM
尺 寸：80x80x38mm
额定电压：12V
重 量：153.0g
DZ12038-F05
类 型：双滚珠
风 量：90.57~123.50CFM
尺 寸：80x80x38mm
额定电压：12V
重 量：153.0g
DA04056-F01
类 型：双滚珠
风 量：90.57~123.50CFM
尺 寸：80x80x38mm
额定电压：12V
重 量：153.0g

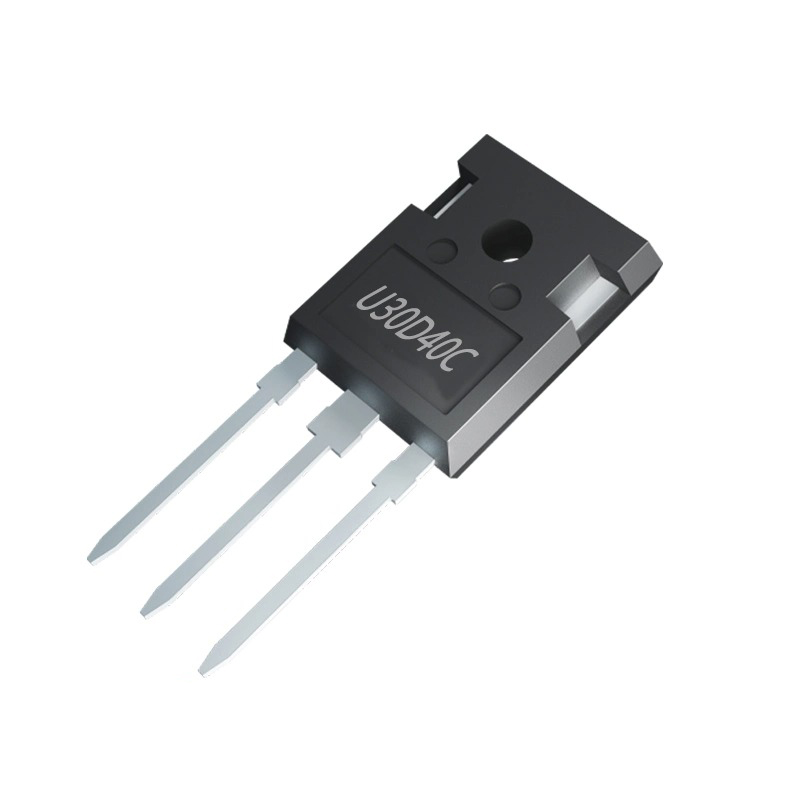

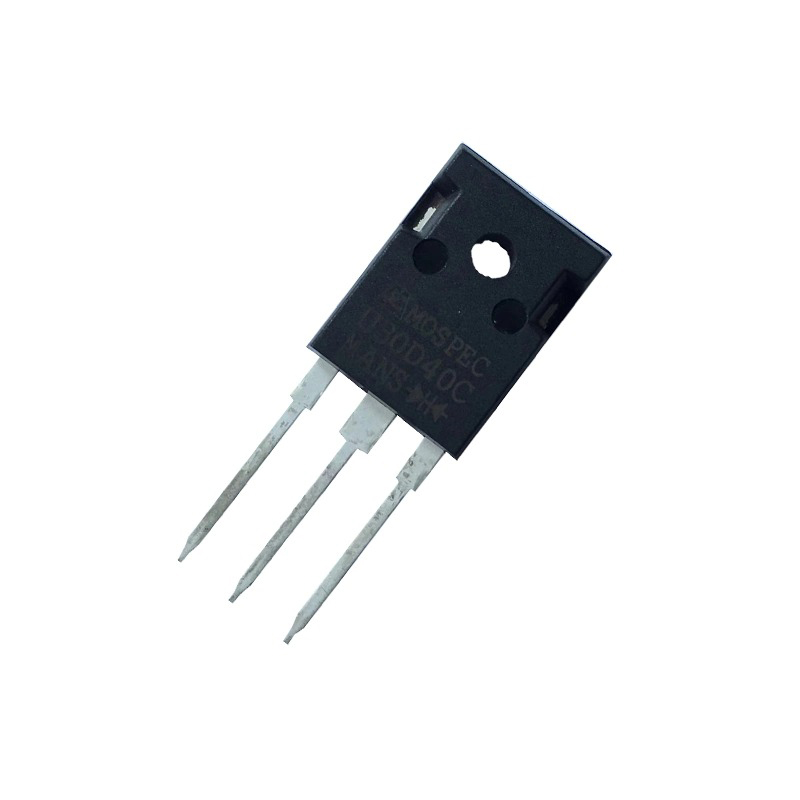

U30D40C 30A 300-600V TO-247 (3P) Ultra-Fast Recovery Rectifier
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: TO-247
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: TO-247
Basic Info.
| Model NO. | U30D40C | Material | Silicon |
| Features1 | High Surge Capacity | Features2 | Low Power Loss, High Efficiency |
| Features3 | Glass Passivated Chip Junctions | Features4 | 150ºC Operating Junction Temperature |
| Features5 | Low Stored Charge Majority Carrier Conduction | Features6 | Low Forward Voltage, High Current Capabilit |
| Features7 | High-Switching Speed 50 Nanosecond Recovery Time | Features8 | Plastic Material Used Carries Underwriters Laborat |
| Transport Package | Plastic Package | Specification | U30D40C |
| Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Part Name
Ultra-Fast Recovery Rectifier 30A 400V TO-247(3P) U30D40C
Features
1.High Surge Capacity
2.Low Power Loss, High efficiency
3.Glass Passivated chip junctions
4.150ºC Operating Junction Temperature
5.Low Stored Charge Majority Carrier Conduction
6.Low Forward Voltage , High Current Capability
7.High-Switching Speed 50 Nanosecond Recovery Time
8.Plastic Material used Carries Underwriters Laboratory
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
