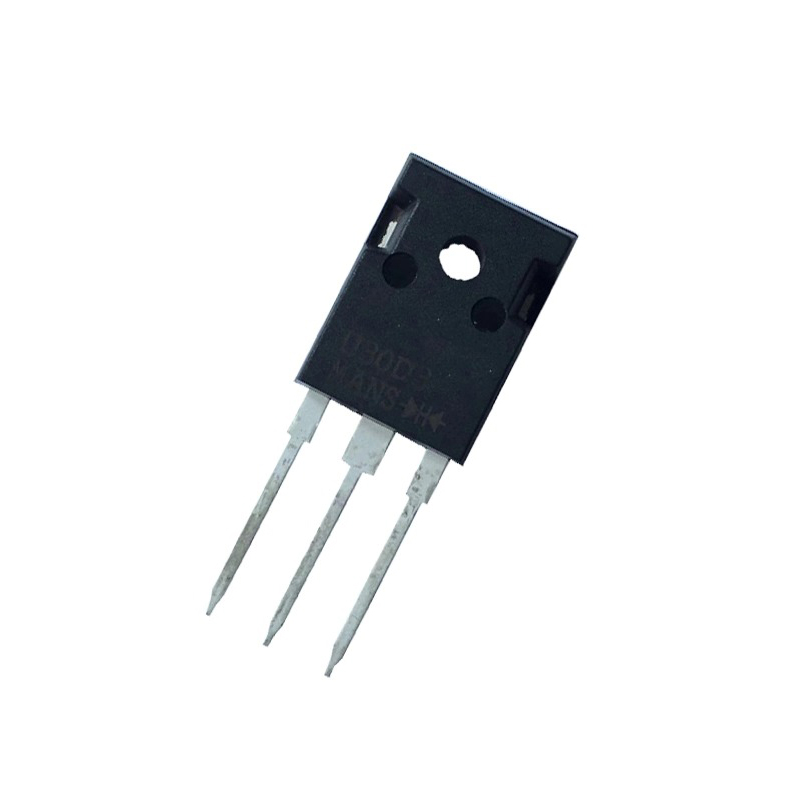

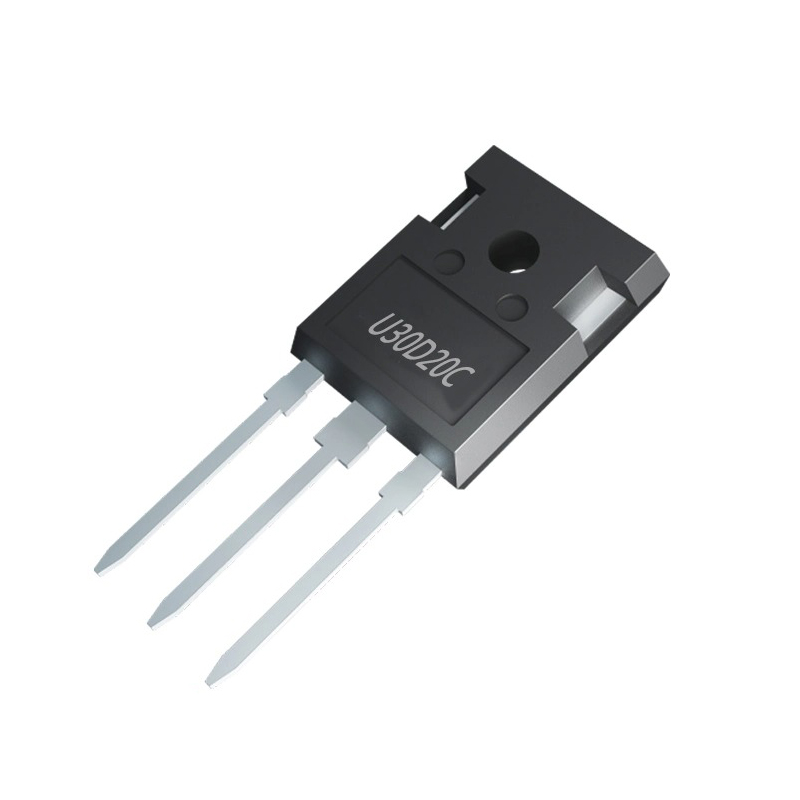

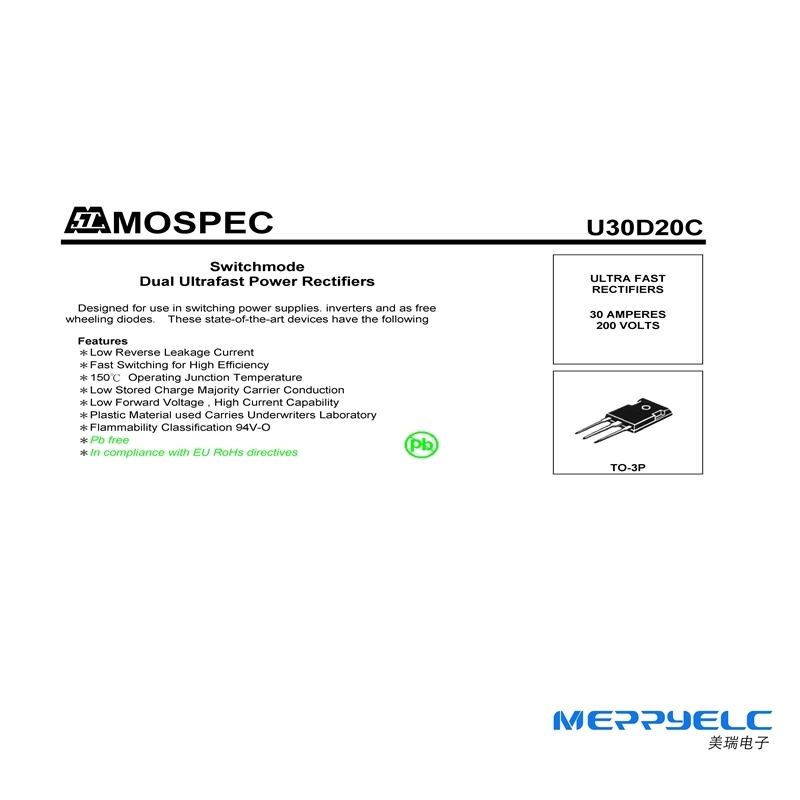

U30D20C TO-24(TO-3P) SwitchmodeDual Ultrafast Power Rectifiers Semiconductor Diode Fast Recovery Diode
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: TO-247
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: TO-247
Basic Info.
| Model NO. | U30D20C | Material | Silicon |
| Features1 | High Surge Capacity | Features2 | Low Power Loss, High Efficiency |
| Features3 | Glass Passivated Chip Junctions | Features4 | 150ºC Operating Junction Temperature |
| Features5 | Low Stored Charge Majority Carrier Conduction | Features6 | Low Forward Voltage, High Current Capabilit |
| Features7 | High-Switching Speed 50 Nanosecond Recovery Time | Features8 | Plastic Material Used Carries Underwriters Laborat |
| Transport Package | Plastic Package | Specification | U30D20C |
| Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Part Name
Ultra-Fast Recovery Rectifier 30A 200V TO-247(3P) U30D20C
Features
1.High Surge Capacity
2.Low Power Loss, High efficiency
3.Glass Passivated chip junctions
4.150ºC Operating Junction Temperature
5.Low Stored Charge Majority Carrier Conduction
6.Low Forward Voltage , High Current Capability
7.High-Switching Speed 50 Nanosecond Recovery Time
8.Plastic Material used Carries Underwriters Laboratory
Previous : MM3Z2V0~MM3Z75 SOD-323 SC-76 max. 300 mW ± 5% Silicon Planar Zener Diodes Semiconductor Diode
Next : U30D60C 30A 600V TO-247 (3P) Ultra-Fast Recovery Rectifier
