TPS6103x 96% Efficient Synchronous Boost Converter With 4A Switch
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
- Parameters
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Basic Info.
| Model NO. | TPS61032 | Specification | SOIC (8) |
| Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Part Name

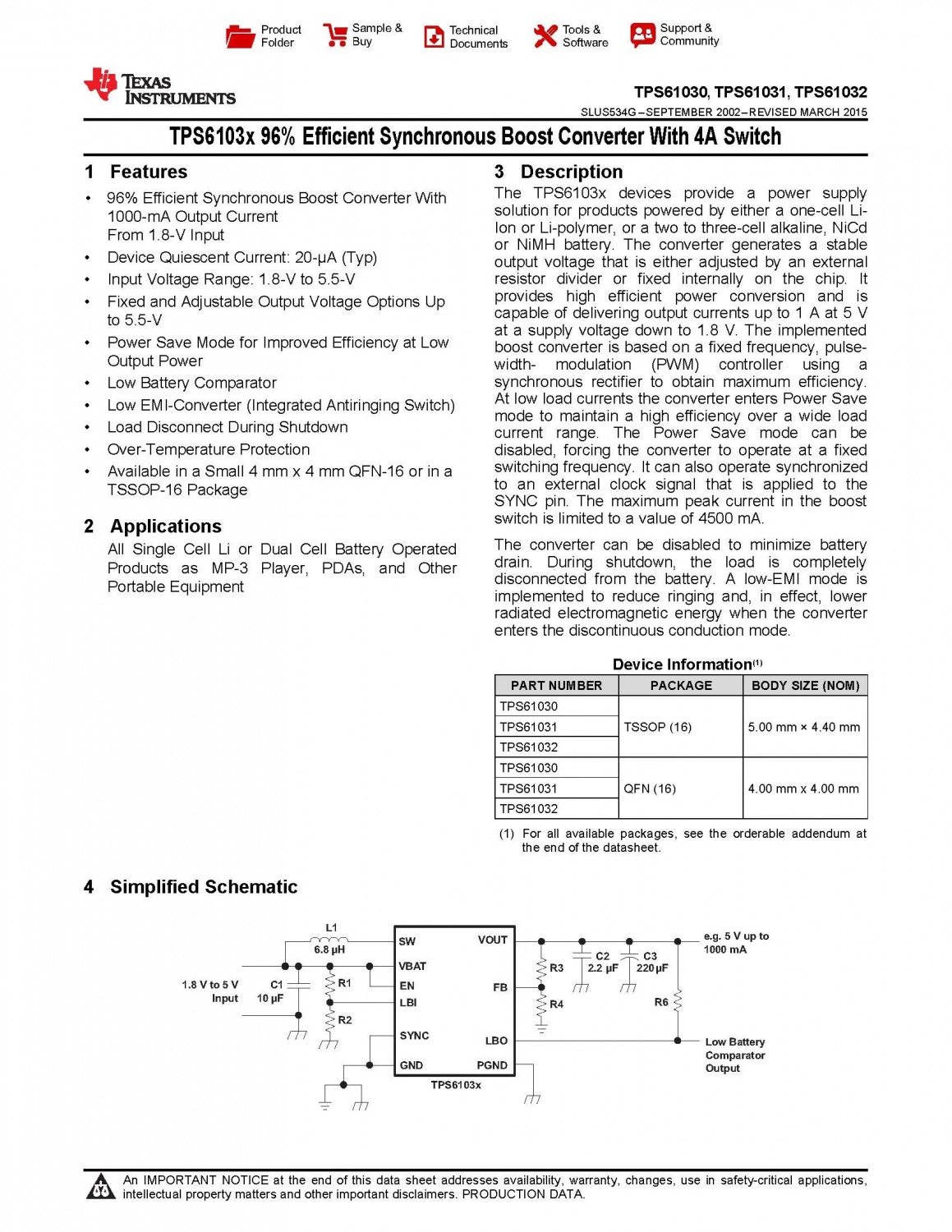

TPS6103x 96% Efficient Synchronous Boost Converter With 4A Switch TPS61032
FEATURES
1.96% Efficient Synchronous Boost Converter With 1000-mA Output Current From 1.8-V Input
2.Input Voltage Range: 1.8-V to 5.5-V
3.Device Quiescent Current: 20-µA (Typ)
4.Fixed and Adjustable Output Voltage Options Up to 5.5-V
5. Power Save Mode for Improved Efficiency at Low Output Power
6.Low Battery Comparator
7.Low EMI-Converter (Integrated Antiringing Switch)
8.Load Disconnect During Shutdown
9.Over-Temperature Protection
10.Available in a Small 4 mm x 4 mm QFN-16 or in a TSSOP-16 Package
APPLICATIONS
All Single Cell Li or Dual Cell Battery Operated Products as MP-3 Player, PDAs, and Other Portable Equipment=
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
