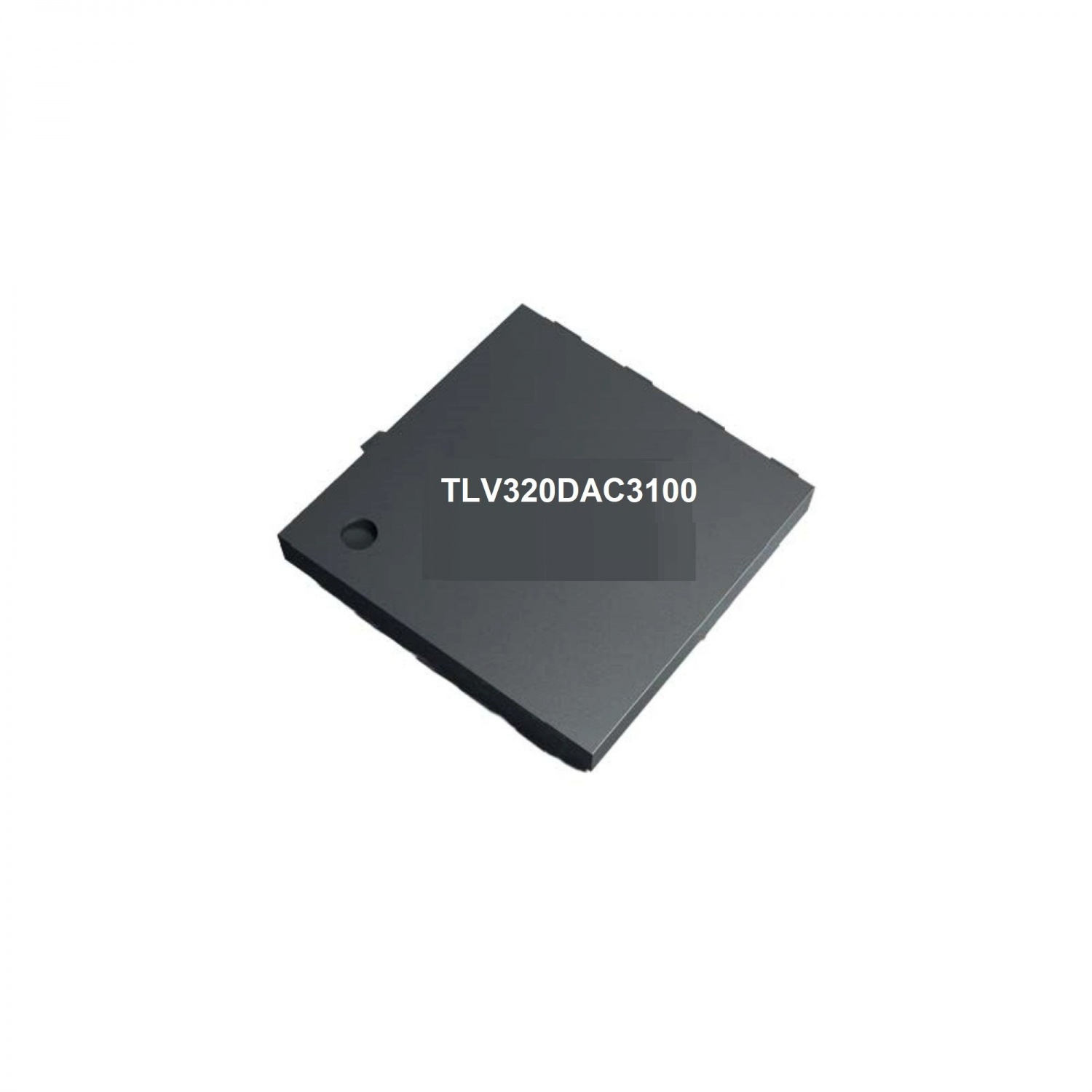

TLV320DAC3100 Low-Power Stereo Audio DAC With Audio Processingand Mono Class-D Speaker Amplifier

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: to-220fs

  • Parameters

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: to-220fs

Basic Info.

Model NO.TLV320DAC3100MaterialSilicon
Features1Glass Passivated ChipFeatures2Low Forward Voltage Drop
Features3Ideal for Printed Circuit BoardFeatures4High Surge Current Capability
Transport PackagePlastic PackageOriginGuangdong, China
Production Capacity10000 Pieces/Day

Product Description

Part Name

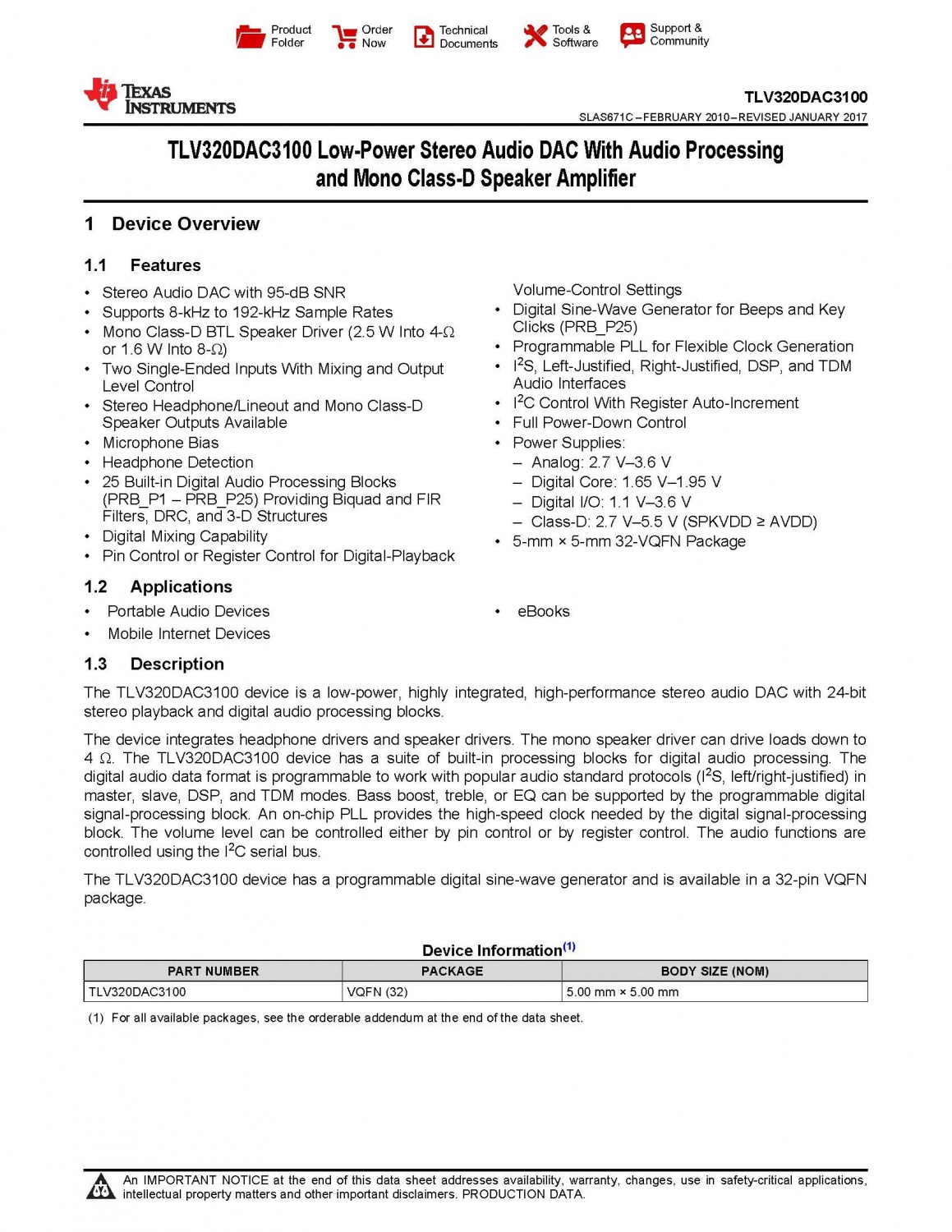

TLV320DAC3100 Low-Power Stereo Audio DAC With Audio Processingand Mono Class-D Speaker Amplifier


Features

Stereo Audio DAC with 95-dB SNR

• Supports 8-kHz to 192-kHz Sample Rates

• Mono Class-D BTL Speaker Driver (2.5 W Into 4-Ω

or 1.6 W Into 8-Ω)

• Two Single-Ended Inputs With Mixing and Output

Level Control

• Stereo Headphone/Lineout and Mono Class-D

Speaker Outputs Available

• Microphone Bias

• Headphone Detection

• 25 Built-in Digital Audio Processing Blocks

(PRB_P1 - PRB_P25) Providing Biquad and FIR

Filters, DRC, and 3-D Structures

• Digital Mixing Capability

• Pin Control or Register Control for Digital-Playback

Applications

• Portable Audio Devices

• Mobile Internet Devices

• eBooks


TLV320DAC3100 Low-Power Stereo Audio DAC With Audio Processingand Mono Class-D Speaker Amplifier
