Basic Info.
Model NO. | LAN7800 | Specification | 28-pin QFN 28-pin SOIC |
Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |

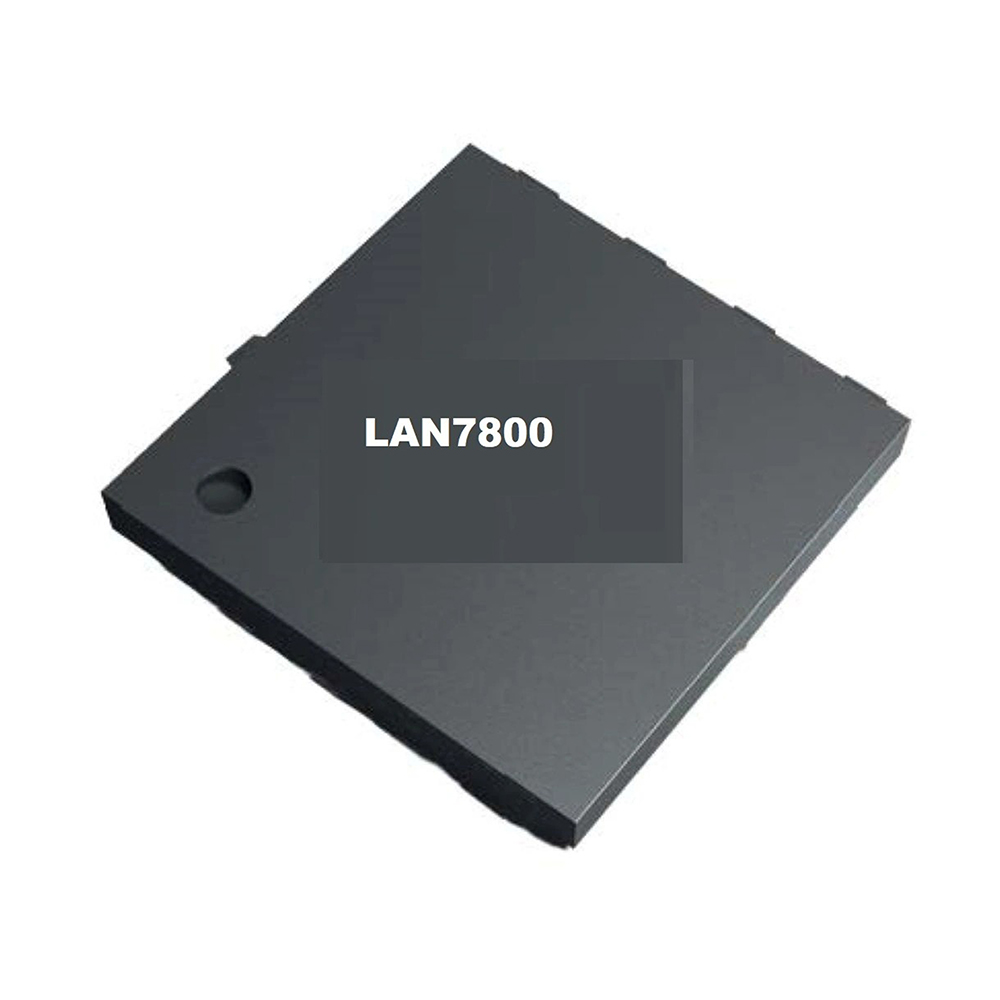

Part Name

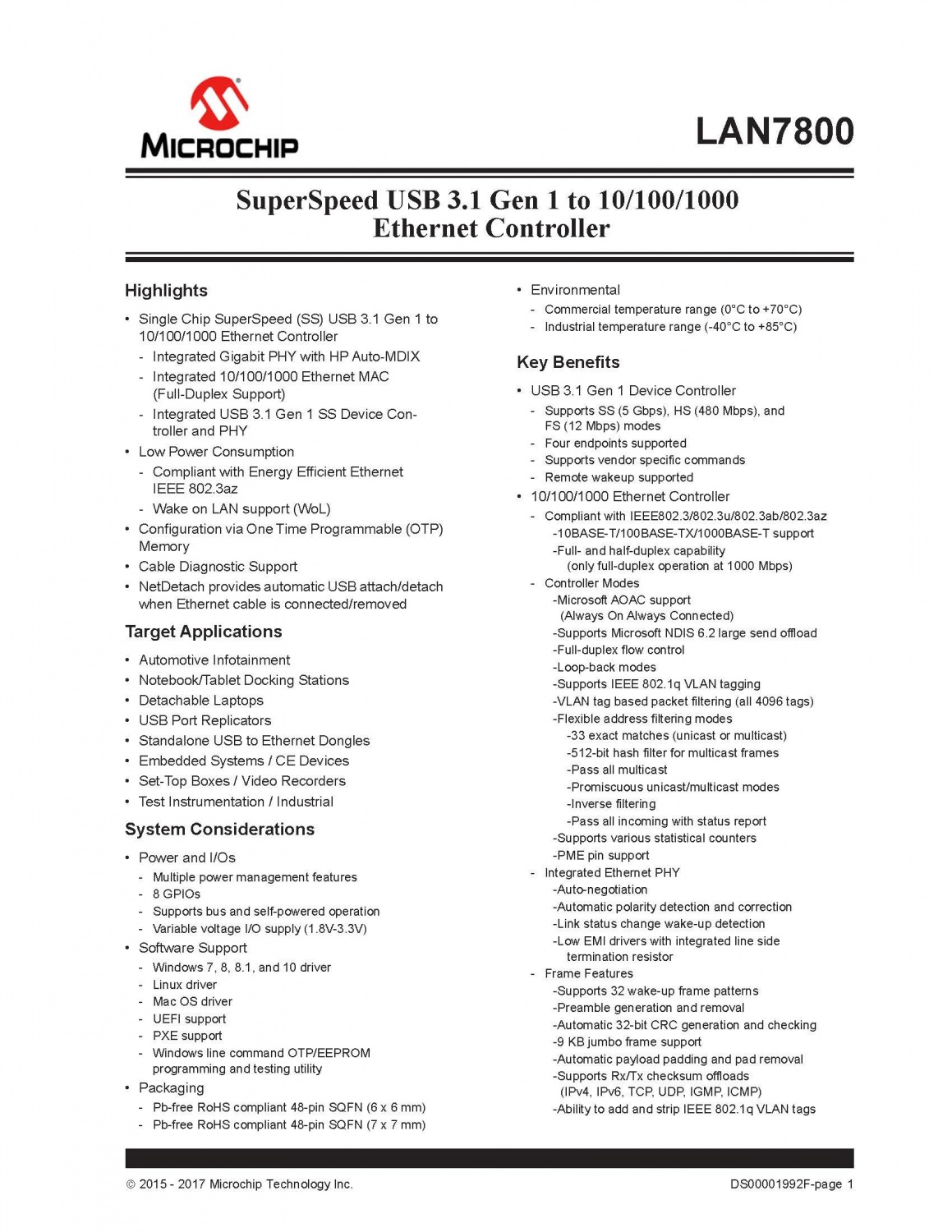

SuperSpeed USB 3.1 Gen 1 to 10/100/1000Ethernet Controller LAN7800
Features
• Single Chip SuperSpeed (SS) USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller
- Integrated Gigabit PHY with HP Auto-MDIX
- Integrated 10/100/1000 Ethernet MAC(Full-Duplex Support)
- Integrated USB 3.1 Gen 1 SS Device Controller and PHY
• Low Power Consumption
- Compliant with Energy Efficient Ethernet IEEE 802.3az
- Wake on LAN support (WoL)
• Configuration via One Time Programmable (OTP) Memory
• Cable Diagnostic Support
• NetDetach provides automatic USB attach/detach when Ethernet cable is connected/removed
Target Applications
• Automotive Infotainment
• Notebook/Tablet Docking Stations
• Detachable Laptops
• USB Port Replicators
• Standalone USB to Ethernet Dongles
• Embedded Systems / CE Devices
• Set-Top Boxes / Video Recorders
• Test Instrumentation / Industrial
