Basic Info.
Model NO. | KSZ8851-16/32MQL | Specification | SOT-23 TO-92 SC70 |
Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |

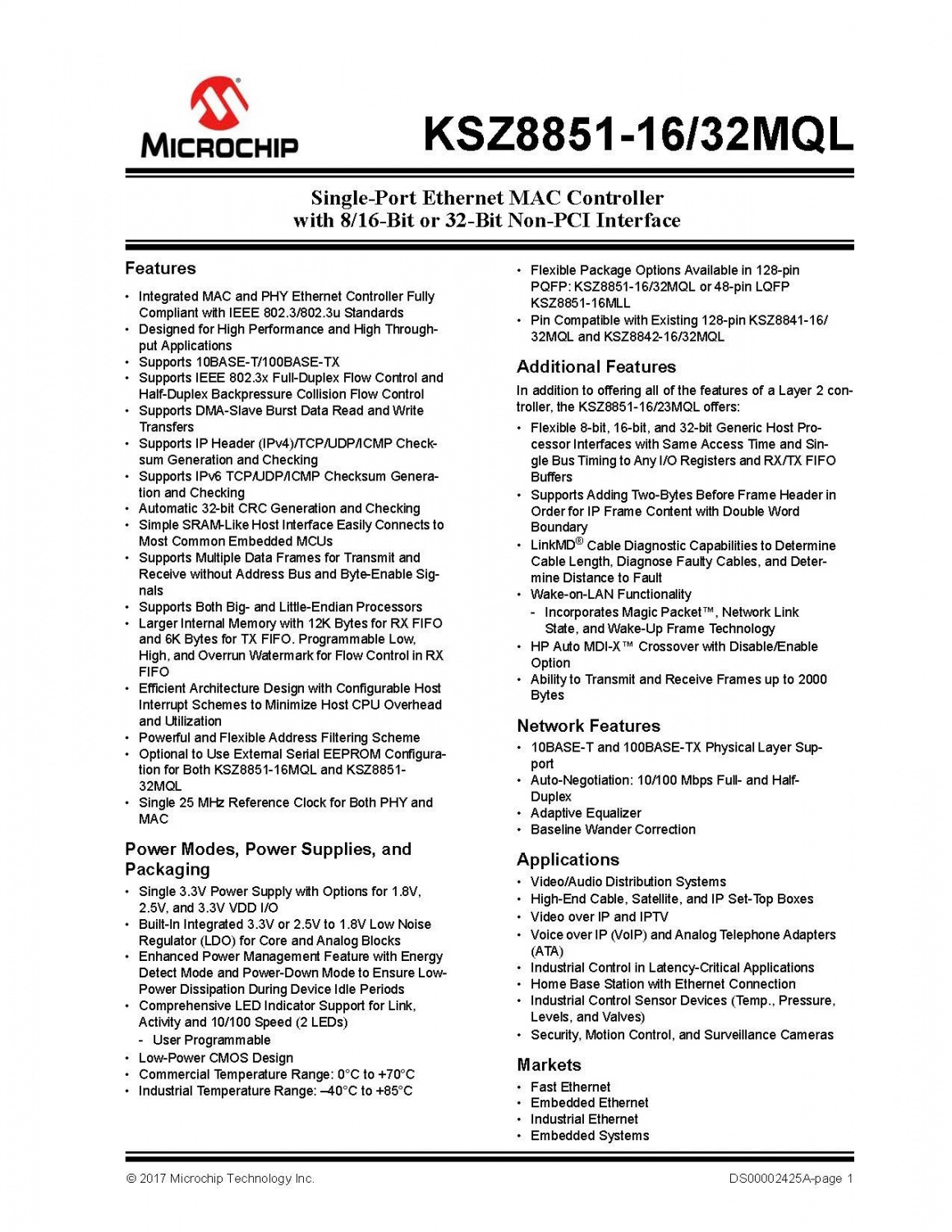

Part Name
Single-Port Ethernet MAC Controllerwith 8/16-Bit or 32-Bit Non-PCI Interface
Features
• Integrated MAC and PHY Ethernet Controller Fully Compliant with IEEE 802.3/802.3u Standards
• Designed for High Performance and High Throughput
Applications
• Supports 10BASE-T/100BASE-TX
• Supports IEEE 802.3x Full-Duplex Flow Control and Half-Duplex Backpressure Collision Flow Control
• Supports DMA-Slave Burst Data Read and Write Transfers
• Supports IP Header (IPv4)/TCP/UDP/ICMP Checksum Generation and Checking
• Supports IPv6 TCP/UDP/ICMP Checksum Generation and Checking
• Automatic 32-bit CRC Generation and Checking
• Simple SRAM-Like Host Interface Easily Connects to Most Common Embedded MCUs
• Supports Multiple Data Frames for Transmit and Receive without Address Bus and Byte-Enable Signals
• Supports Both Big- and Little-Endian Processors
• Larger Internal Memory with 12K Bytes for RX FIFO and 6K Bytes for TX FIFO. Programmable Low,
High, and Overrun Watermark for Flow Control in RX FIFO
• Efficient Architecture Design with Configurable Host Interrupt Schemes to Minimize Host CPU Overhead and Utilization
• Powerful and Flexible Address Filtering Scheme
• Optional to Use External Serial EEPROM Configuration for Both KSZ8851-16MQL and KSZ8851- 32MQL
• Single 25 MHz Reference Clock for Both PHY and MAC
