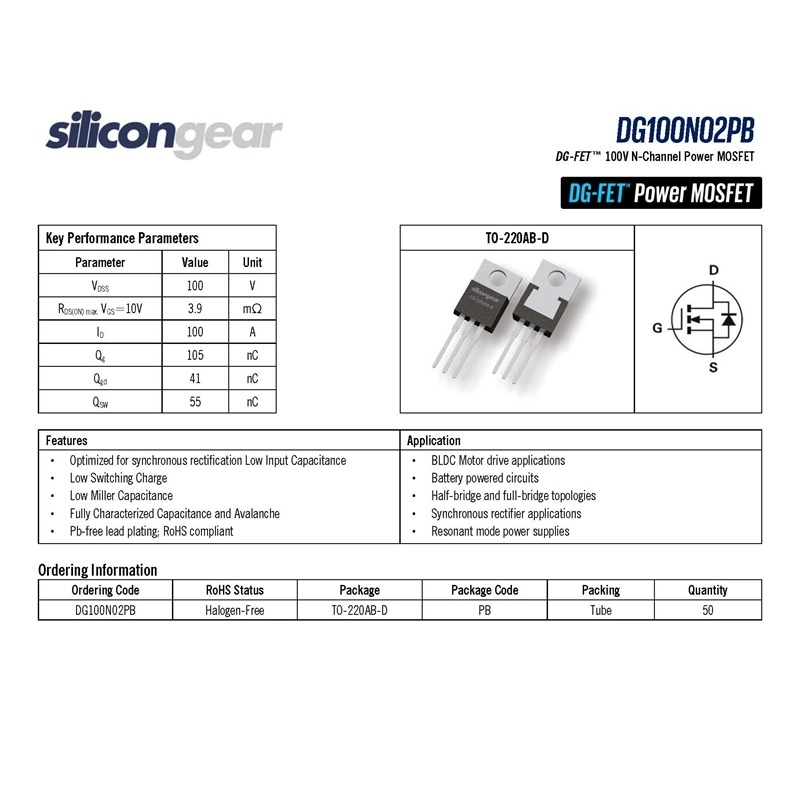

Silicongear DG100N02PB TO-220AB-D DG-FET™ VDSS 100V RDS(ON)max.VGS=10V 3.9mΩ ID=100A N-Channel Power MOSFET
Certification: RoHS, CE, ISO, CCC
Shape: GT
Shielding Type: Remote Cut-Off Shielding Tube
Cooling Method: Naturally Cooled Tube
Function: High Back Pressure Transistor, Microwave Transistor, Switch Transistor
Working Frequency: High Frequenc
- Parameters
Certification: RoHS, CE, ISO, CCC
Shape: GT
Shielding Type: Remote Cut-Off Shielding Tube
Cooling Method: Naturally Cooled Tube
Function: High Back Pressure Transistor, Microwave Transistor, Switch Transistor
Working Frequency: High Frequenc
Basic Info.
| Model NO. | DG100N02PB | Structure | Planar |
| Encapsulation Structure | Chip Transistor | Power Level | High Power |
| Material | Silicon | Features1 | Optimized for synchronous rectification Low Input |
| Features2 | Low Switching Charge | Features3 | Low Miller Capacitance |
| Features4 | Fully Characterized Capacitance and Avalanche | Application1 | Battery powered circuits |
| Application3 | BLDC Motor drive applications | Application4 | Half-bridge and full-bridge topologies |
| Application5 | Synchronous rectifier applications | Application6 | Resonant mode power supplies |
| Transport Package | Plastic Package | Specification | DG100N02PB |
| Trademark | Silicongear | Origin | Guangdong, China |
| Production Capacity | 10000 Pieces/Day |
Part Name
Silicongear DG100N02PB TO-220AB-D DG-FET™ VDSS 100V RDS(ON)max.VGS=10V 3.9mΩ ID=100A N-Channel Power MOSFET
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
Previous : Silicongear DG100N03PB TO-220AB-D VDSS=100V RDS(ON) max. VGS=10V 10mΩ ID=77A DG-FET™ 100V N-Channel Power MOSFET
Next : Silicongear SG150N06P TO-220 VDSS,150V RDS(ON),12mΩ (max.)@VGS=10V,ID,119A 150V N-Channel Power MOSFET
