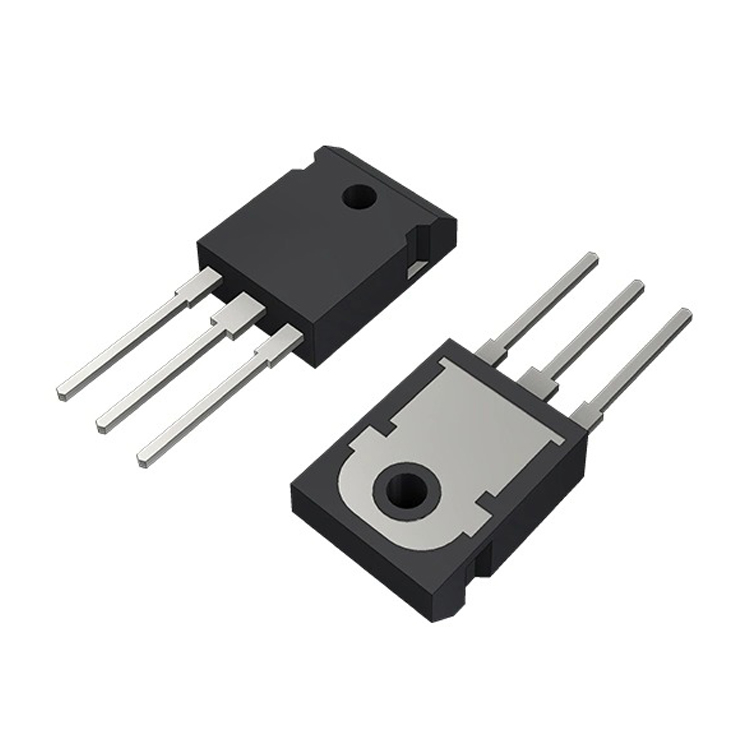

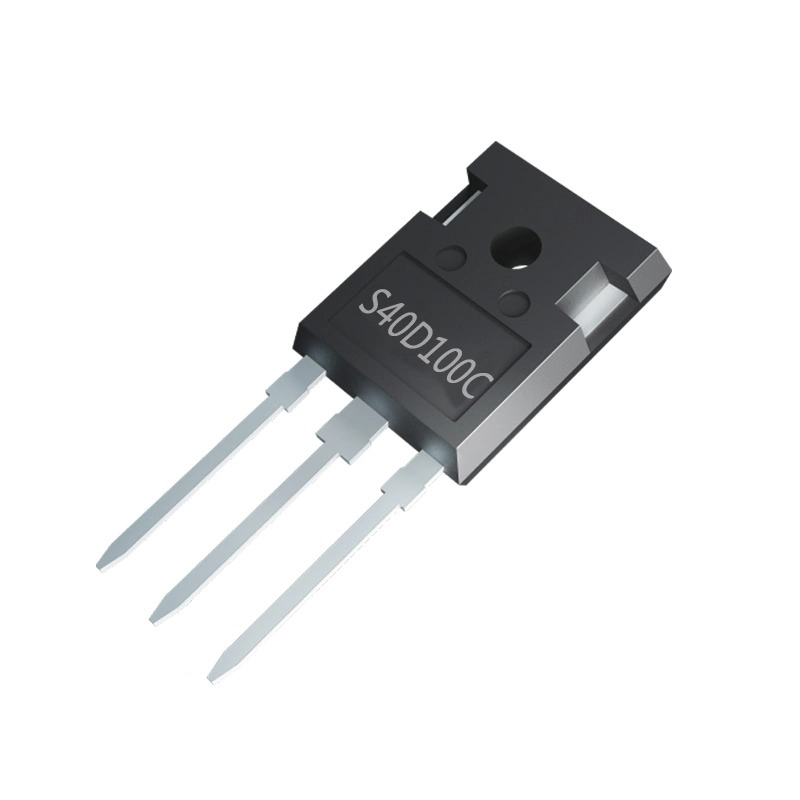

Schottky Barrier Rectifiers S40D100C Schottky Barrier Rectifiers SwitchmodeDual Schottky Barrier Power Rectifiers Diode

    Encapsulation Structure: Chip Transistor

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Material: Silicon

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

  • Parameters

    Encapsulation Structure: Chip Transistor

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Material: Silicon

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

Basic Info.

Model NO.S40D100CFeatures3Ideal for Printed Circuit Board
Features4High Surge Current CapabilityTransport PackagePlastic Package
Specification30A 150VTrademarkMospec
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day


Part Name

Schottky Barrier Rectifiers 40A 100V S40D100C


Features

1.Low Forward Voltage

2.Low Switching noise

3.High Current Capacity

4.Guarantee Reverse Avalanche

5.Guard-Ring for Stress Protection

6.Low Power Loss & High efficiency

7.150ºC Operating Junction Temperature

8.Low Stored Charge Majority Carrier Conduction

9.Plastic Material used Carries Underwriters Laboratory

10.Flammability Classification 94V-O

11. Pb free / In compliance with EU RoHs directives


Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.

The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.

The company's core product lines include:

1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;

2. Low voltage MOS; super junction MOS

3. SIC diode; SIC MOSFET

Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
