NSR0320 Schottky Barrier Diodes

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package


  • Parameters

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package


Basic Info.

Model NO.NSR0320SpecificationSOT-23 TO-92 SC70
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day


Part Name

NSR0320 Schottky Barrier Diodes

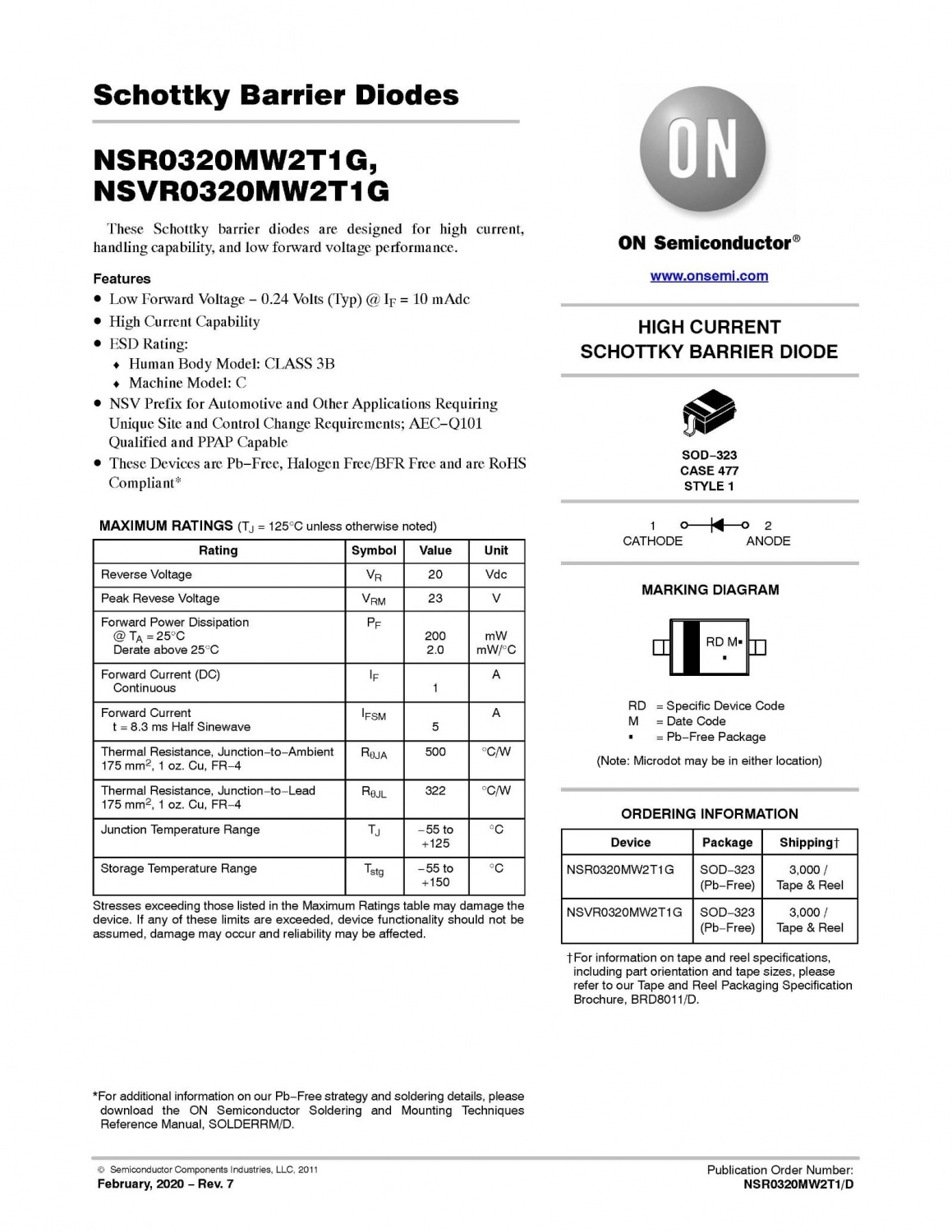

FEATURES

1.Low Forward Voltage − 0.24 Volts (Typ) @ IF = 10 mAdc

2.High Current Capability

3.ESD Rating:

♦ Human Body Model: CLASS 3B

♦ Machine Model: C

4.NSV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q101

Qualified and PPAP Capable

5.These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

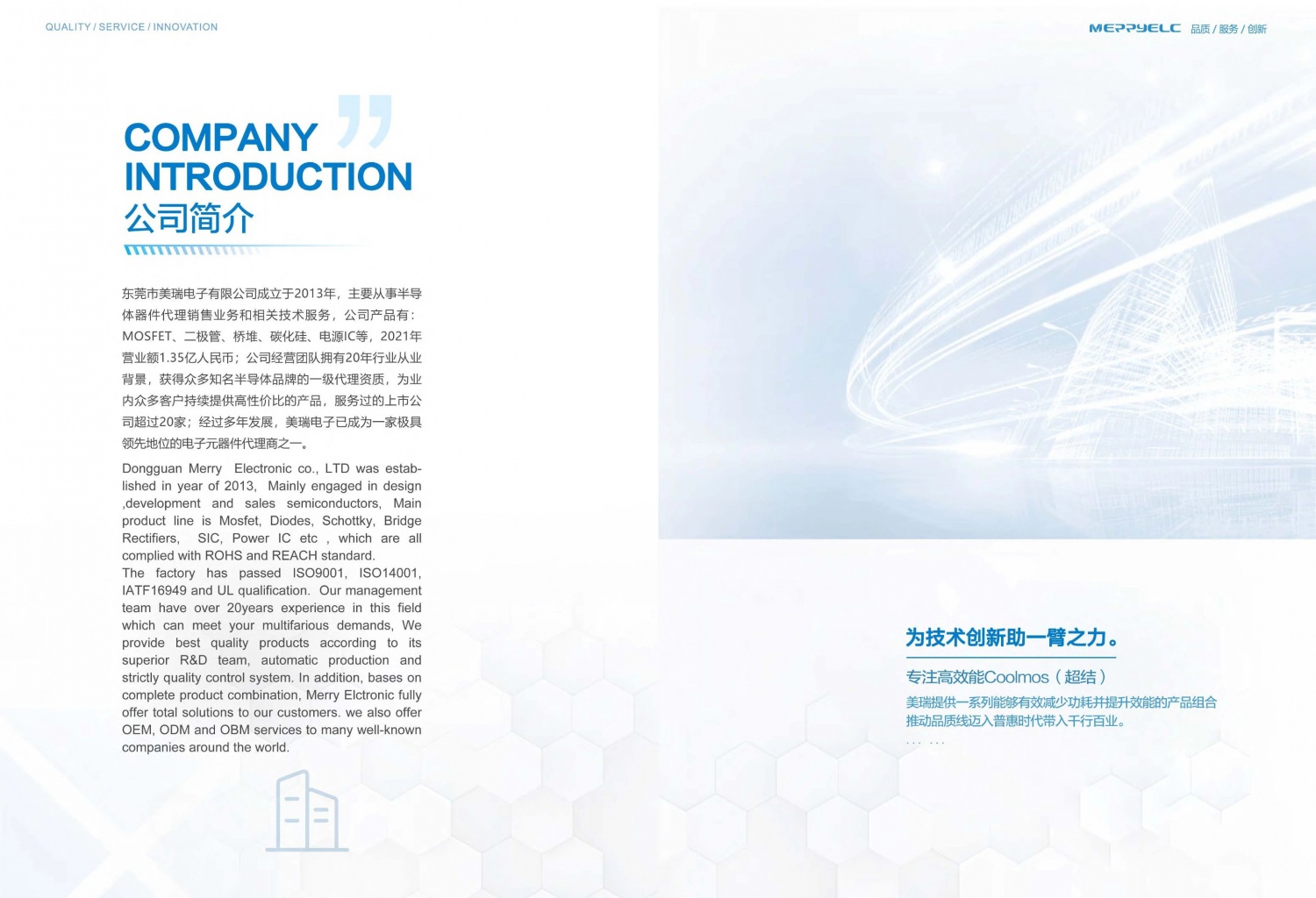

Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.

The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.

The company's core product lines include:

1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;

2. Low voltage MOS; super junction MOS

3. SIC diode; SIC MOSFET

Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
