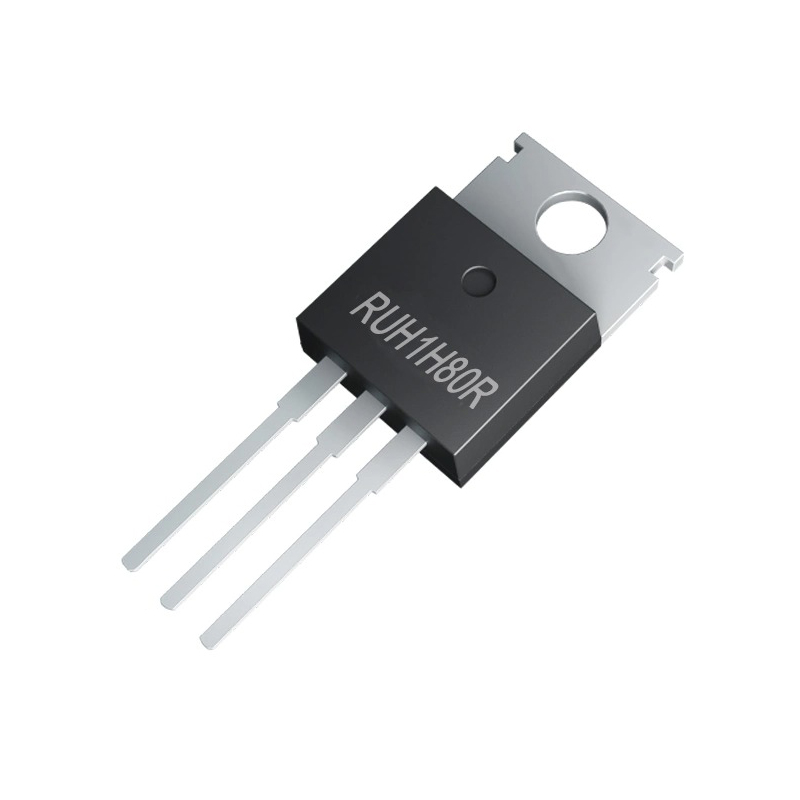

N-Channel RUH1H80R dvanced Power 100V/80A MOSFET

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: TO-220

  • Parameters

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: TO-220

Basic Info.

Model NO.RUH1H80R MOSFETStructureSilicon
Features1Glass Passivated ChipFeatures2Low Forward Voltage Drop
Features3Ideal for Printed Circuit BoardFeatures4High Surge Current Capability
Transport PackagePlastic PackageSpecificationcoolmos
TrademarkcoolmosOriginGuangdong, China
Production Capacity10000 Pieces/Day


Product Neme

Features Pin Description

• 100V/80A,

RDS (ON) =6.5mΩ(Typ.)@VGS=10V

RDS (ON) =9mΩ(Typ.)@VGS=4.5V

• Ultra Low On-Resistance

• Fast Switching Speed

• 100% avalanche tested

• Lead Free and Green Devices Available (RoHS Compliant)



Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.

The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.

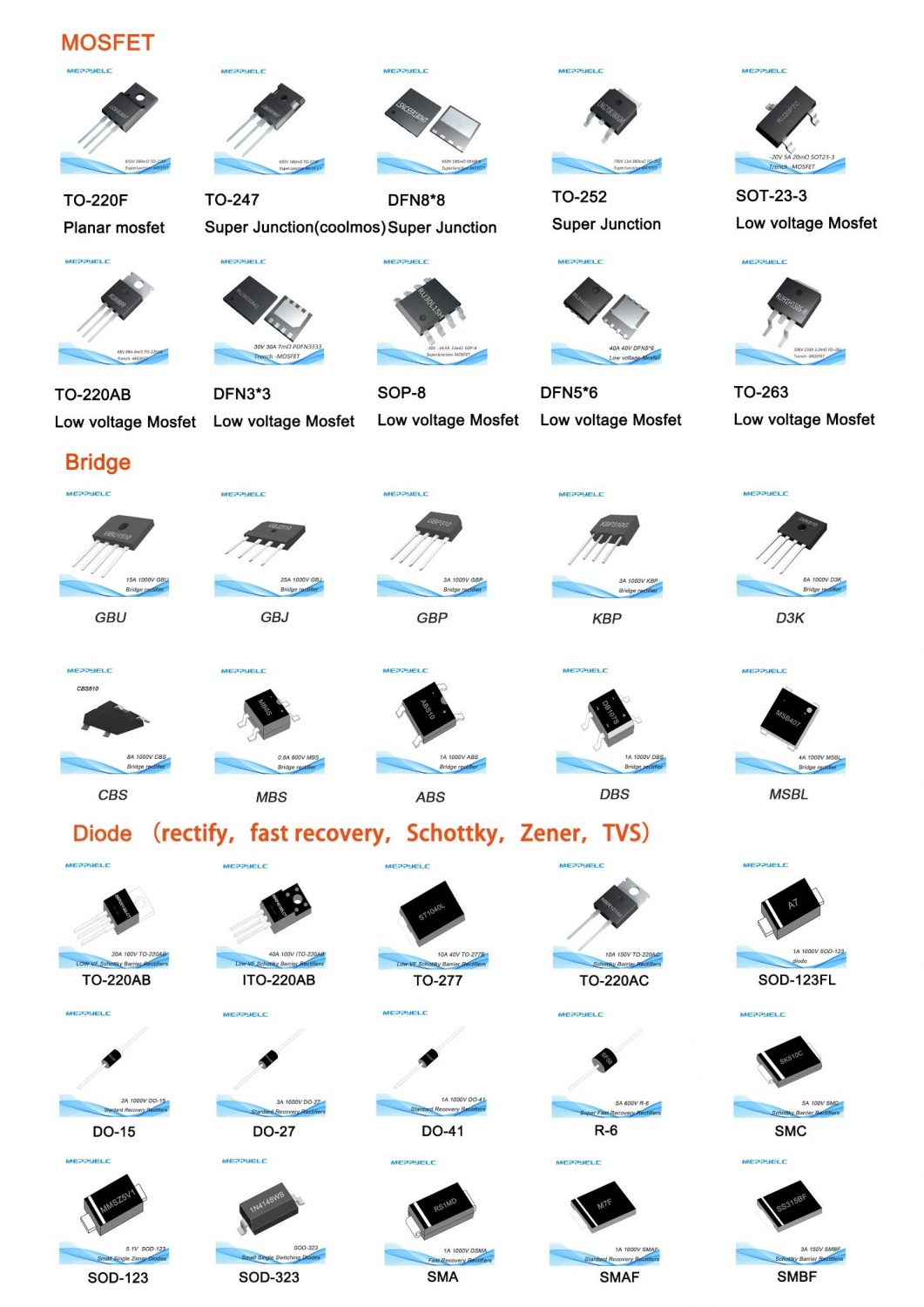

The company's core product lines include:

1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;

2. Low voltage MOS; super junction MOS

3. SIC diode; SIC MOSFET

Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
