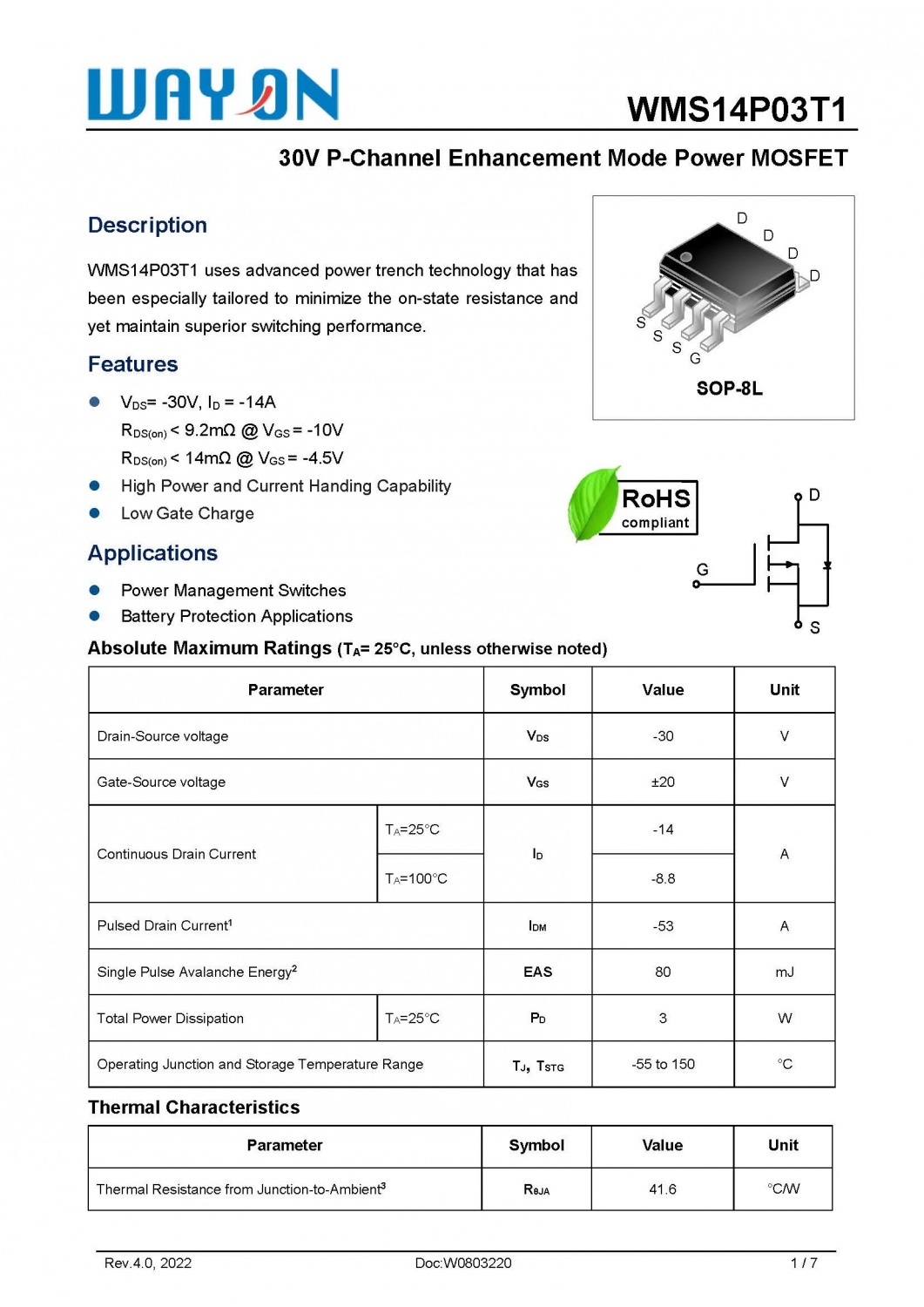

MS14P03T1 SOP-8L 30V P-Channel Enhancement Mode Power MOSFET
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
- Parameters
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Basic Info.
| Model NO. | WMS14P03T1 | Specification | DFN2020-6L |
| Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Product Description
Part Name
WMS14P03T1 SOP-8L 30V P-Channel Enhancement Mode Power MOSFET
Features
VDS= -30V, ID = -14A
RDS(on) < 9.2mΩ @ VGS = -10V
RDS(on) < 14mΩ @ VGS = -4.5V
High Power and Current Handing Capability
Low Gate Charge
Application
Battery Protection
Power Management
Load Switch
Previous : HCS65R130FS 650V N-Channel Super Junction MOSFET Fast recovery MOS
Next : WMR12N03T1 DFN2020-6L 30V N-Channel Enhancement Mode Power MOSFET
