Basic Info.
Model NO. | MCP23017/MCP23S17 | Specification | 28-pin QFN 28-pin SOIC |
Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Part Name

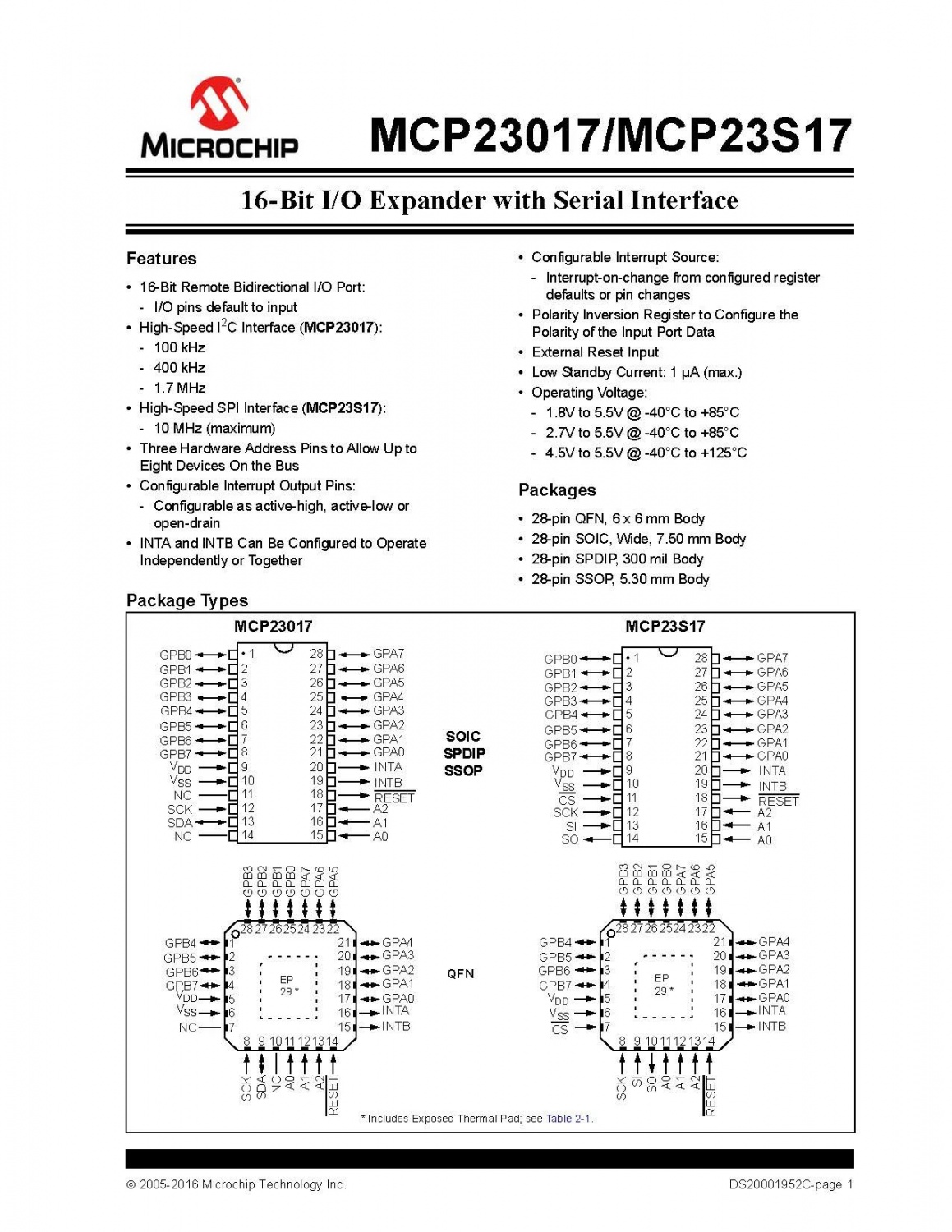

MCP23017/MCP23S17 16-Bit I/O Expander with Serial Interface ICS
Highlights
• 16-Bit Remote Bidirectional I/O Port:
- I/O pins default to input
• High-Speed I2C Interface (MCP23017):
- 100kHz
- 400kHz
- 1.7MHz
• High-Speed SPI Interface (MCP23S17):
- 10 MHz (maximum)
• Three Hardware Address Pins to Allow Up to Eight Devices On the Bus
• Configurable Interrupt Output Pins:
- Configurable as active-high, active-low or open-drain
• INTA and INTB Can Be Configured to Operate Independently or Together
• Configurable Interrupt Source:
- Interrupt-on-change from configured register defaults or pin changes
• Polarity Inversion Register to Configure the Polarity of the Input Port Data
• External Reset Input
• Low Standby Current: 1 μA (max.)
• Operating Voltage:
- 1.8V to 5.5V @ -40°C to +85°C
- 2.7V to 5.5V @ -40°C to +85°C
- 4.5V to 5.5V @ -40°C to +125°C
Packages
• 28-pin QFN, 6 x 6 mm Body
• 28-pin SOIC, Wide, 7.50 mm Body
• 28-pin SPDIP, 300 mil Body
• 28-pin SSOP, 5.30 mm Body
