MAX14830ETM+T TQFN48 Quad Serial UART with 128-Word FIFOs IC Integrated Circuit maxim integrated

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: SO-8

  • Parameters

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: SO-8

Basic Info.

Model NO.MAX14830ETM+TMaterialSilicon
Application1Industrial Control SystemsApplication2Programmable Logic Controllers (PLC)
Application3IO-Link Master ControllersApplication4Communications Circuits
Application5Medical SystemsApplication6Point-of-Sales Systems
Application7Airplane Communication BusesTransport PackagePlastic Package
SpecificationMAX14830ETM+TTrademarkmaxim
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day

Part Name

IC Integrated Circuit maxim integrated MAX14830ETM+T TQFN48 Quad Serial UART with 128-Word FIFOs

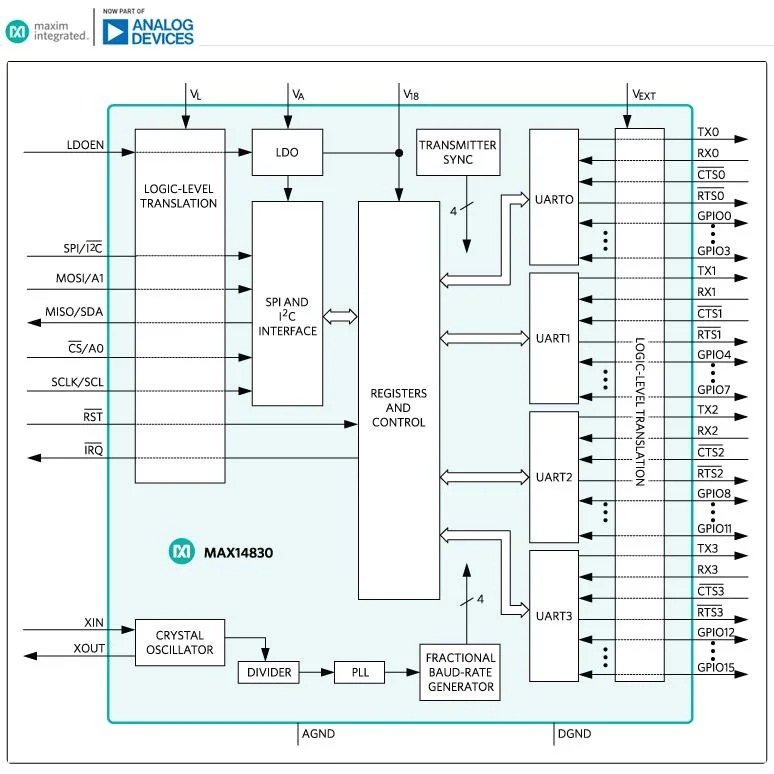

Benefits and Features

Bridges an SPI/MICROWIRE or I2C Microprocessor

Bus to an Asynchronous Interface like RS-485,

RS-232, or IrDASM

• SIR- and MIR-Compliant IrDA Encoder/Decoder

• Line Noise Indication Ensures Data Link Integrity

Deep, 128-Word Buffer and Automated Control

Features Help Offload Activity on the Microcontroller

• 128-Word Transmit and Receive FIFOs per UART

• Transmitter Synchronization Through SPI Commands

• Automatic Hardware Flow Control Using RTS_ and

CTS_ Outputs and Inputs

• Automatic Software Flow Control (XON/XOFF)

• Auto Transceiver Direction Control

• Programmable Setup and Hold Times for Transceiver

Control

• Auto Transmitter Disable

• Half-Duplex Echo Suppression

• 9-Bit Multidrop-Mode Data Filtering

Special Character Detection

GPIO-Based Character Detection

Four Timers Routed to GPIOs

16 Flexible GPIOs with 20mA Drive Capability

Saves Board Space

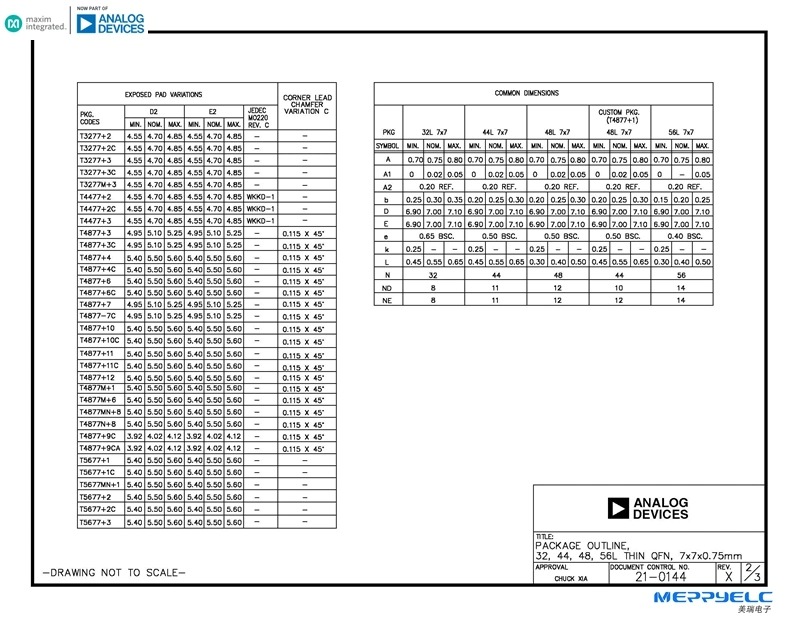

• TQFN (7mm x 7mm) Package

Fast Data Rates Allow Maximum System Flexibility

Across Interface Standards

• 6Mbaud (max) Data Rate in 16x Sampling Mode

• 12/24Mbaud (max) Data Rate in 2x/4x Rate Modes

• High-Resolution Programmable Baud-Rate

• SPI Up to 26MHz Clock Rate

• Fast Mode Plus (Pm+) I2C Up to 1MHz

Integrated Internal Oscillator Eliminates the Need for

an External Oscillator and Reduces the BOM Cost

• Fractional Baud-Rate Generators, Predivider, and

Phase-Locked Loop (PLL)

• Logic-Level Translation Down to 1.61V on the Controller

and Transceiver Interfaces Ensures System

Compatibility

• Register Compatible with MAX3107, MAX3108,

Applications

Industrial Control Systems

Programmable Logic Controllers (PLC)

IO-Link Master Controllers

Medical Systems

Point-of-Sales Systems

Airplane Communication Buses



MAX14830ETM+T TQFN48 Quad Serial UART with 128-Word FIFOs IC Integrated Circuit maxim integrated
