Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: WFDFN14
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: WFDFN14
Basic Info.
Model NO. | MAX13433EETD+T | Material | Silicon |
Application1 | Inexpensive Negative Supplies | Application2 | Data Acquisition Systems |
Application3 | Up to -20v for Op Amps, and Other LinearCircuits | Application4 | Supply Splitter, VouT = Vs/2 |
Application5 | RS-232 Power Supplies | Features1 | +4.5V to +20V Supply to-4.5V to-20V Output |
Features2 | Cascaded Voltage Multipllcation (VouT = -nx v′) | Features3 | 99.7% Typical Open Circuit Converslon Efficiency |
Features4 | Requires Only 2 External Capacitors | Features5 | Pin Compatible wlth the ICL7660 |
Transport Package | Plastic Package | Specification | MAX13433EETD+T |
Trademark | maxim | Origin | Guangdong, China |
Production Capacity | 10000 Pieces/Day |
Part Name

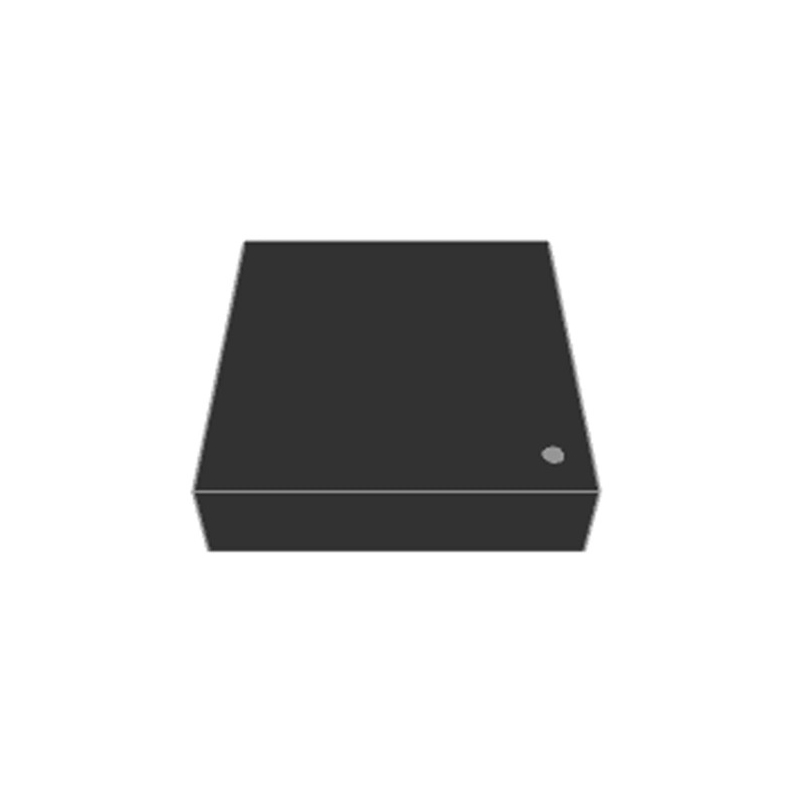

IC maxim integrated MAX13433EETD+T WFDFN14 TDFN; 14Pin;MAX13430E-MAX13433E RS-485 Transceivers with Low-VoltageLogic Interface Integrated Circuit
Features
Wide +3V to +5V Input Supply RangeLow-Voltage Logic Interface +1.62V (min)Ultra-Low Supply Current in Shutdown Mode10uA lcc (max), 1uA lL(max)
Thermal Shutdown Protection
Hot-Swap Input Structures on DE and RE
1/8-Unit Load Allows Up to 256 Transceivers onthe Bus
Enhanced Slew-Rate Limiting(MAX13430E/MAX13432E)
Extended ESD Protection for RS-485 IO Pins
±30kV Human Body Model
15kV Air-Gap Discharge per IEC 61000-4-210kV Contact Discharge per IEC 61000-4-2Extended -40°C to+85C Operating TemperatureRange
Space-Saving TDFN and uMAX Packages
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
