Basic Info.
Model NO. | AT24C128C | Specification | PDIP/SOIJ/SOIC/TSSOP |
Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Product Description

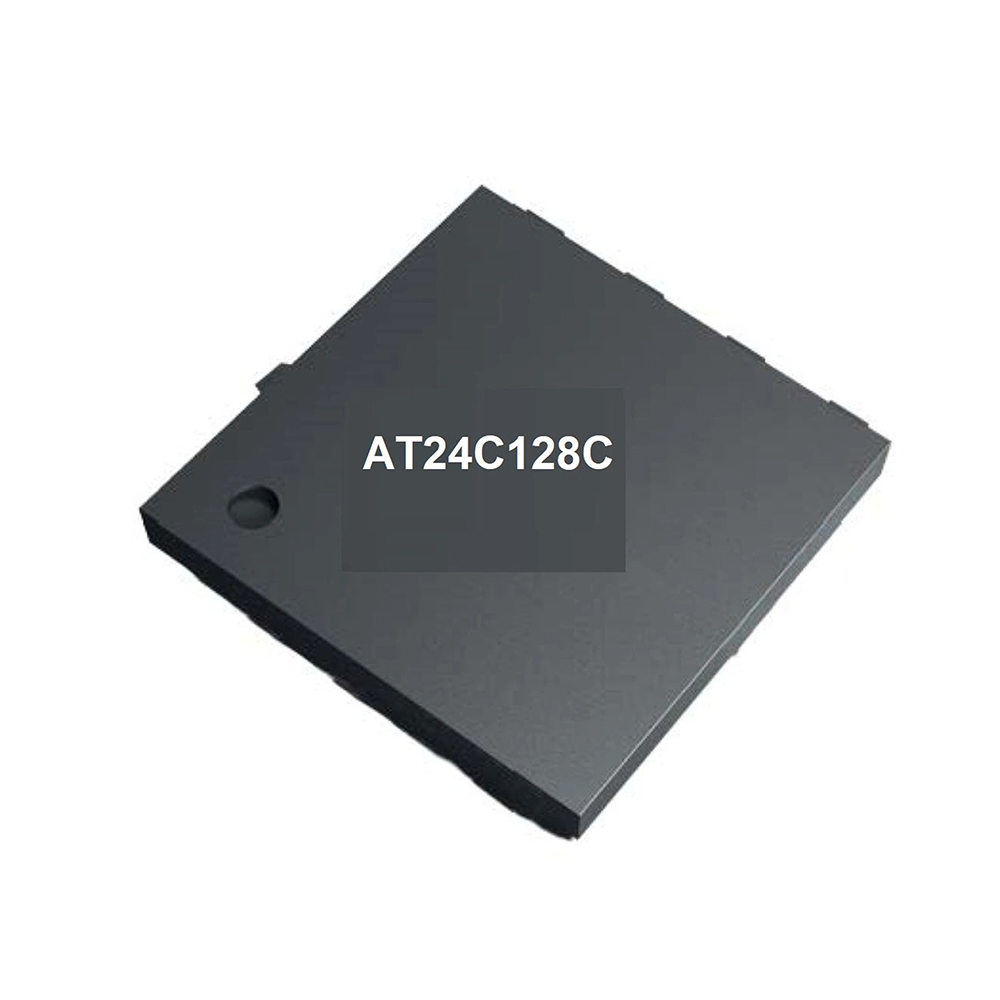

The Atmel® AT24C128C provides 131,072-bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 16,384 words of 8 bits each. The device's cascading feature allows up to eight devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 8-ball VFBGA, and 4-ball WLCSP packages. In addition, this device operates from 1.7V to 5.5V.
FEATURES
Low-voltage and Standard-voltage Operation
Internally Organized as 16,384 x 8
2-wire Serial Interface
Schmitt Trigger, Filtered Inputs for Noise Suppression
Bidirectional Data Transfer Protocol
400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) Compatibility
Write Protect Pin for Hardware Protection
Self-timed Write Cycle (5ms Max)
Lead-free/Halogen-free Devices Available
Green Package Options (Pb/Halide-free/RoHS Compliant)
Die Sale Options: Wafer Form, Waffle Pack, and Bumped Wafers
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
