Glass Passivated Bridge Rectifiers Reverse Voltage - 50 to 1000 Volts Forward Current - 8.0 Amperes Manufacture Fetures Applications Diode GBU808
| Customization: | Available |
|---|---|
| Encapsulation Structure: | GBU |
| Application: | AC/DC bridge full wave rectification |
- Parameters
| Customization: | Available |
|---|---|
| Encapsulation Structure: | GBU |
| Application: | AC/DC bridge full wave rectification |
Model NO.
GBU808
Certification
RoHS, CE, ISO, CCC
Luminous Intensity
Standard
Structure
Planar
Material
Silicon
Features1
Extremely Low Switching Loss
Features2
Excellent Stability and Uniformity
Features3
100% Avalanche Tested
Features4
Built-in ESD Diode
Application1
Switch Mode Power Supply (SMPS)
Application2
Power Factor Correction (Pfc)
Application3
Uninterruptible Power Supply (UPS)
Application4
AC to DC Converters
Application5
Telecom
Application6
TV Power & LED Lighting Power
Transport Package
Plastic Package
Specification
Customized
Trademark
HY
Origin
Guangdong, China
Production Capacity
10000 Pieces/Day
Product Description

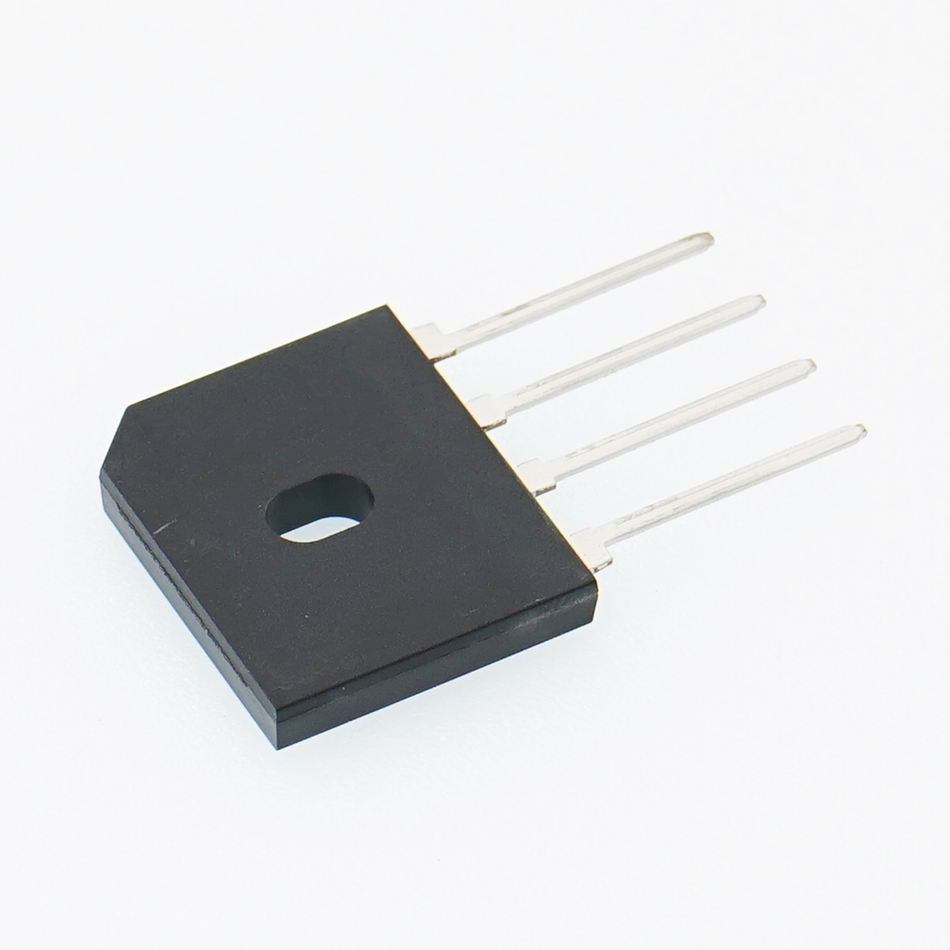

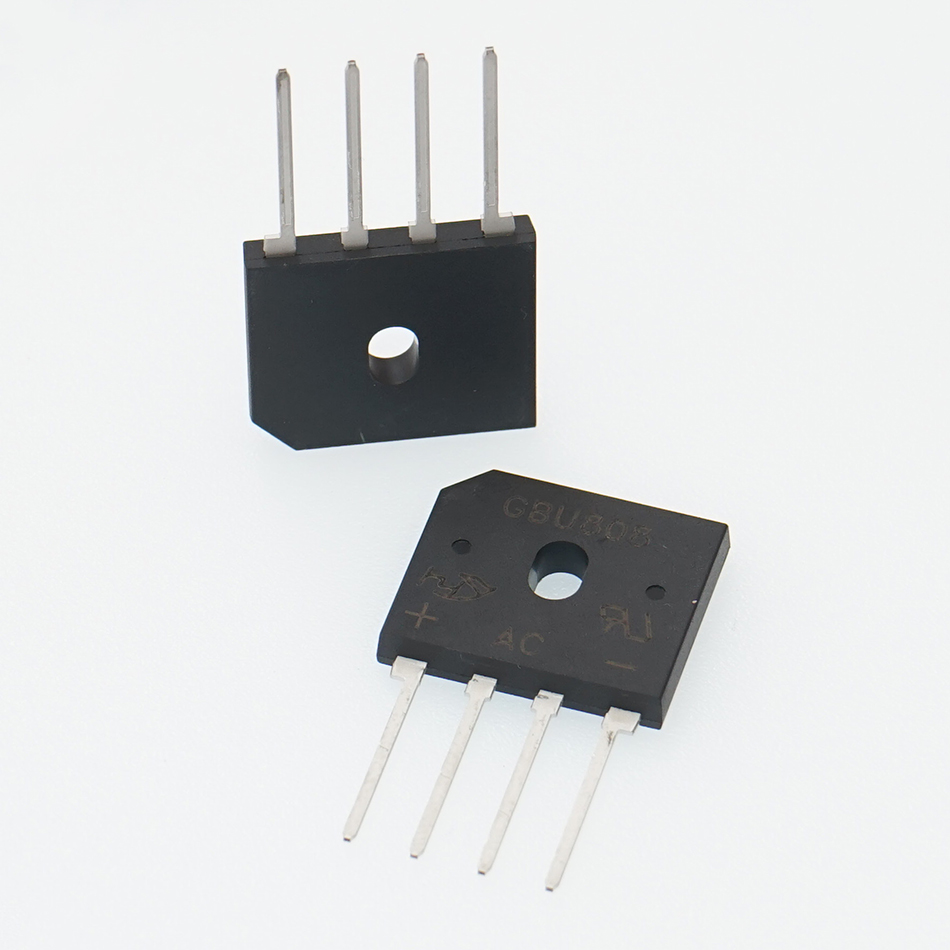

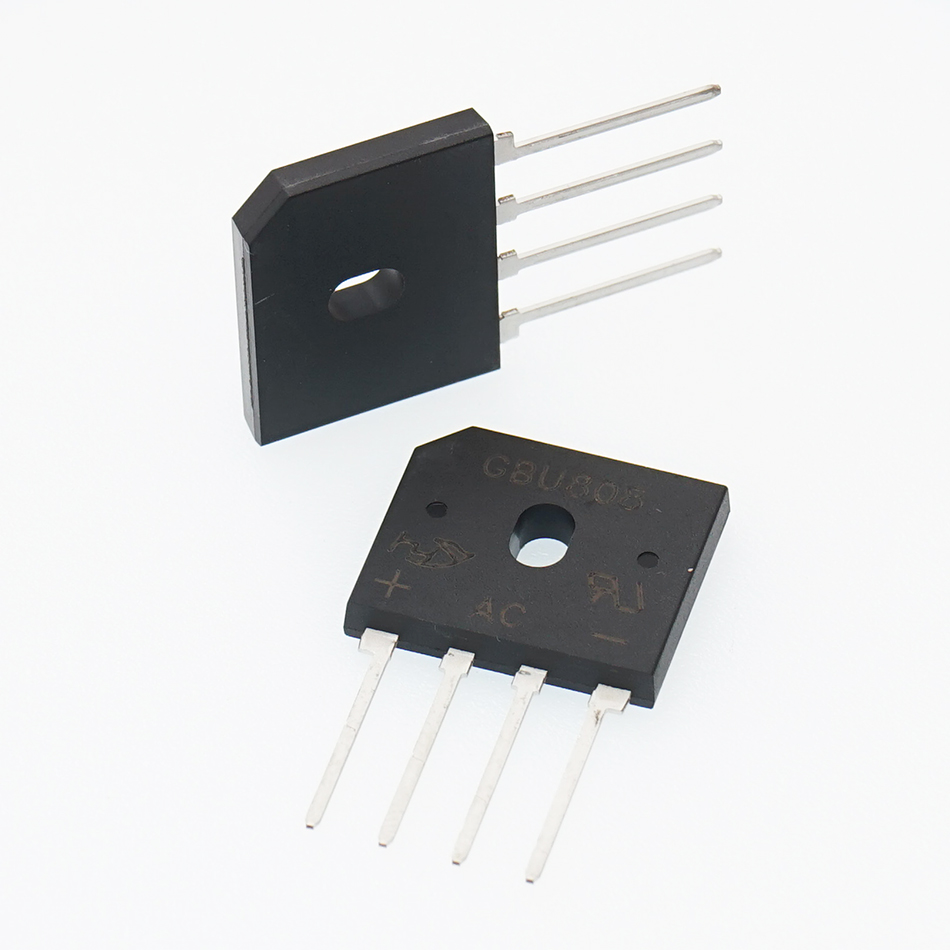

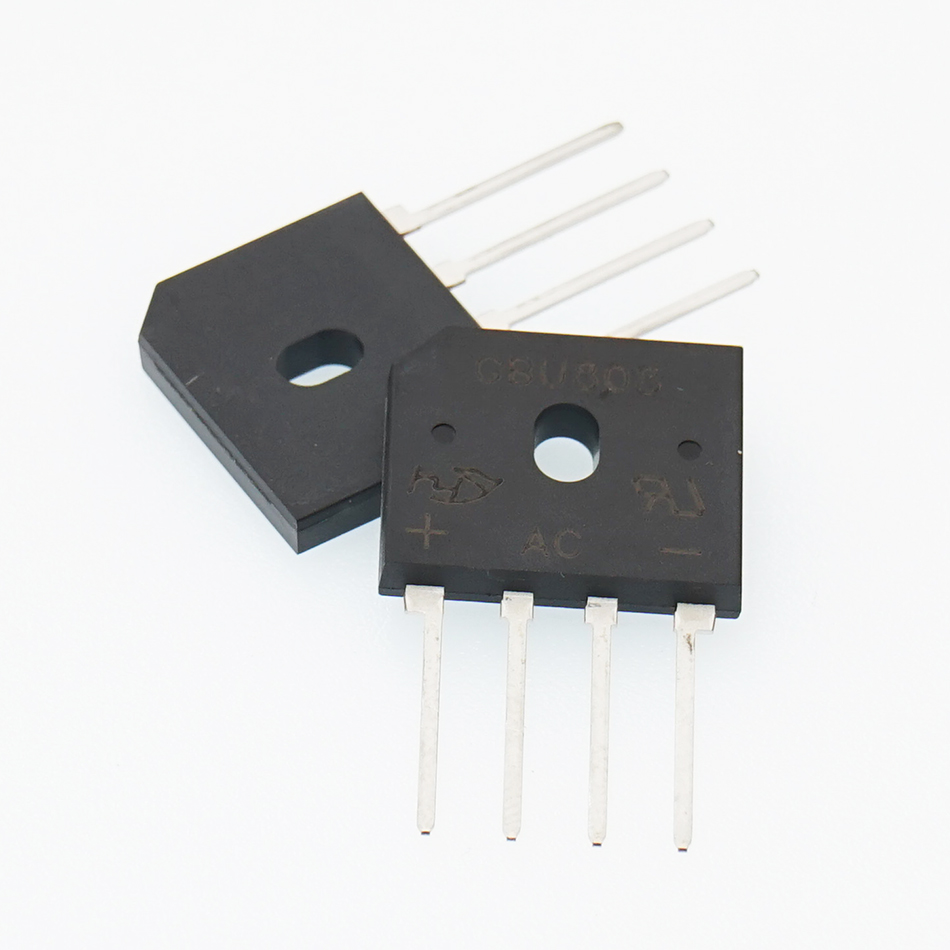

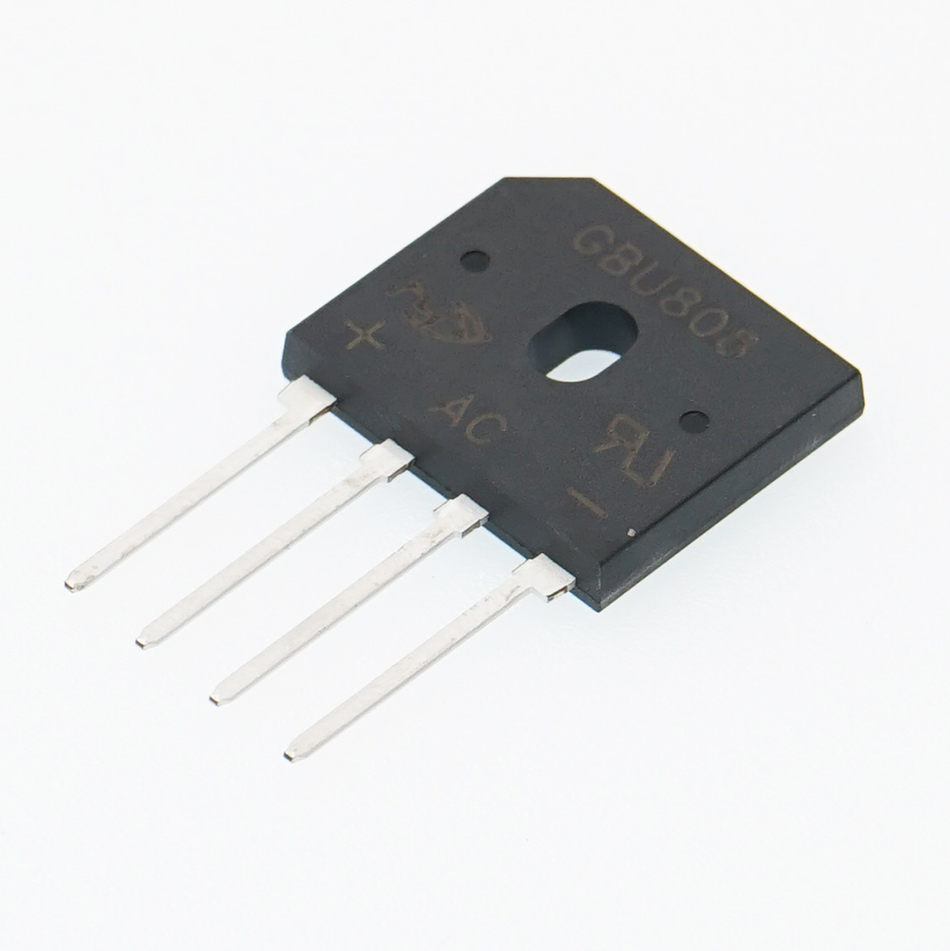

Glass Passivated Bridge Rectifiers Reverse Voltage - 50 to 1000 Volts Forward Current - 8.0 Amperes Manufacture Fetures Applications Diode GBU808
GBU/IF:8A/ Vol:800V/ VF@IF:4A=>1V/ Tj:-55~150ºC/
Features :
• Glass passivated chip
• Low forward voltage drop
• Ideal for printed circuit board
• High surge current capability
Mechanical Data :
• Polarity: Symbol marked on body
• Mounting position: Any
• AEC-Q101 qualified
Applications :
• General purpose use in AC/DC bridge full wave rectification, for SMPS, lighting ballaster, adapter, etc.
