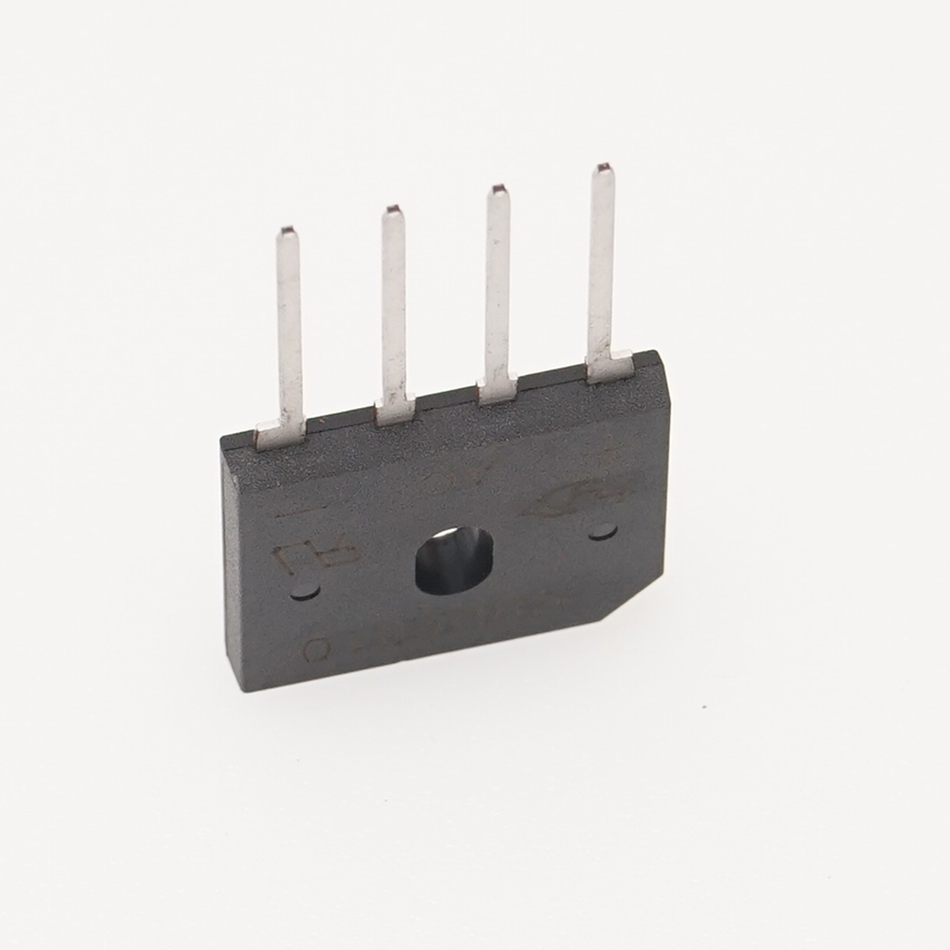

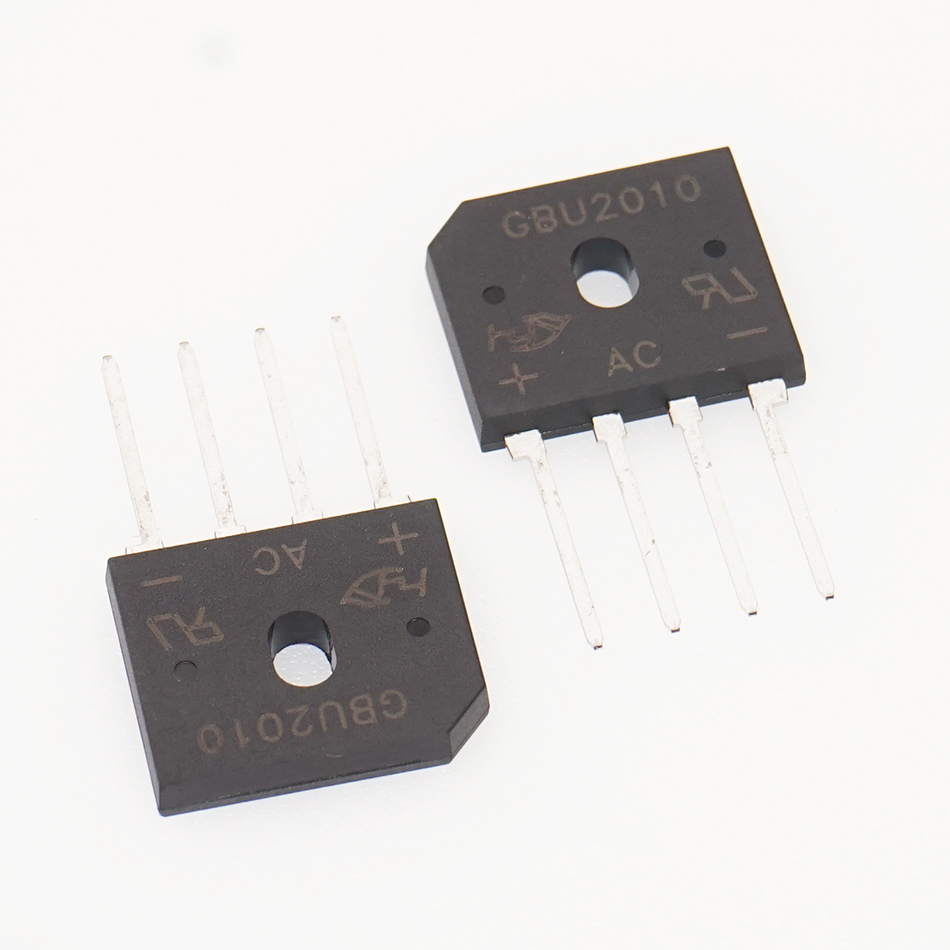

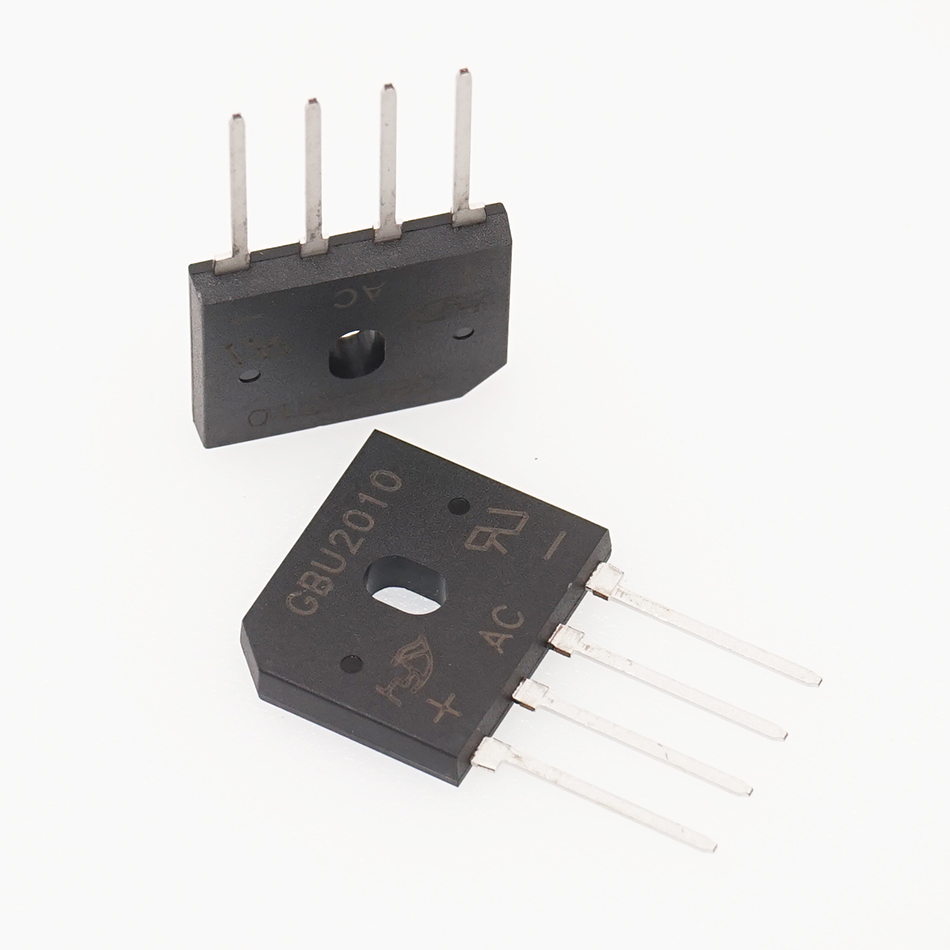

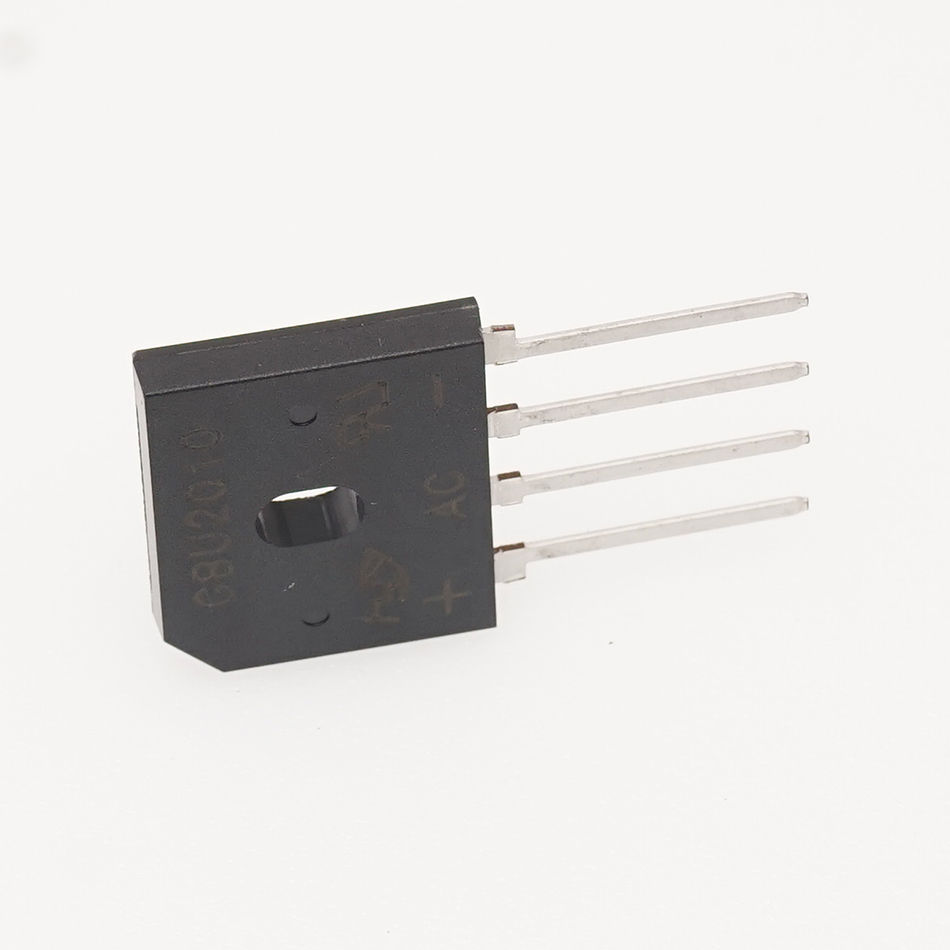

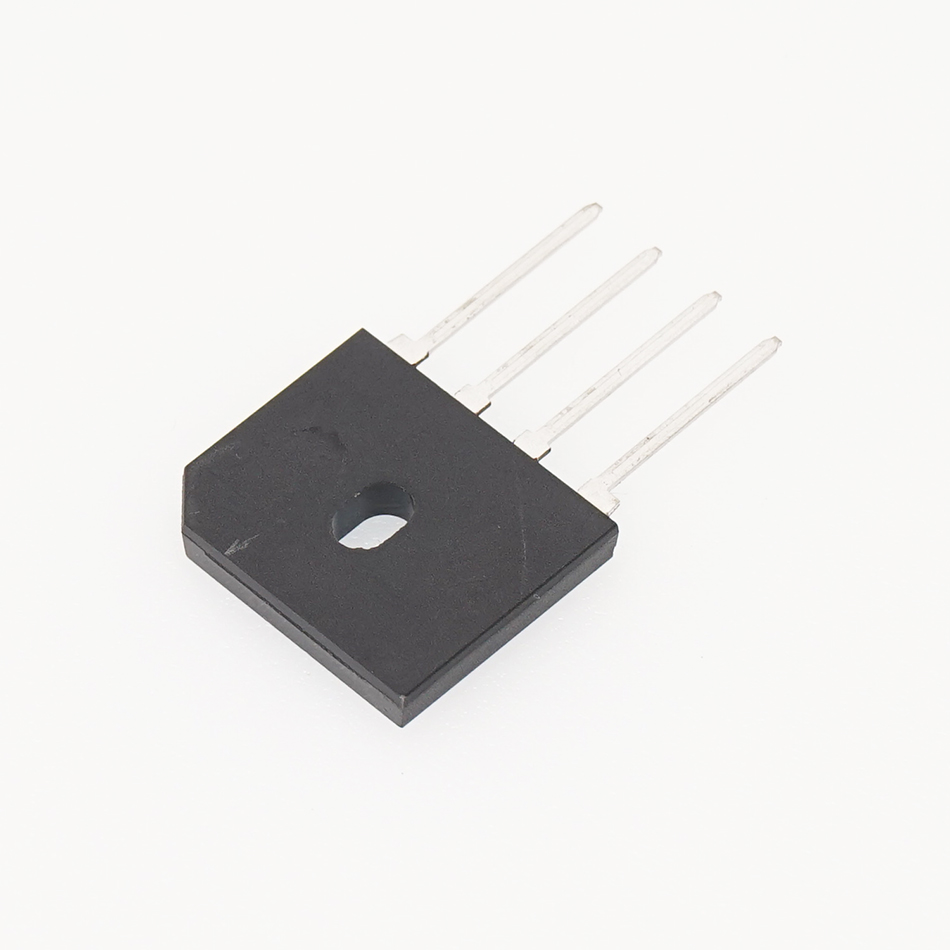

Glass Passivated Bridge Rectifiers Manufacture Fetures Applications GBU2010 Reverse Voltage - 50 to 1000 Volts
| Customization: | Available |
|---|---|
| Encapsulation Structure: | GBU |
| Application: | AC/DC bridge full wave rectification |
- Parameters
| Customization: | Available |
|---|---|
| Encapsulation Structure: | GBU |
| Application: | AC/DC bridge full wave rectification |
Product Description
Glass Passivated Bridge Rectifiers Manufacture Fetures Applications GBU2010 Reverse Voltage - 50 to 1000 Volts
GBU2010
GBU/IF:20A/ Vol:1000V/VF@IF:10A=>1.05/Tj:-55 to +150/
Features :
* Glass passivated chip
* Low forward voltage drop
* Ideal for printed circuit board
* High surge current capability
Mechanical Data :
* Polarity: Symbol marked on body
* Mounting position: Any
Applications :
General purpose use in AC/DC bridge full wave rectification, for SMPS, lighting ballaster, adapter, etc.
Technical Data :
| Package | GBU |
| VRRM(V) | 1000 |
| IO(A) | 20 |
| IFSM(A) | 260 |
| VF(V) | 1.05 |
| IR(uA) | 5 |
| AEC-Q101 Qualified | - |
