Glass Passivated Bridge Rectifiers GBU1508 Manufacture Fetures Applications Reverse Voltage - 50 to 1000 Volts
| Customization: | Available |
|---|---|
| Encapsulation Structure: | GBU |
| Application: | AC/DC bridge |
- Parameters
| Customization: | Available |
|---|---|
| Encapsulation Structure: | GBU |
| Application: | AC/DC bridge |
Model NO.
GBU1508
Certification
RoHS, CE, ISO, CCC
Luminous Intensity
Standard
Structure
Planar
Material
Silicon
Features1
Extremely Low Switching Loss
Features2
Excellent Stability and Uniformity
Features3
100% Avalanche Tested
Features4
Built-in ESD Diode
Application1
Switch Mode Power Supply (SMPS)
Application2
Power Factor Correction (Pfc)
Application3
Uninterruptible Power Supply (UPS)
Application4
AC to DC Converters
Application5
Telecom
Application6
TV Power & LED Lighting Power
Transport Package
Plastic Package
Specification
Customized
Trademark
HY
Origin
Guangdong, China
Production Capacity
10000 Pieces/Day
Product Description

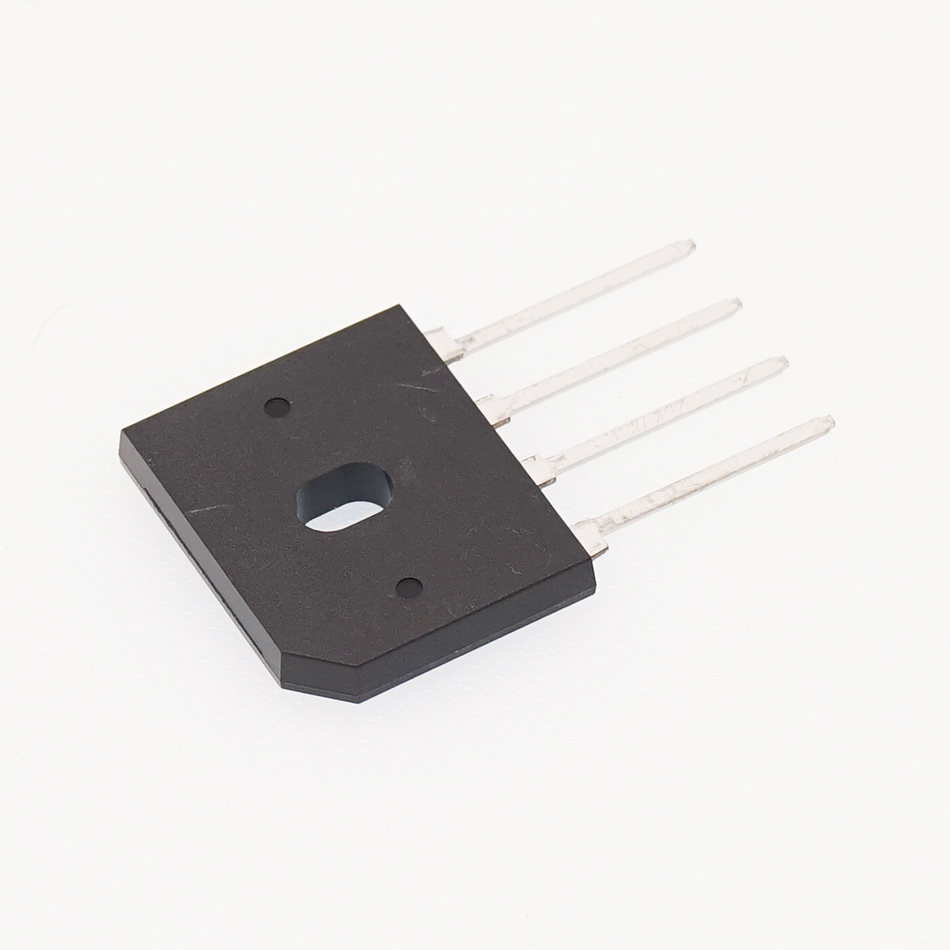

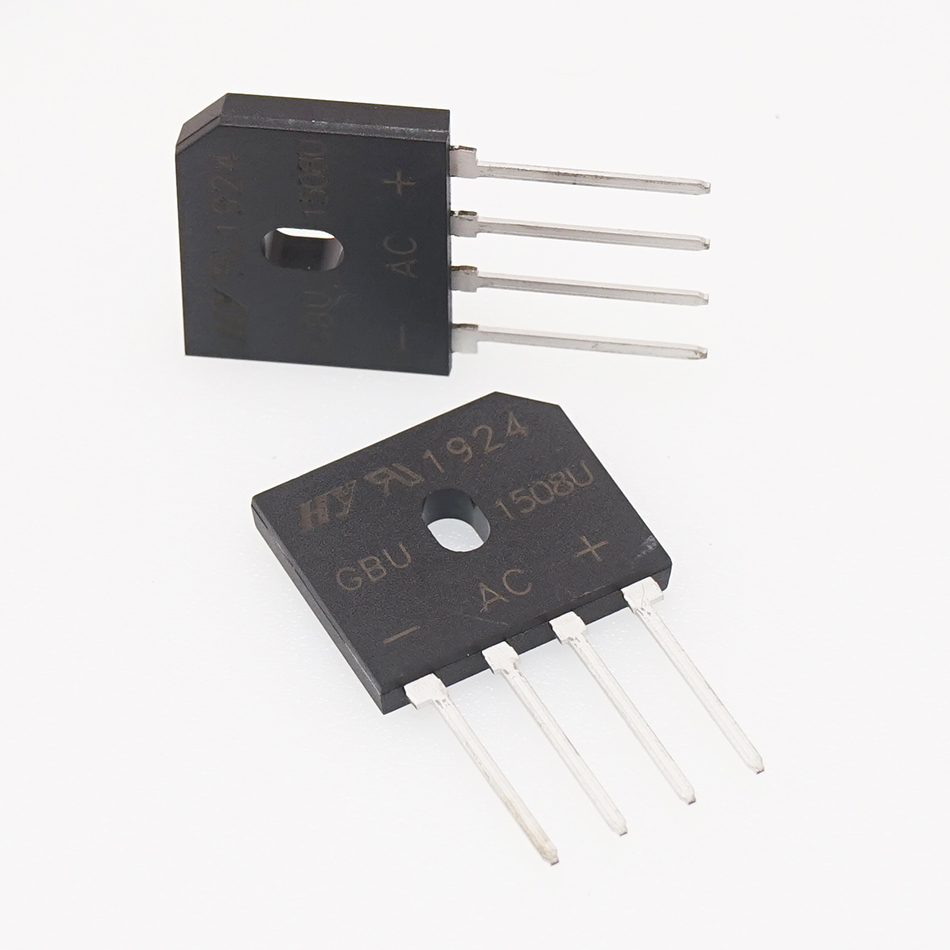

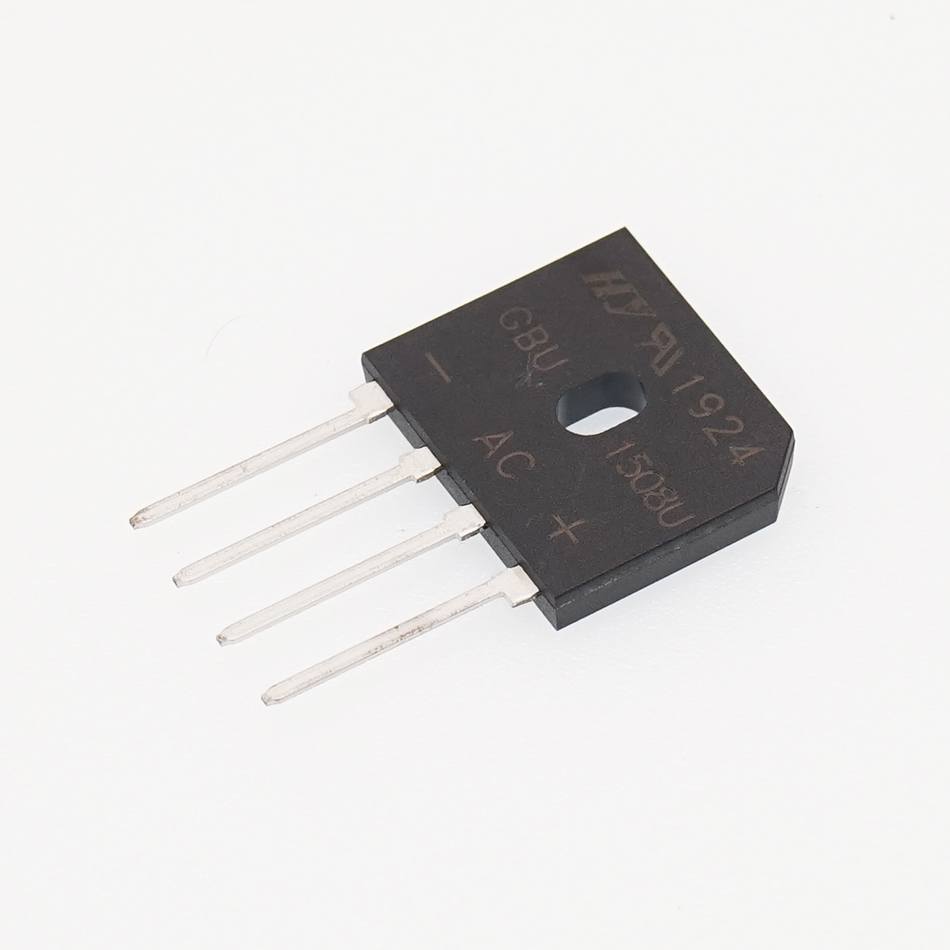

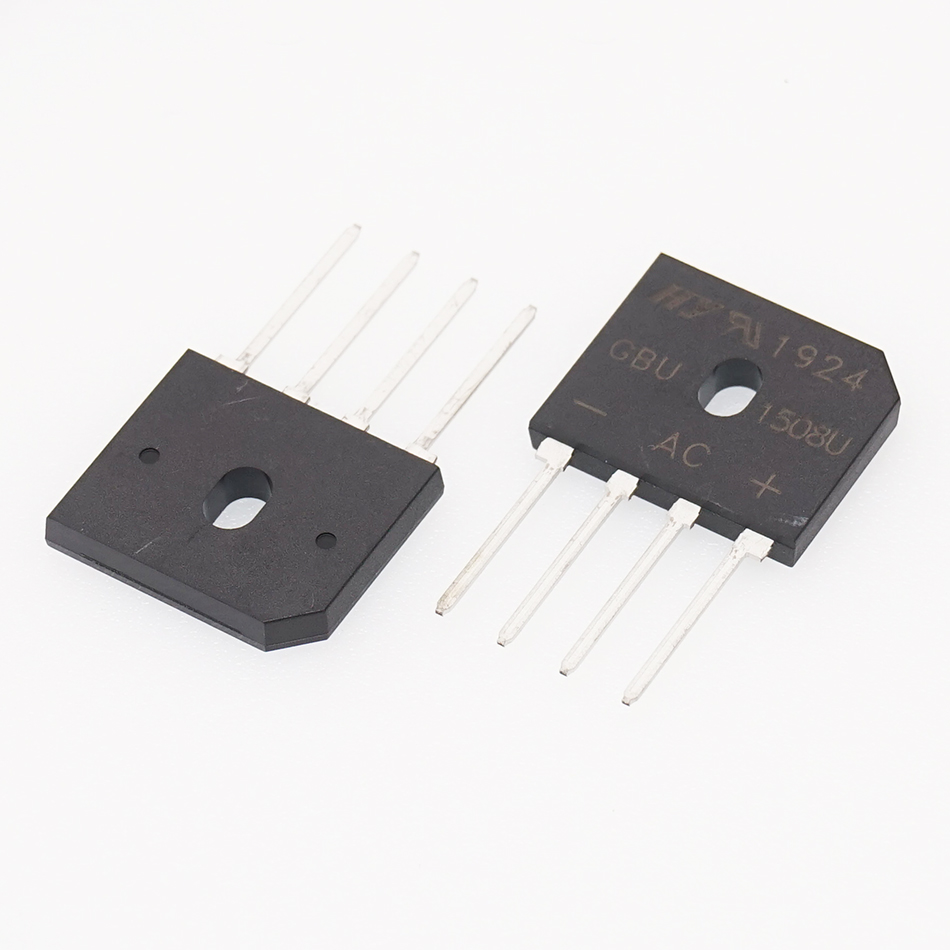

Glass Passivated Bridge Rectifiers GBU1508 Manufacture Fetures Applications Reverse Voltage - 50 to 1000 Volts
GBU1508
GBU/IF:15A/ Vol:800V/ VF@IF:7.5A=>1V/ Tj:-55~150ºC/
Features :
• Glass passivated chip
• Low forward voltage drop
• Ideal for printed circuit board
• High surge current capability
Mechanical Data :
• Polarity: Symbol marked on body
• Mounting position: Any
Applications :
General purpose use in AC/DC bridge full wave rectification, for SMPS, lighting ballaster, adapter, etc.
Previous : Manufacture Glass Passivated Bridge Rectifiers Fetures Applications Diode Reverse Voltage - 50 to 1000 Volts GBU1506
Next : Glass Passivated Bridge Rectifiers Reverse Voltage - 50 to 1000 Volts Forward Current - 20 Amperes GBU2006 GBU
