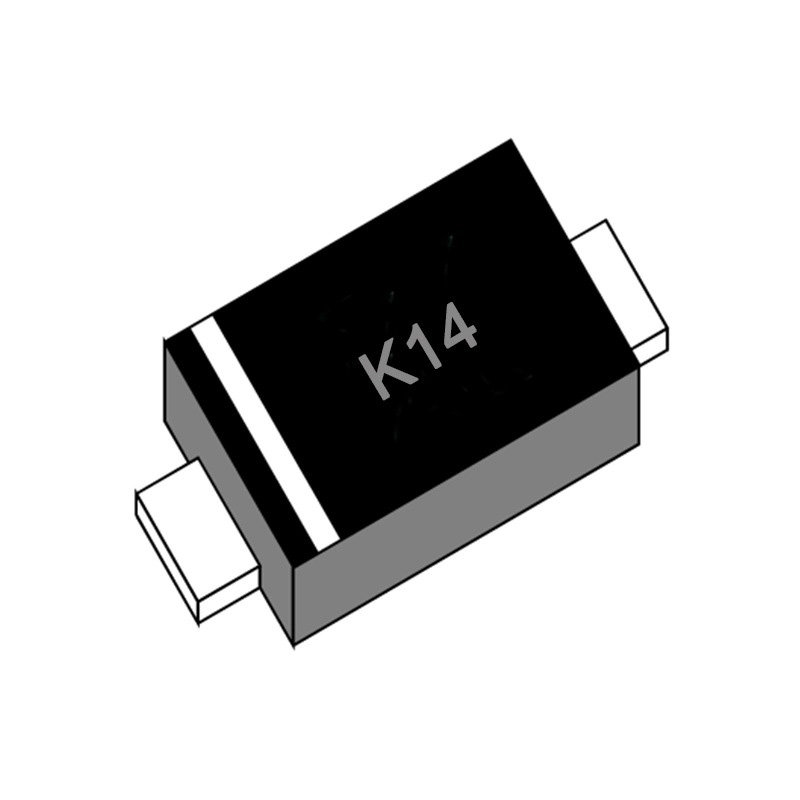

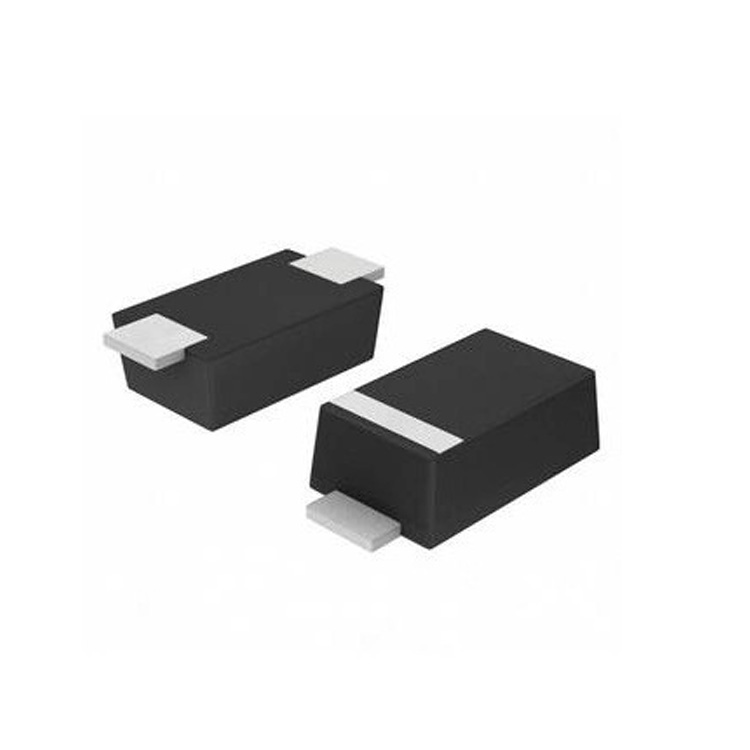

DS12W THRU DS120W SOD-12FL Surface Mount Schottky Barrier Rectifier Diode B5819W K14
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: SOD-123FL
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: SOD-123FL
Basic Info.
| Model NO. | DS14W | Material | Silicon |
| Features1 | Fast switching | Features2 | These diodes are also available in other case |
| Features3 | Ideal for Printed Circuit Board | Transport Package | Plastic Package |
| Specification | DS14W SOD-123 | Origin | Guangdong, China |
| Production Capacity | 10000 Pieces/Day |
Product Description
Product Description
Part Name

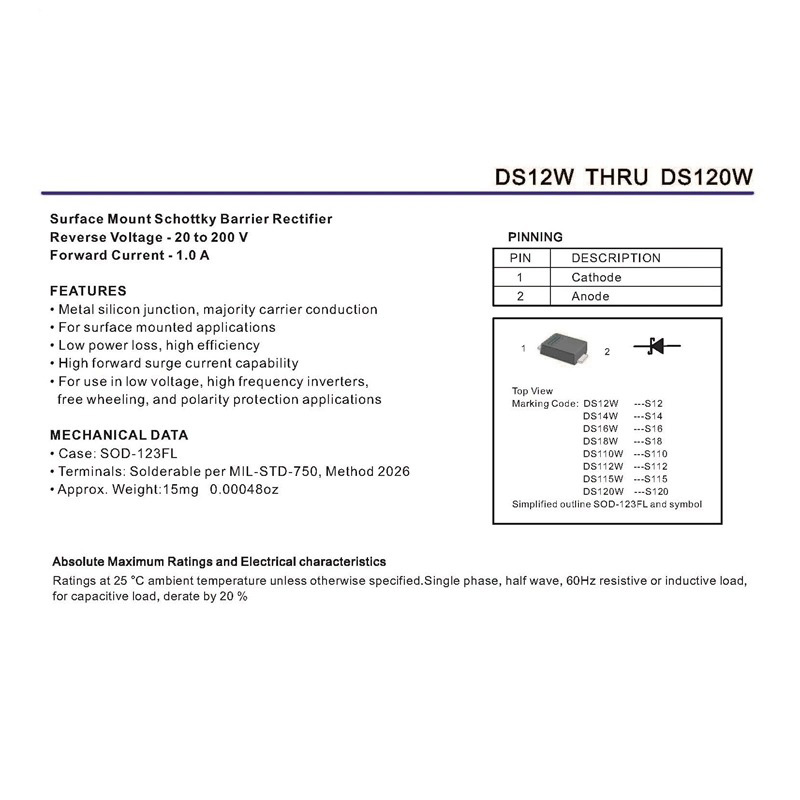

DS12W THRU DS120W SOD-12FL Surface Mount Schottky Barrier Rectifier Diode
Features
• For surface mounted applications
• Low power loss, high efficiency
• High forward surge current capability
• For use in low voltage, high frequency inverters,free wheeling, and polarity protection applications
•Metal silicon junction, majority carrier conduction
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
