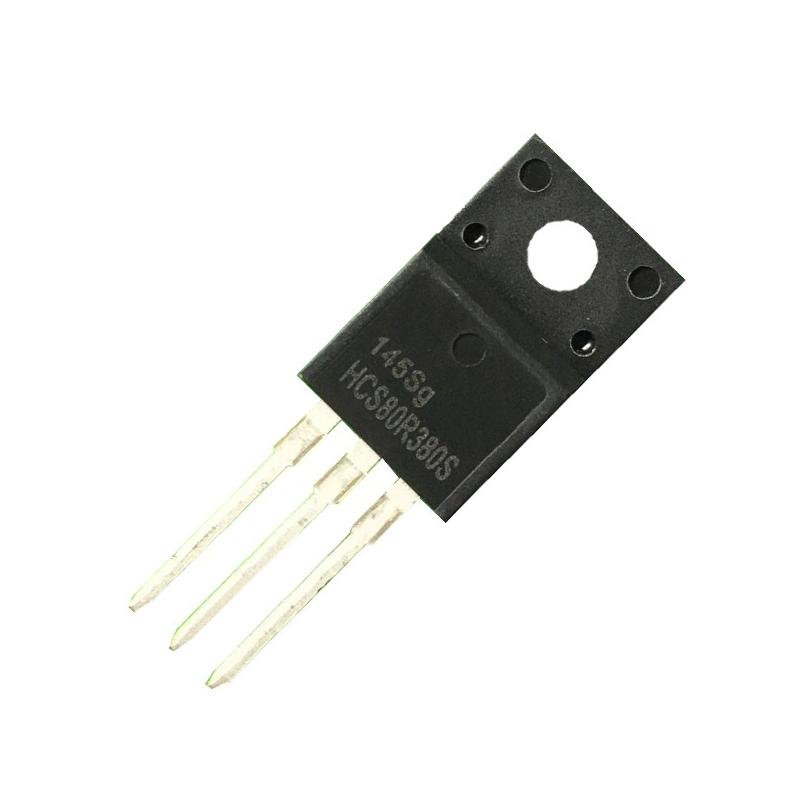

800V/13A 380mΩ HCS80R380S N-Channel Advanced Power Mosfet
Certification: RoHS, CE, ISO, CCC
Shape: GT
Shielding Type: Remote Cut-Off Shielding Tube
Cooling Method: Naturally Cooled Tube
Function: High Back Pressure Transistor, Microwave Transistor, Switch Transistor
Working Frequency: High Frequency
- Parameters
Certification: RoHS, CE, ISO, CCC
Shape: GT
Shielding Type: Remote Cut-Off Shielding Tube
Cooling Method: Naturally Cooled Tube
Function: High Back Pressure Transistor, Microwave Transistor, Switch Transistor
Working Frequency: High Frequency
Basic Info.
| Model NO. | HCS80R380S | Structure | Planar |
| Encapsulation Structure | Chip Transistor | Power Level | High Power |
| Material | Silicon | Features1 | Extremely Low Switching Loss |
| Features2 | Excellent Stability and Uniformity | Features3 | 100% Avalanche Tested |
| Features4 | Built-in ESD Diode | Application1 | Switch Mode Power Supply (SMPS) |
| Application3 | Power Factor Correction (Pfc) | Application4 | Uninterruptible Power Supply (UPS) |
| Application5 | AC to DC Converters | Application6 | Telecom, Solar |
| Transport Package | Plastic Package | Origin | Guangdong, China |
| Production Capacity | 12000 Pieces/Day |
Product Neme
N-Channel Advanced Power Mosfet 800V/13A 380mΩ HCS80R380S
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
