36V Single Supply, 7MHz Bandwidth, RRO Op-amps TP2272-SR SOP8 IC

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: SOP8

  • Parameters

    Encapsulation Structure: Chip Transistor

    Application: LED Drive Power Supply, Medical Power Supply

    Certification: RoHS, CE, ISO, CCC

    Luminous Intensity: Standard

    Color: Black

    Structure: SOP8

Basic Info.

Model NO.TP2271/TP2272 /TP2274MaterialSilicon
Features1Glass Passivated ChipFeatures2Low Forward Voltage Drop
Features3Ideal for Printed Circuit BoardFeatures4High Surge Current Capability
Transport PackagePlastic PackageOriginGuangdong, China
Production Capacity10000 Pieces/Day

Product Description

Part Name

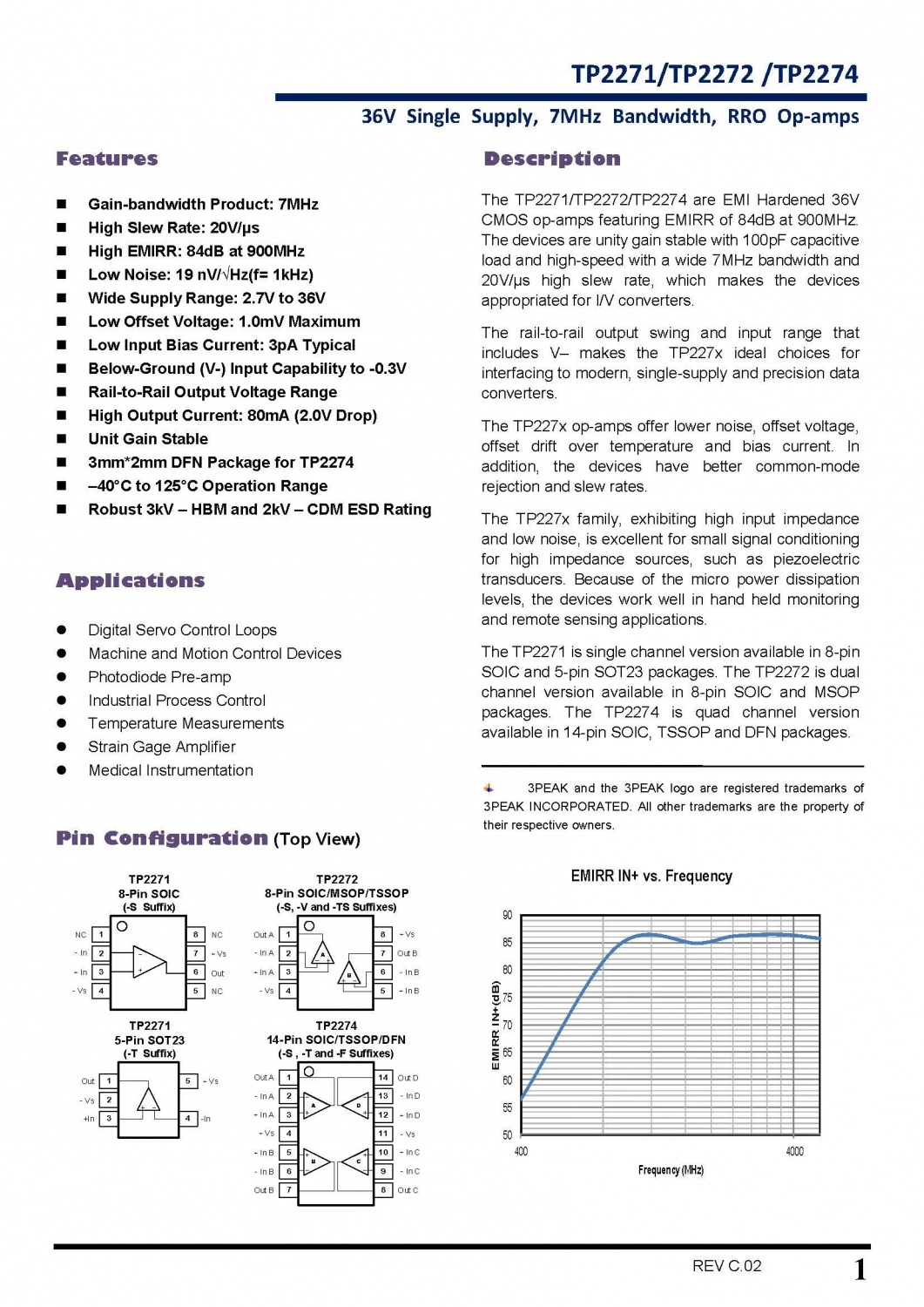

36V Single Supply, 7MHz Bandwidth, RRO Op-amps TP2272-SR  SOP8 IC TP2271/TP2272 /TP2274


Features Gain-bandwidth Product: 7MHz

1.High Slew Rate: 20V/μs

2.High EMIRR: 84dB at 900MHz

3.Low Noise: 19 nV/√Hz(f= 1kHz)

4. Wide Supply Range: 2.7V to 36V

5.Low Offset Voltage: 1.0mV Maximum

6. Low Input Bias Current: 3pA Typical

7.Below-Ground (V-) Input Capability to -0.3V

8.Rail-to-Rail Output Voltage Range

9.High Output Current: 80mA (2.0V Drop)

10.Unit Gain Stable

11.3mm*2mm DFN Package for TP2274

12.-40°C to 125°C Operation Range

13.Robust 3kV - HBM and 2kV - CDM ESD Rating



Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.

The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.

The company's core product lines include:

1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;

2. Low voltage MOS; super junction MOS

3. SIC diode; SIC MOSFET

Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.

36V Single Supply, 7MHz Bandwidth, RRO Op-amps TP2272-SR SOP8 IC
