3-Port Gigabit Ethernet Switchwith RGMII/MII/RMII Interface and IEEE 1588v2 IC
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
- Parameters
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Basic Info.
| Model NO. | KSZ9563R | Specification | SOT-23 TO-92 SC70 |
| Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Part Name

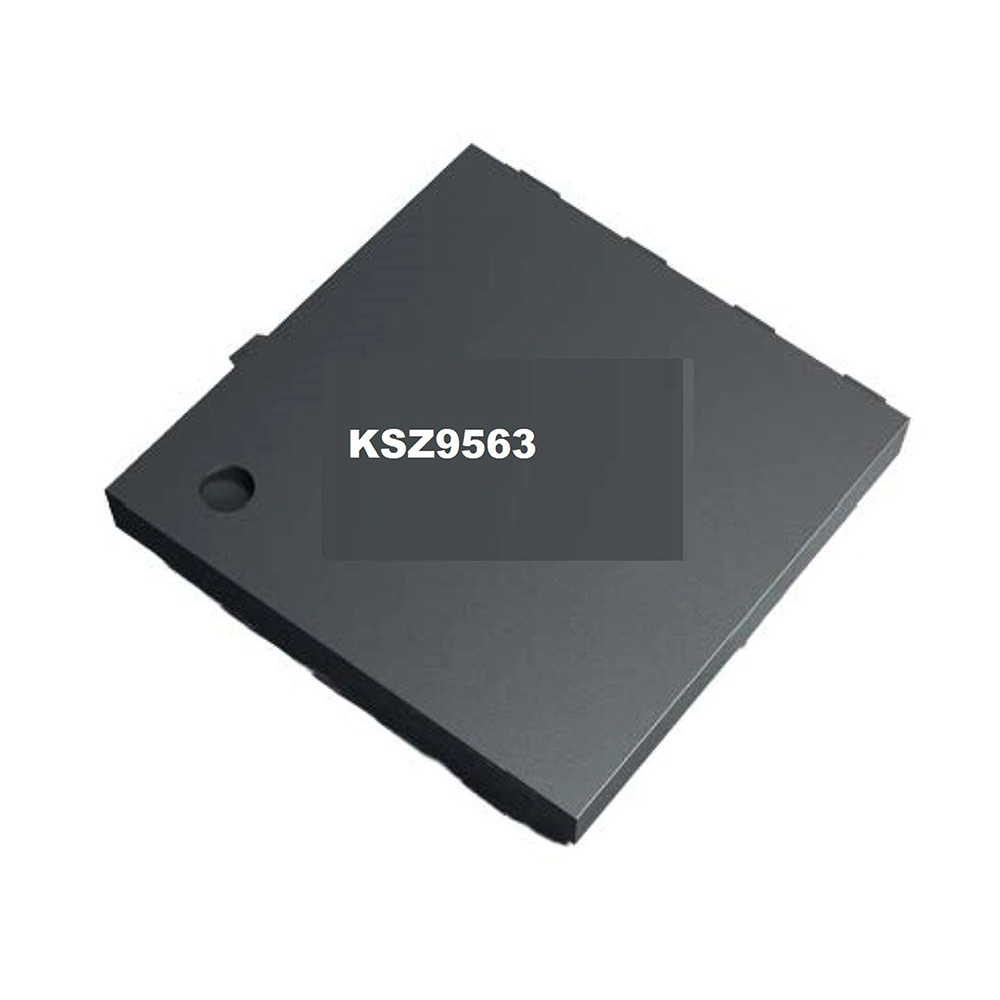

3-Port Gigabit Ethernet Switchwith RGMII/MII/RMII Interface and IEEE 1588v2 IC KSZ9563R

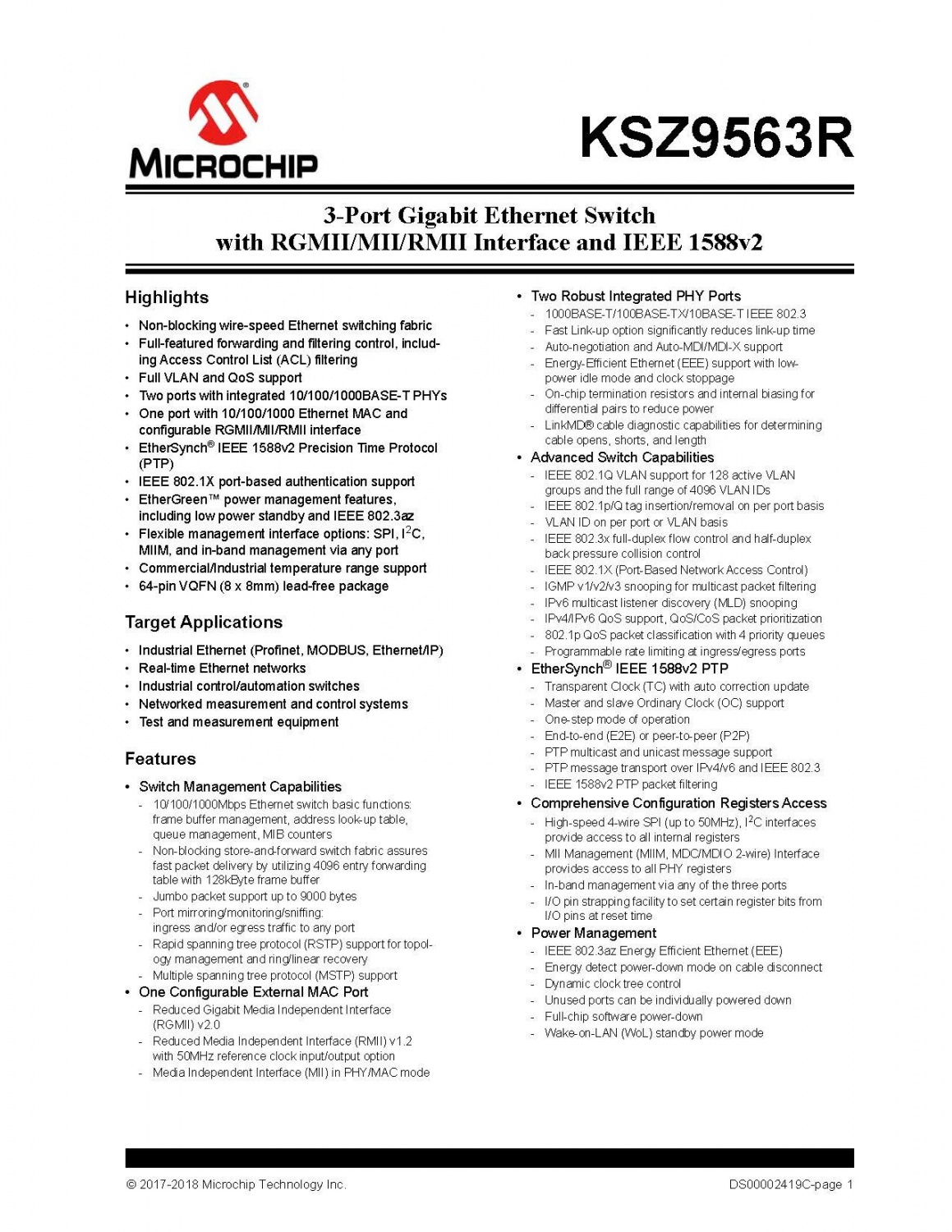

Features
• Switch Management Capabilities
- 10/100/1000Mbps Ethernet switch basic functions: frame buffer management, address look-up table, queue management, MIB counters
- Non-blocking store-and-forward switch fabric assures fast packet delivery by utilizing 4096 entry forwarding table with 128kByte frame buffer
- Jumbo packet support up to 9000 bytes
- Port mirroring/monitoring/sniffing:ingress and/or egress traffic to any port
- Rapid spanning tree protocol (RSTP) support for topology management and ring/linear recovery
- Multiple spanning tree protocol (MSTP) support
• One Configurable External MAC Port
- Reduced Gigabit Media Independent Interface (RGMII) v2.0
- Reduced Media Independent Interface (RMII) v1.2 with 50MHz reference clock input/output option
- Media Independent Interface (MII) in PHY/MAC mode
Applications
• Industrial Ethernet (Profinet, MODBUS, Ethernet/IP)
• Real-time Ethernet networks
• Industrial control/automation switches
• Networked measurement and control systems
• Test and measurement equipment
