Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Basic Info.
Model NO. | LTC3536 | Specification | SOT-23 TO-92 SC70 |
Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Part Name

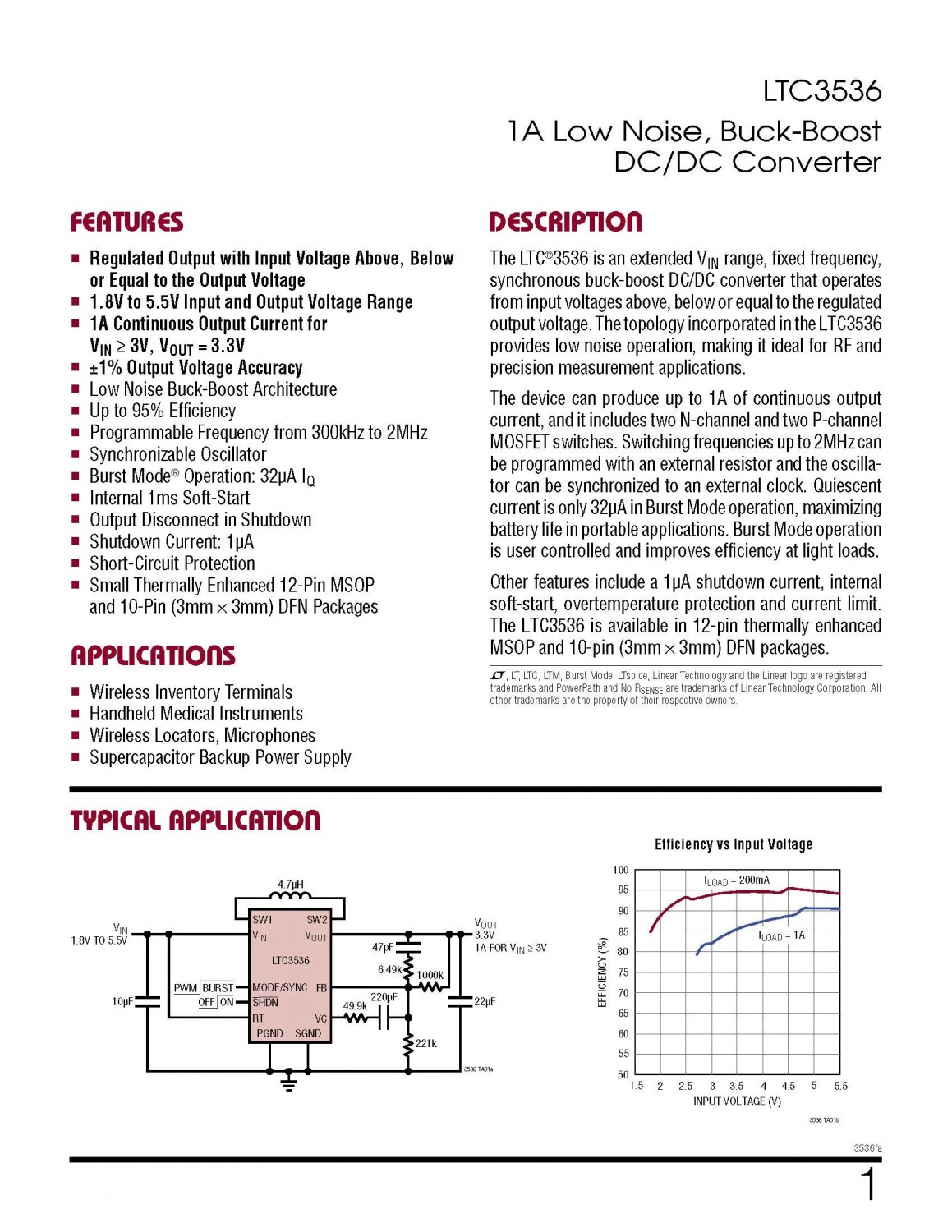

1A Low Noise, Buck-Boost DC/DC Converter LTC3536
FEATURES
1.Regulated Output with Input Voltage Above, Below or Equal to the Output Voltage
2.1.8V to 5.5V Input and Output Voltage Range
3. 1A Continuous Output Current for VIN ≥ 3V, VOUT = 3.3V
4. ±1% Output Voltage Accuracy
5. Low Noise Buck-Boost Architecture
6. Up to 95% Efficiency
7. Programmable Frequency from 300kHz to 2MHz
8. Synchronizable Oscillator
9. Burst Mode® Operation: 32μA IQ Internal 1ms Soft-Start
10. Output Disconnect in Shutdown
11. Shutdown Current: 1μA
12. Short-Circuit Protection
13.Small Thermally Enhanced 12-Pin MSOP and 10-Pin (3mm × 3mm) DFN Packages
APPLICATIONS
1. Wireless Inventory Terminals
2. Handheld Medical Instruments
3. Wireless Locators, Microphones
4. Supercapacitor Backup Power Supply
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.

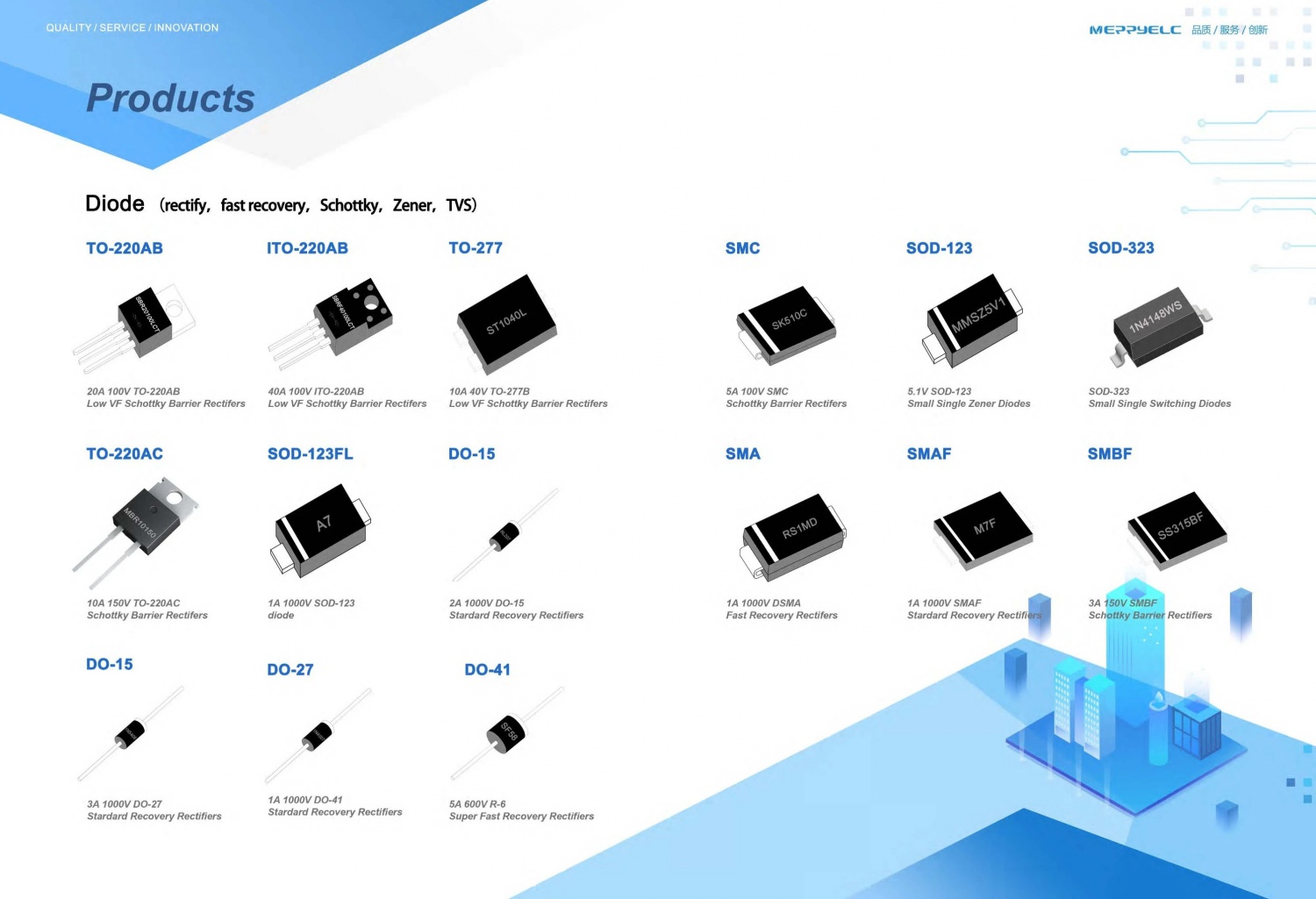

The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
