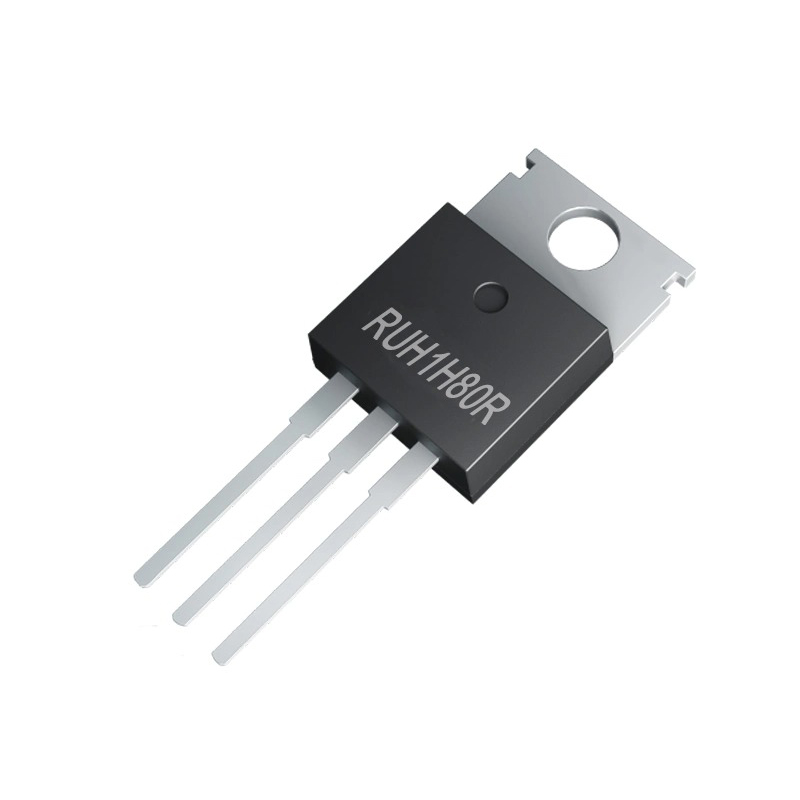

100V/80A Ruh1h80r N-Channel Advanced Power Mosfet
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: To220
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: To220
Basic Info.
| Model NO. | RUH1H80R | Material | Silicon |
| Features1 | Glass Passivated Chip | Features2 | Low Forward Voltage Drop |
| Features3 | Ideal for Printed Circuit Board | Features4 | High Surge Current Capability |
| Transport Package | Plastic Package | Origin | Guangdong, China |
| Production Capacity | 10000 Pieces/Day |
Product Description

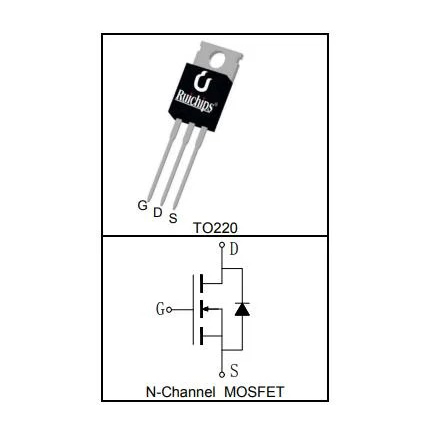

N-Channel Advanced Power MOSFET 100V/80A RUH1H80R
Features
1.100V/80A
2.RDS (ON) =6.5mΩ(Typ.) @ VGS=10V
3.RDS (ON) =9mΩ(Typ.)@VGS=4.5V
4.Ultra Low On-Resistance
5.Fast Switching Speed
6.Lead Free and Green Available
7.100% avalanche tested
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
