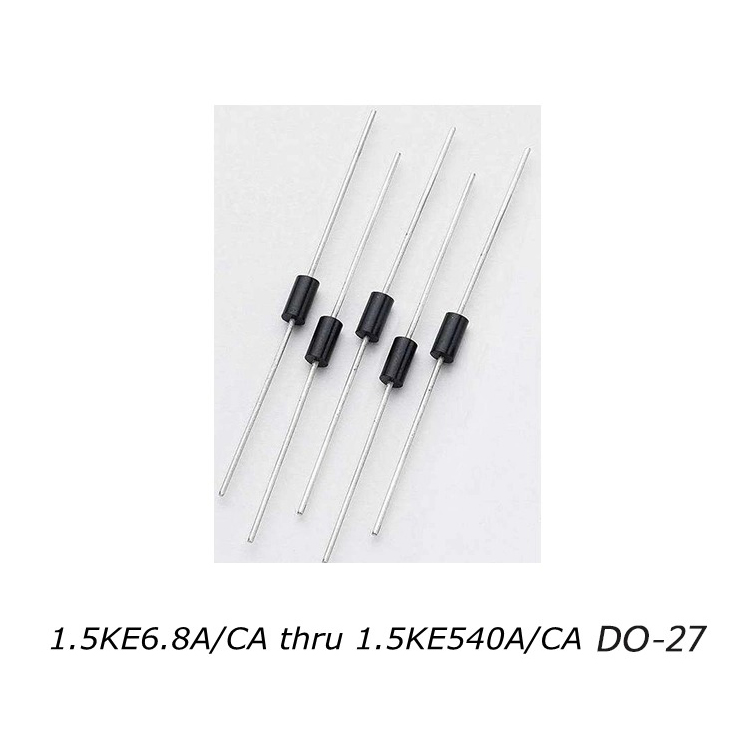

1.5KE200A TVS Diode 1.5KE6.8A/CA thru 1.5KE540A/CA 1N6267A thru 1N6303A Transient Voltage Suppressors Diode
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black

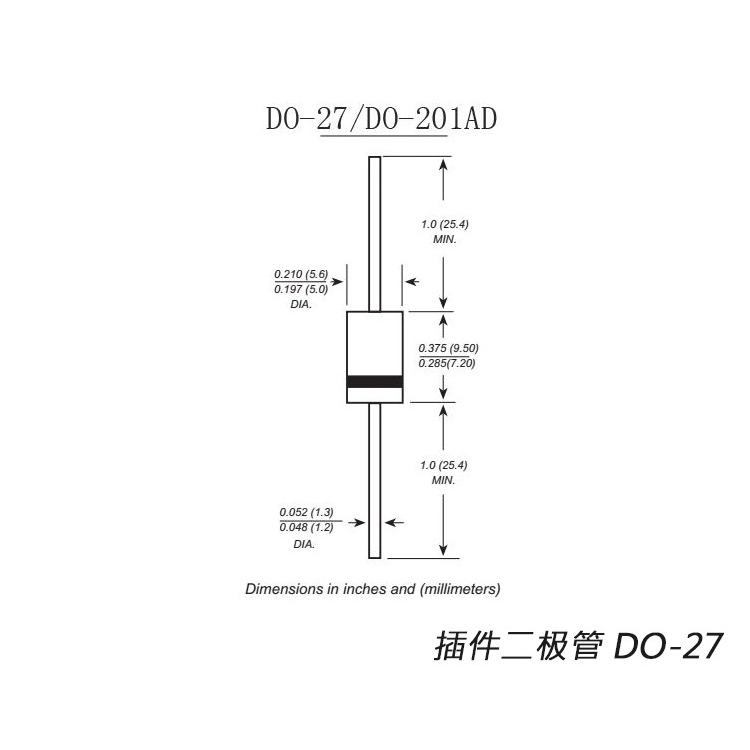

Structure: DO-27
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: DO-27
Basic Info.
| Model NO. | 1.5KE200A | Material | Silicon |
| Features1 | Low reverse leakage current | Features2 | Low Forward Voltage Drop |
| Features3 | Meet UL flammability classification 94V-0 | Features4 | High Surge Current Capability |
| Transport Package | Plastic Package | Specification | 1.5KE200A |
| Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Part Name
1.5KE200A TVS Diode TVS Diode 1.5KE6.8A/CA thru 1.5KE540A/CA 1N6267A thru 1N6303A Transient Voltage Suppressors Diode

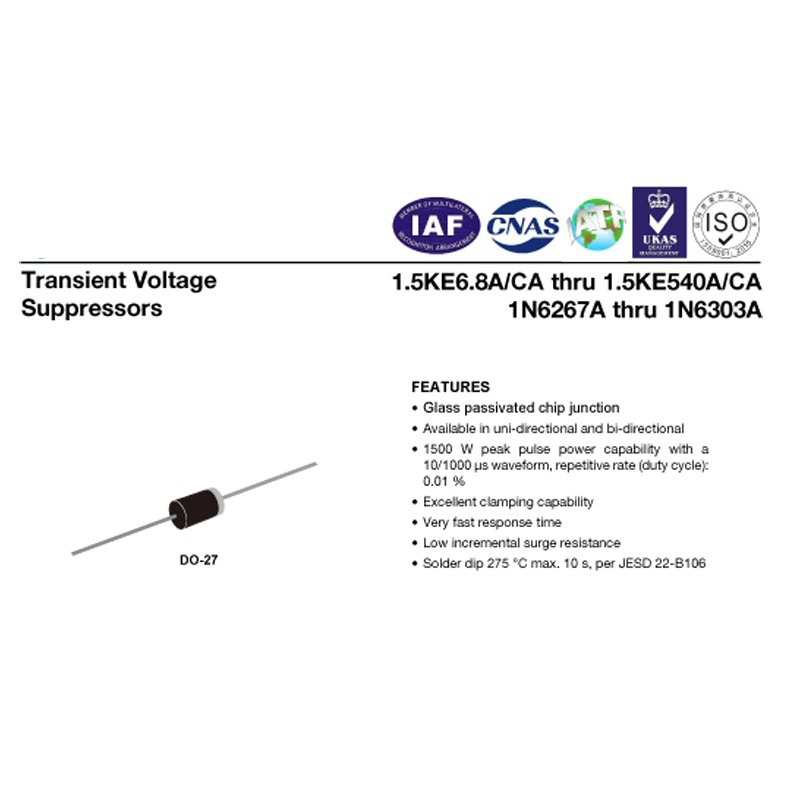

Features
•Glass passivated chip junction
•Available in uni-directional and bi-directional
•1500 W peak pulse power capability with a10/1000 μs waveform, repetitive rate (duty cycle):0.01 %
•Excellent clamping capability
•Very fast response time
•Low incremental surge resistance
•Solder dip 275 °C max. 10 s, per JESD 22-B106
Dongguan Merry Electronics Co., Ltd.
was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Meirui's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
