Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Basic Info.
Model NO. | MAX14830 | Specification | PDFN 3.3 x 3.3-8L |
Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Product Description
Part Name

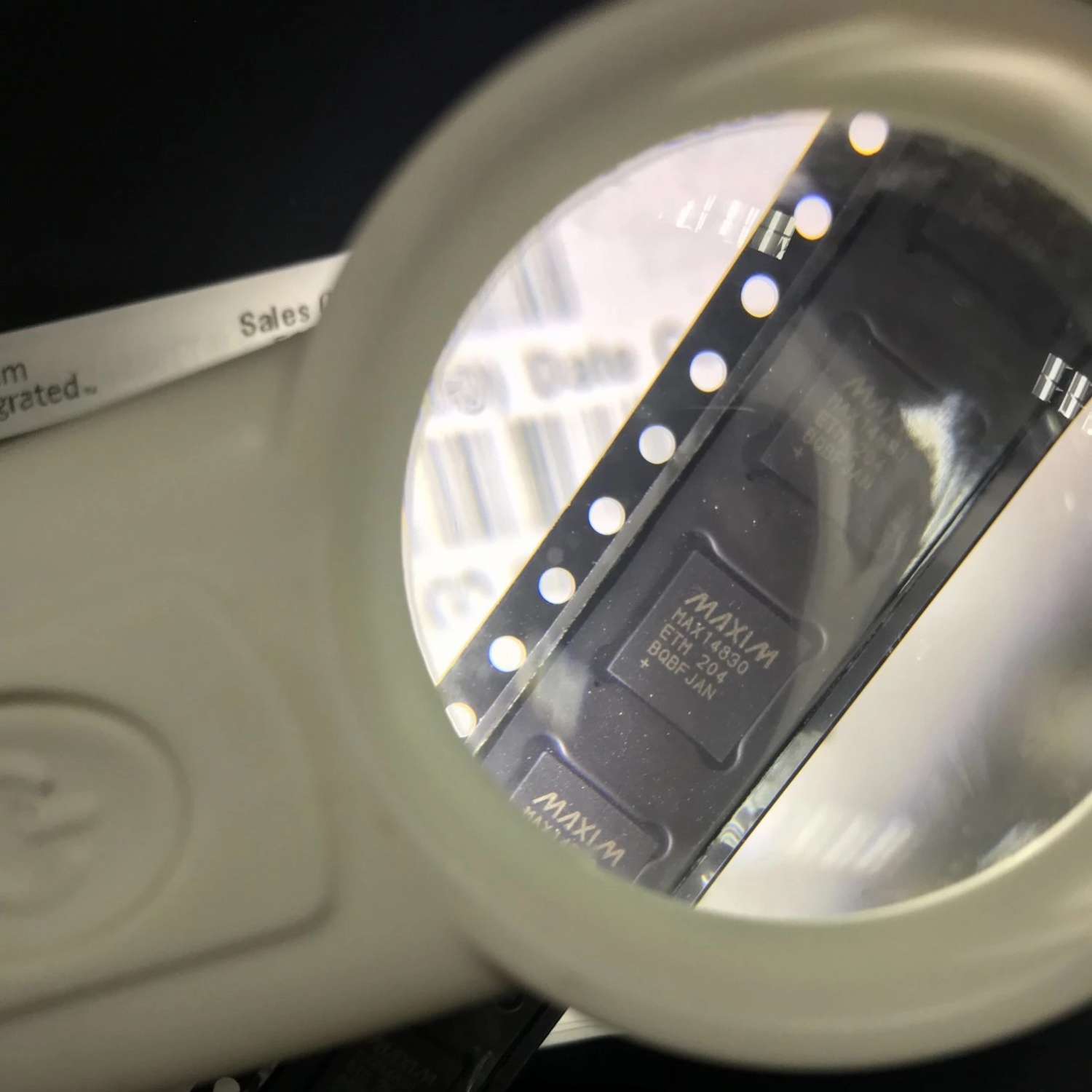

MAX14830 Quad Serial UART with 128-Word FIFOs
Features

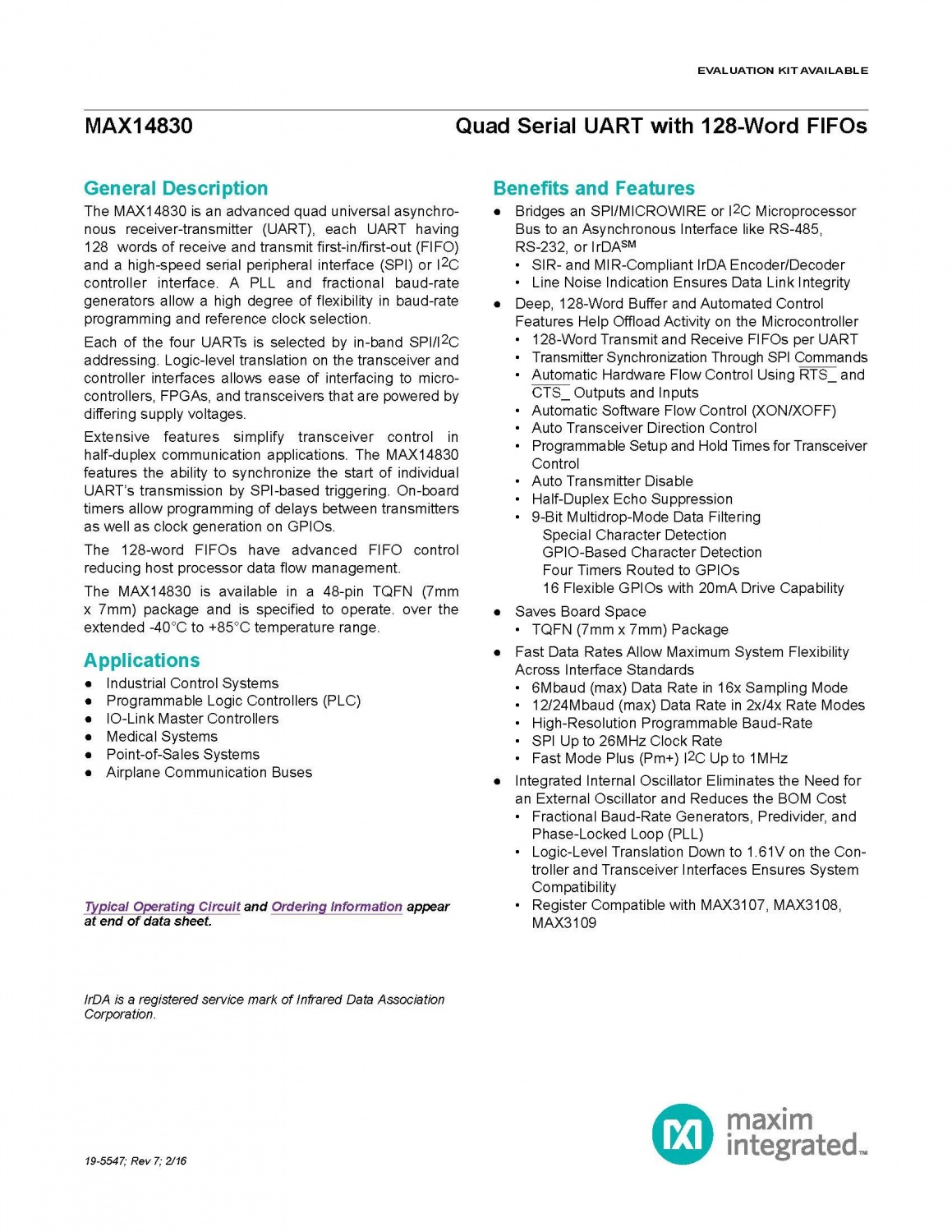

The MAX14830 is an advanced quad universal asynchronous receiver-transmitter (UART), each UART having 128 words of receive and transmit first-in/first-out (FIFO) and a high-speed serial peripheral interface (SPI) or I2C controller interface. A PLL and fractional baud-rate generators allow a high degree of flexibility in baud-rate programming and reference clock selection. Each of the four UARTs is selected by in-band SPI/I2C addressing. Logic-level translation on the transceiver and controller interfaces allows ease of interfacing to microcontrollers, FPGAs, and transceivers that are powered by differing supply voltages.Extensive features simplify transceiver control in half-duplex communication applications. The MAX14830
features the ability to synchronize the start of individual UART's transmission by SPI-based triggering. On-board timers allow programming of delays between transmitters as well as clock generation on GPIOs. The 128-word FIFOs have advanced FIFO control reducing host processor data flow management. The MAX14830 is available in a 48-pin TQFN (7mmx 7mm) package and is specified to operate. over the extended -40°C to +85°C temperature range.
Mechanical Characteristics
Industrial Control Systems
Programmable Logic Controllers (PLC)
IO-Link Master Controllers
Medical Systems
Point-of-Sales Systems
Airplane Communication Buses
