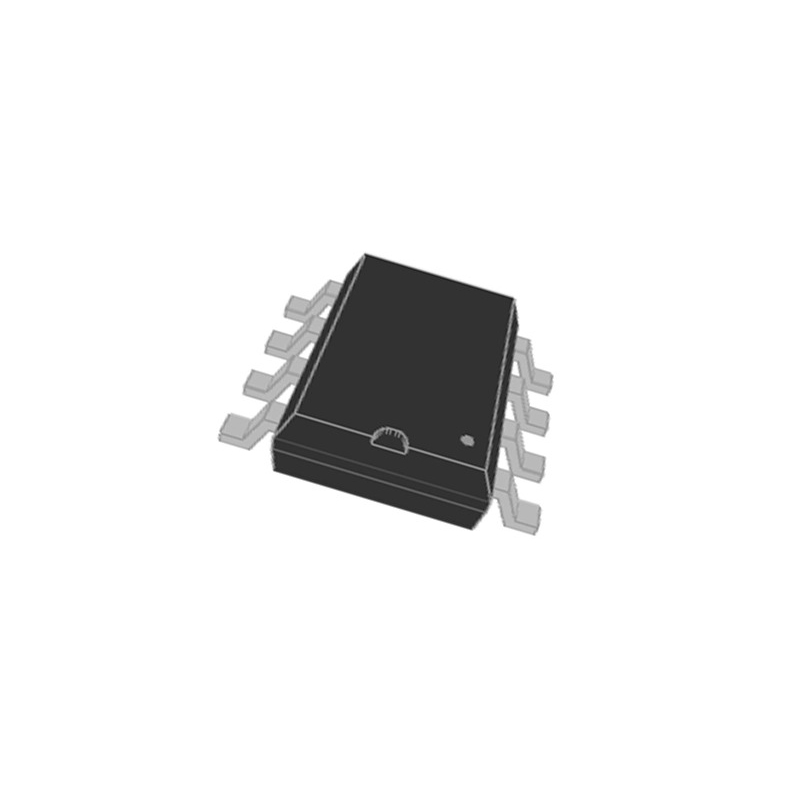

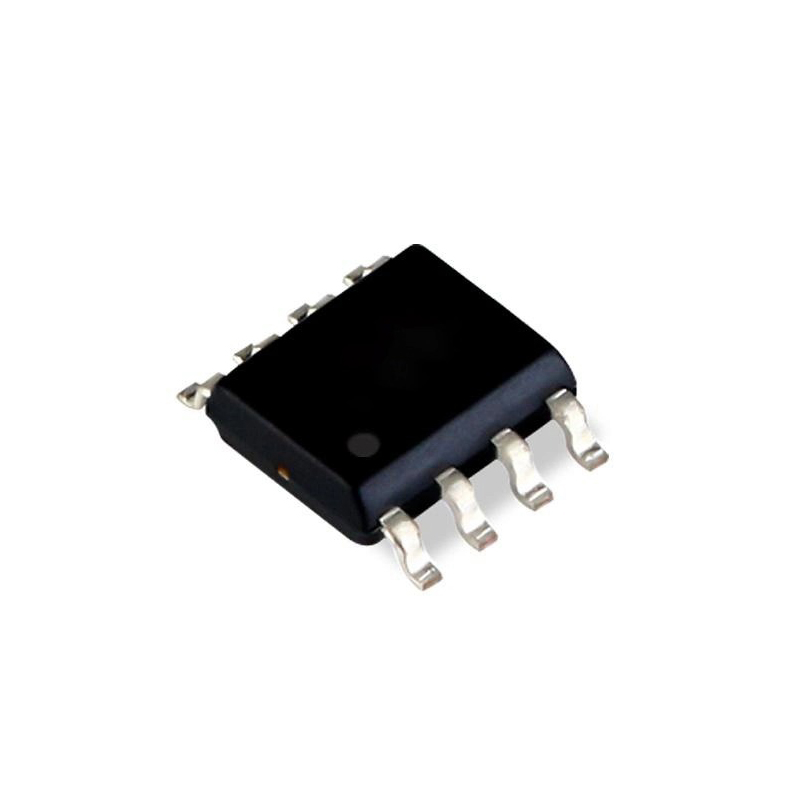

Integrated Circuit maxim integrated MAX4514ESA+T SO-8 Low-Voltage, Low-On-Resistance,SPST, CMOS Analog Switches IC
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black

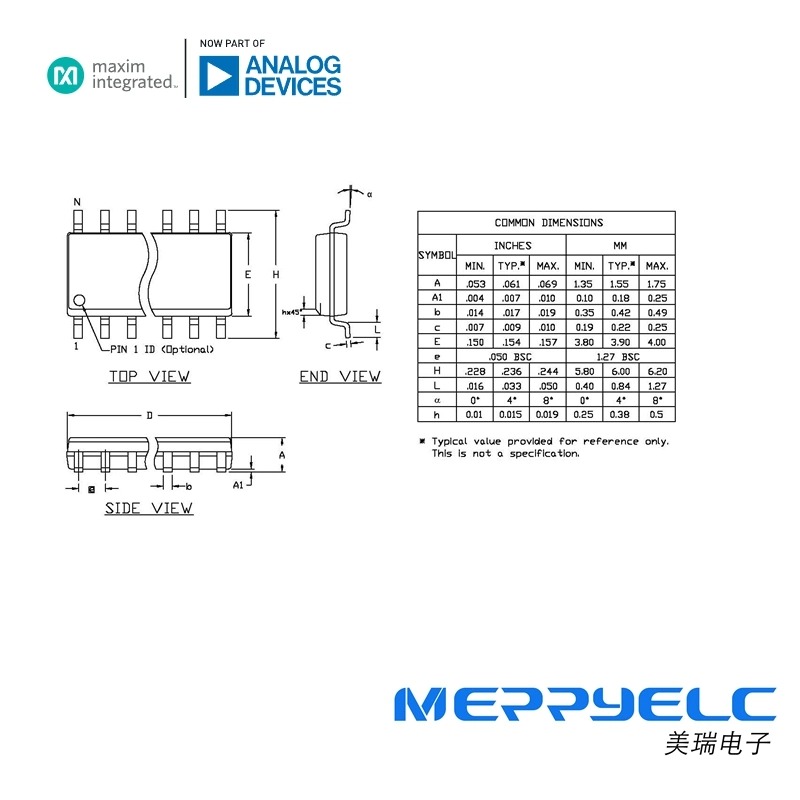

Structure: SO-8
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: SO-8
Basic Info.
| Model NO. | MAX4514ESA+T | Material | Silicon |
| Application1 | Battery-Operated Equipment | Application2 | Audio and Video Signal Routing |
| Application3 | Low-Voltage Data-Acquisition Systems | Application4 | Communications Circuits |
| Application5 | Cellular Phones | Features1 | +2V to +12V Single-Supply Operation Output |
| Features2 | Guaranteed On-Resistance | Features3 | Guaranteed Low Off-Leakage Currents |
| Features4 | Low Charge Injection: 10pC | Features5 | Fast Switching Speed: tON= 150ns, tOFF= 100ns |
| Transport Package | Plastic Package | Specification | MAX4514ESA+T |
| Trademark | maxim | Origin | Guangdong, China |
| Production Capacity | 10000 Pieces/Day |
Part Name
maxim integrated MAX4514ESA+T SO-8 Low-Voltage, Low-On-Resistance,SPST, CMOS Analog Switches IC
Features
Available in SOT23-5 Package
+2V to +12V Single-Supply Operation
Guaranteed On-Resistance:
20Ω with +5V Supply
10Ω with +12V Supply
Guaranteed Low Off-Leakage Currents:
1nA at +25°C
20nA at +85°C
Guaranteed Low On-Leakage Currents:
2nA at +25°C
40nA at +85°C
Low Charge Injection: 10pC
Fast Switching Speed: tON = 150ns, tOFF = 100ns
Break-Before-Make Operation: tON > tOFF at +5V
TTL/CMOS-Logic Compatible with +5V Supply
