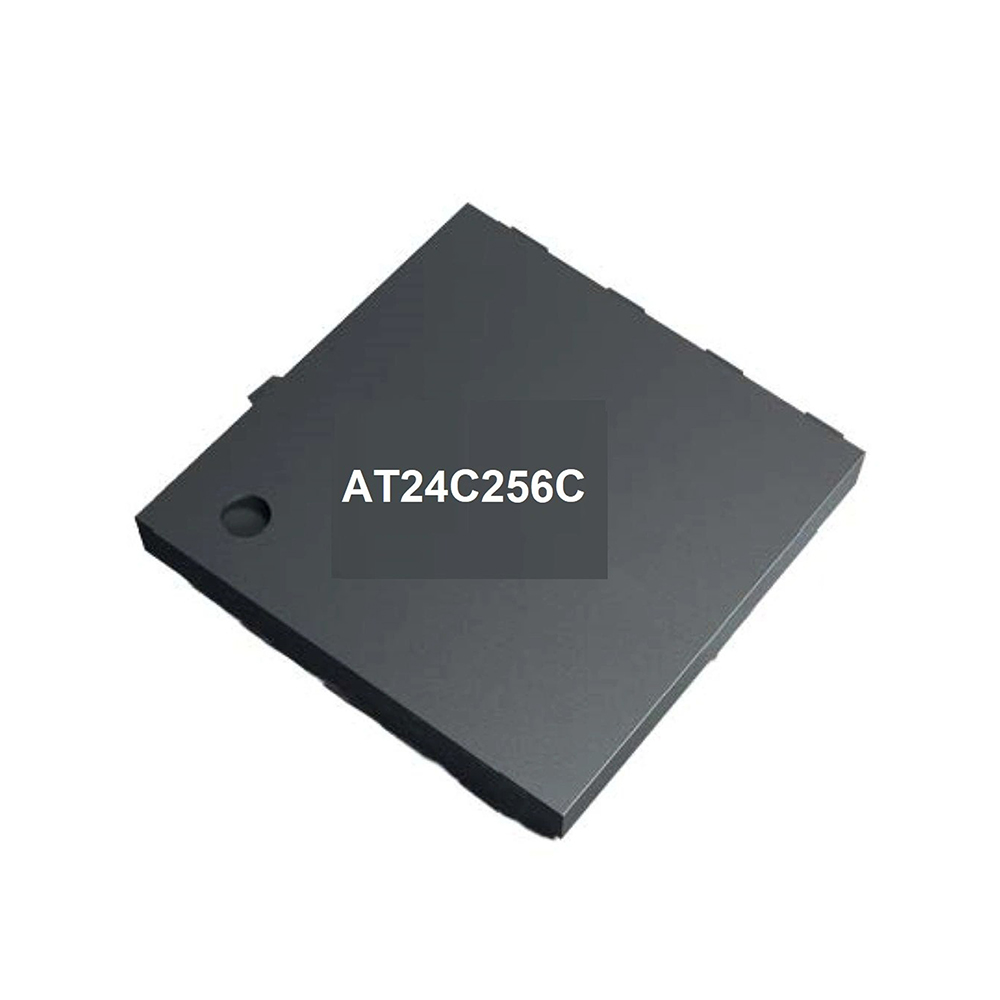

I2C Automotive Temperature Serial EEPROM 128K (16,384 x 8), 256K (32,768 x 8) AT24C256C IC
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
- Parameters
Application: LED Drive Power Supply, Medical Power Supply
Features1: Glass Passivated Chip
Features2: Low Forward Voltage Drop
Features3: Ideal for Printed Circuit Board
Features4: High Surge Current Capability
Transport Package: Plastic Package
Basic Info.
| Model NO. | T24C256C | Specification | PDIP/SOIJ/SOIC/TSSOP |
| Origin | Guangdong, China | Production Capacity | 10000 Pieces/Day |
Product Description
The Atmel® AT24C128C/256C provides 131,072/262,144 bits of Serial Electrically
Erasable and Programmable Read-Only Memory (EEPROM) organized as
16,384/32,768 words of 8 bits each. The device is optimized for use in many
automotive applications where low-power and low-voltage operation are essential.
AT24C128C/256C is available in space-saving 8-lead JEDEC SOIC, 8-lead
TSSOP, and 8-pad UDFN packages and is accessed via a 2-wire serial interface.
This device operates from 2.5V to 5.5V for Grade 1 or 1.7V to 5.5V for Grades 2(1)
and 3.
FEATURES
2-Wire Serial Interface Compatible with I2C
Internally Organized 16,384 x 8 (128K), 32,768 x 8 (256K)
Low-voltage, Medium-voltage and High-voltage Operation
Grade 1, VCC = 2.5V to 5.5V
Grade 2(1) and 3, VCC = 1.7V to 5.5V
Extended Temperature Range (Grade 1, 2(1), and 3 as defined in AEC-Q100)
Grade 1 Temperature Range: -40C to 125C
Grade 2 Temperature Range(1): -40C to 105C
Grade 3 Temperature Range: -40C to 85C
Schmitt Trigger, Filtered Inputs for Noise Suppression
Bidirectional Data Transfer Protocol
400kHz Compatibility
Write Protect Pin for hardware data protection
64 byte Page Write Modes
Partial Page Writes are Allowed
Self-timed Write Cycle (5ms max)
High-reliability
Endurance: 1,000,000 Write Cycles
Data Retention: 100 Years
8-lead JEDEC SOIC, 8-lead TSSOP, and 8-pad UDFN Packages
