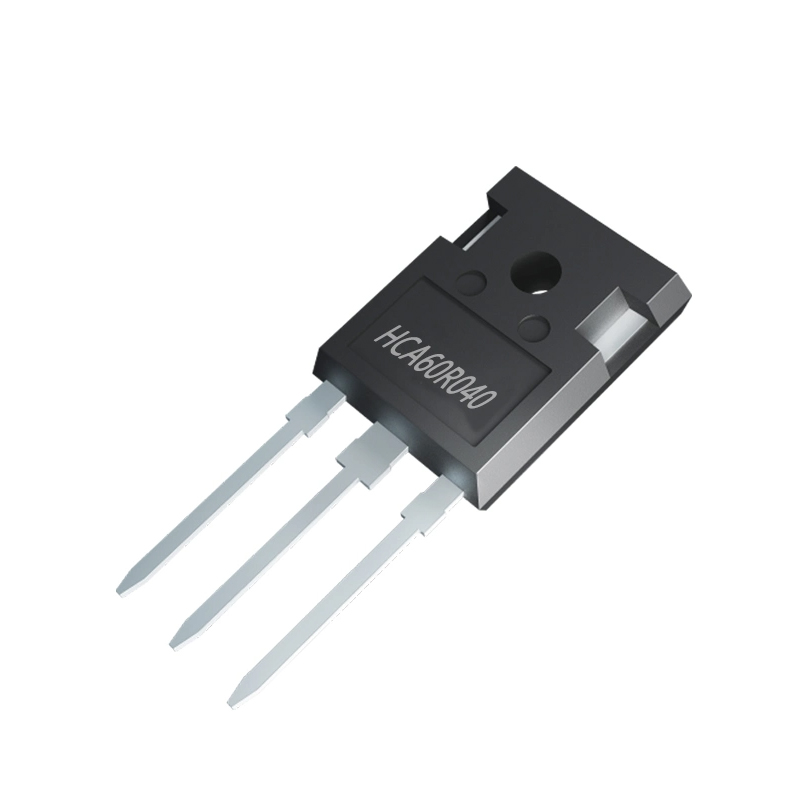

Hca60r040 to-247 Coolmos 600V 0.04Ω Super Junction Mosfet
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black

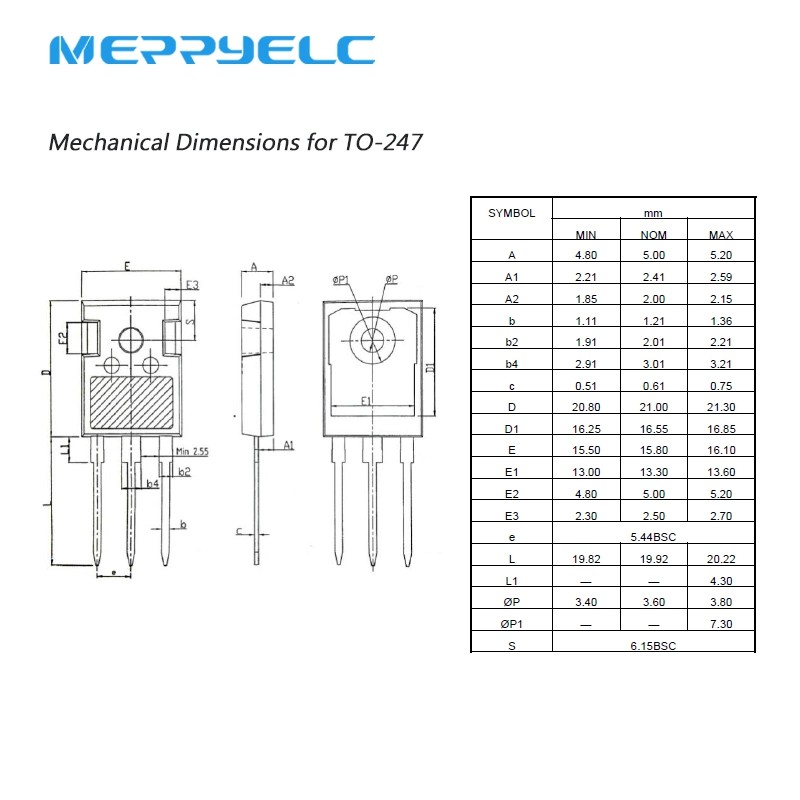

Structure: to-247
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: to-247
Basic Info.
| Model NO. | HCA60R040 TO-247 | Material | Silicon |
| Features1 | Glass Passivated Chip | Features2 | Low Forward Voltage Drop |
| Features3 | Ideal for Printed Circuit Board | Features4 | High Surge Current Capability |
| Transport Package | Plastic Package | Specification | coolmos |
| Trademark | coolmos | Origin | Guangdong, China |
| Production Capacity | 10000 Pieces/Day |

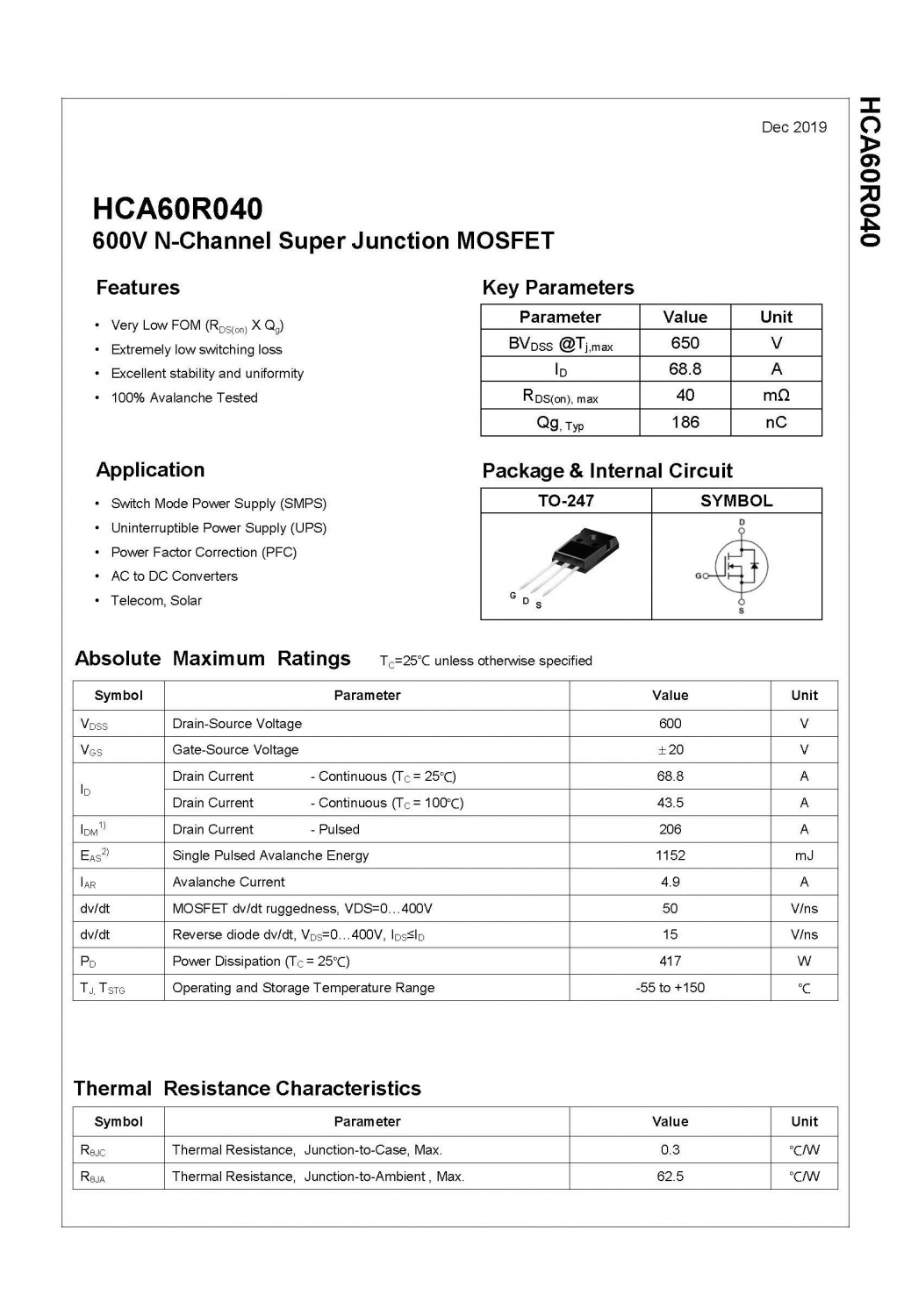

Product Description
Part Name
600V N-Channel Super Junction MOSFET
Parameter
BVDSS @Tj,max 650V
ID 68.8 A
RDS(on), max 40mΩ
Qg, Typ 186nC
Previous : LSD65R380HT N-Channel 650V, 11A, 0.38Ω Power Mosfet Super Junction
Next : 100% Avalanche Testedhcs80r850s Super Junction Mosfet Is Suitable for LED Driving Power Supply
