CAN FD Transceiver with Wake-Up Pattern (WUP) Option

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package


  • Parameters

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package


Basic Info.

Model NO.MCP2542FD/4FD, MCP2542WFD/4WFDSpecification28-pin QFN 28-pin SOIC
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day


Part Name

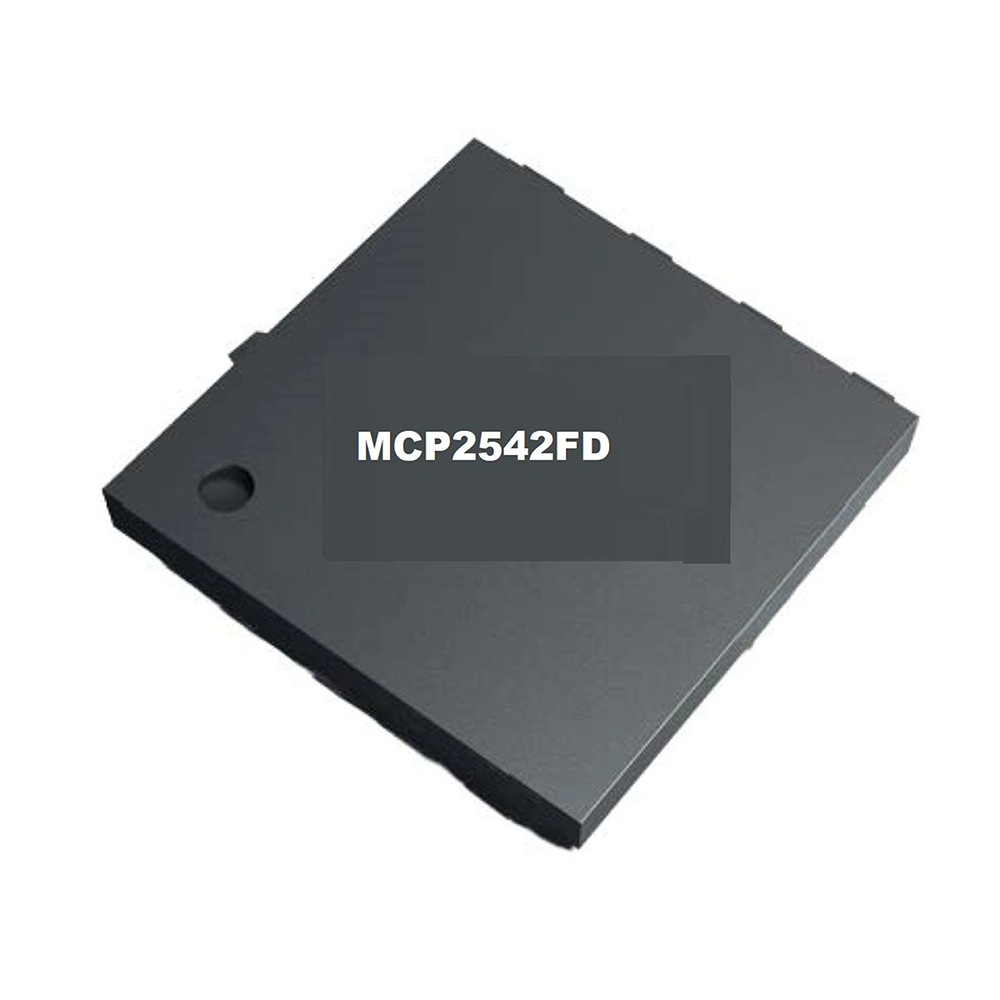

CAN FD Transceiver with Wake-Up Pattern (WUP) Option MCP2542FD/4FD, MCP2542WFD/4WF


Features

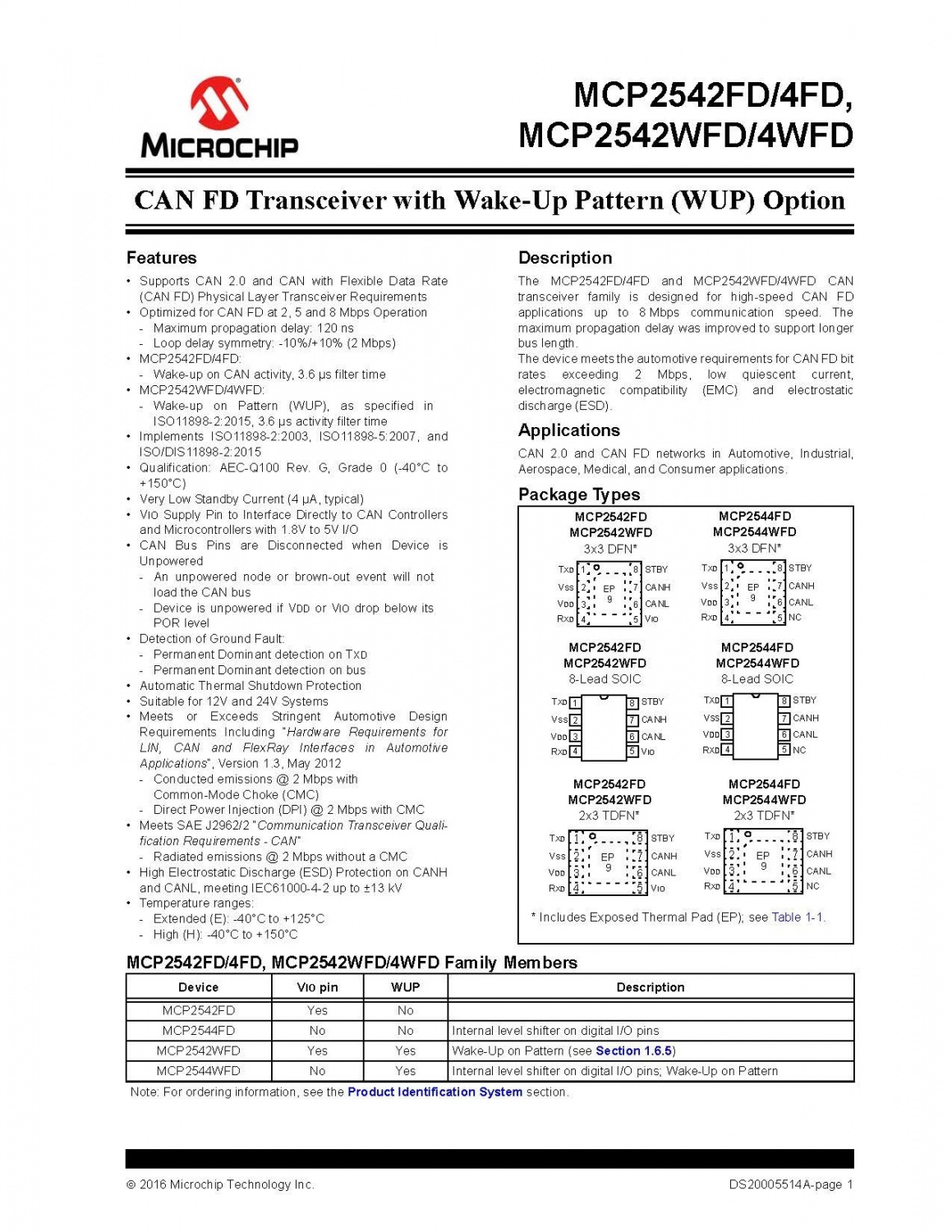

•Supports CAN 2.0 and CAN with Flexible Data Rate (CAN FD) Physical Layer Transceiver Requirements

•Optimized for CAN FD at 2, 5 and 8 Mbps Operation

-Maximum propagation delay: 120 ns

-Loop delay symmetry: -10%/+10% (2 Mbps)

•MCP2542FD/4FD:

-Wake-up on CAN activity, 3.6 μs filter time

•MCP2542WFD/4WFD:

-Wake-up on Pattern (WUP), as specified in ISO11898-2:2015, 3.6 μs activity filter time

•Implements ISO11898-2:2003, ISO11898-5:2007, and ISO/DIS11898-2:2015

•Qualification: AEC-Q100 Rev. G, Grade 0 (-40°C to +150°C)

•Very Low Standby Current (4 μA, typical)

•VIO Supply Pin to Interface Directly to CAN Controllers and Microcontrollers with 1.8V to 5V I/O

•CAN Bus Pins are Disconnected when Device is Unpowered

-An unpowered node or brown-out event will not load the CAN bus

-Device is unpowered if VDD or VIO drop below its POR level

•Detection of Ground Fault:

-Permanent Dominant detection on TXD

-Permanent Dominant detection on bus

•Automatic Thermal Shutdown Protection

•Suitable for 12V and 24V Systems

•Meets or Exceeds Stringent Automotive Design Requirements Including "Hardware Requirements for LIN, CAN and FlexRay Interfaces in Automotive Applications", Version 1.3, May 2012

-Conducted emissions @ 2 Mbps with Common-Mode Choke (CMC)

-Direct Power Injection (DPI) @ 2 Mbps with CMC

•Meets SAE J2962/2 "Communication Transceiver Qualification Requirements - CAN"

-Radiated emissions @ 2 Mbps without a CMC

•High Electrostatic Discharge (ESD) Protection on CANH and CANL, meeting IEC61000-4-2 up to ±13 kV

•Temperature ranges:

-Extended (E): -40°C to +125°C

-High (H): -40°C to +150°C


 Applications

CAN 2.0 and CAN FD networks in Automotive, Industrial, Aerospace, Medical, and Consumer applications.
