2.5 V to 5.5 V, 500 μA, Quad Voltage Output 8-/10-/12-Bit DACs in 10-Lead Packages ICS

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

  • Parameters

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

Basic Info.

Model NO.AD5324SpecificationPDIP/SOIJ/SOIC/TSSOP
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day


Product Description

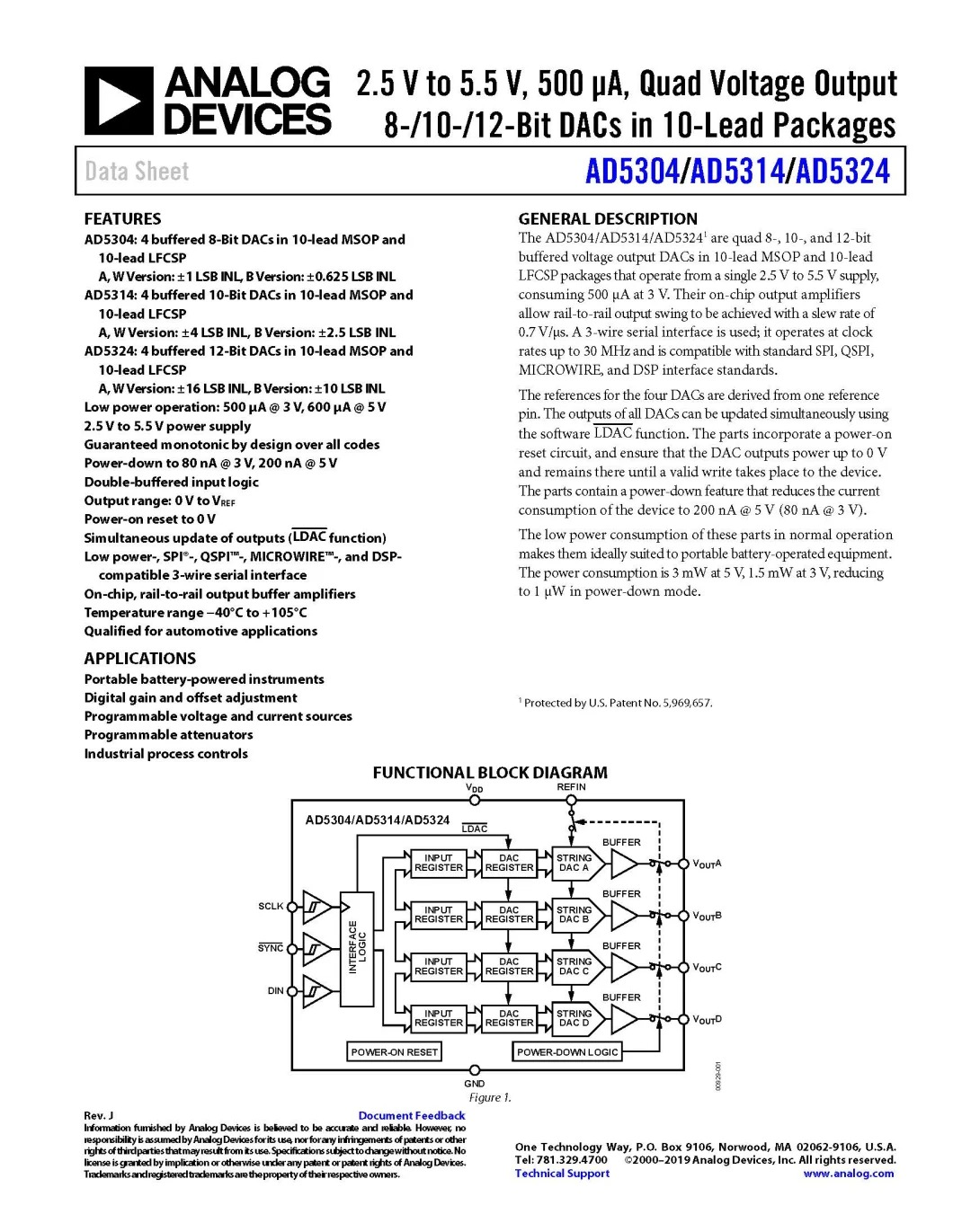

2.5 V to 5.5 V, 500 μA, Quad Voltage Output 8-/10-/12-Bit DACs in 10-Lead Packages

FEATURES

1.AD5304: 4 buffered 8-Bit DACs in 10-lead MSOP and 10-lead LFCSP

2.A, W Version: ±1 LSB INL, B Version: ±0.625 LSB INL AD5314: 4 buffered 10-Bit DACs in 10-lead MSOP and 10-lead LFCSP A, W Version: ±4 LSB INL, B Version: ±2.5 LSB INL

3.AD5324: 4 buffered 12-Bit DACs in 10-lead MSOP and 10-lead LFCSP

4.A, W Version: ±16 LSB INL, B Version: ±10 LSB INL Low power operation: 500 μA 3 V, 600 μA  5 V 2.5 V to 5.5 V power supply

Guaranteed monotonic by design over all codes Power-down to 80 nA 3 V, 200 nA  5 V

Double-buffered input logic

Output range: 0 V to VREF

Power-on reset to 0 V

Simultaneous update of outputs (LDAC function) Low power-, SPI®-, QSPI™-, MICROWIRE™-, and DSP-compatible 3-wire serial interface

5.On-chip, rail-to-rail output buffer amplifiers Temperature range −40°C to +105°C Qualified for automotive applications


APPLICATIONS

Portable battery-powered instruments Digital gain and offset adjustment Programmable voltage and current sources Programmable attenuators

Industrial process controls



2.5 V to 5.5 V, 500 μA, Quad Voltage Output 8-/10-/12-Bit DACs in 10-Lead Packages ICS
