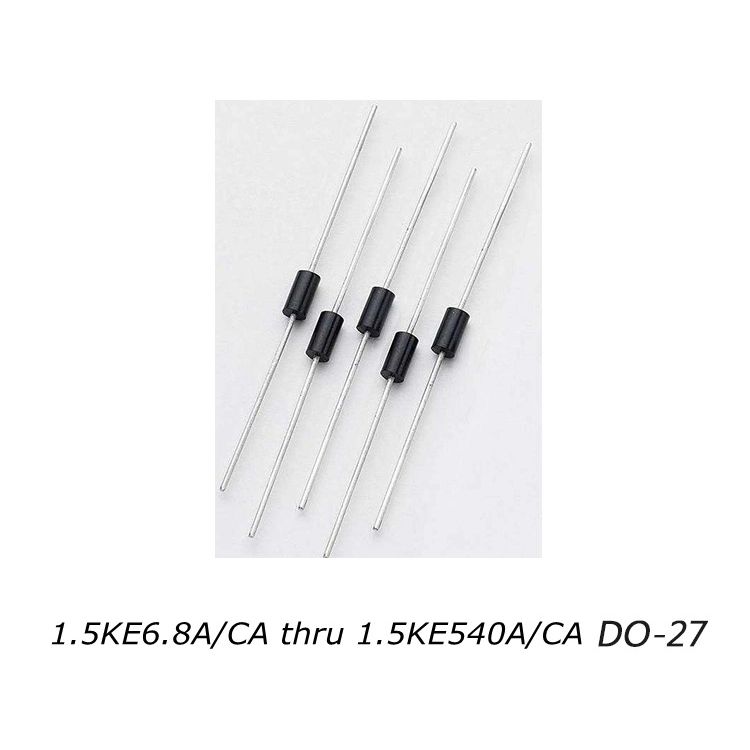

1.5KE150A TVS Diode 1.5KE6.8A/CA thru 1.5KE540A/CA 1N6267A thru 1N6303A Transient Voltage Suppressors Diode
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black

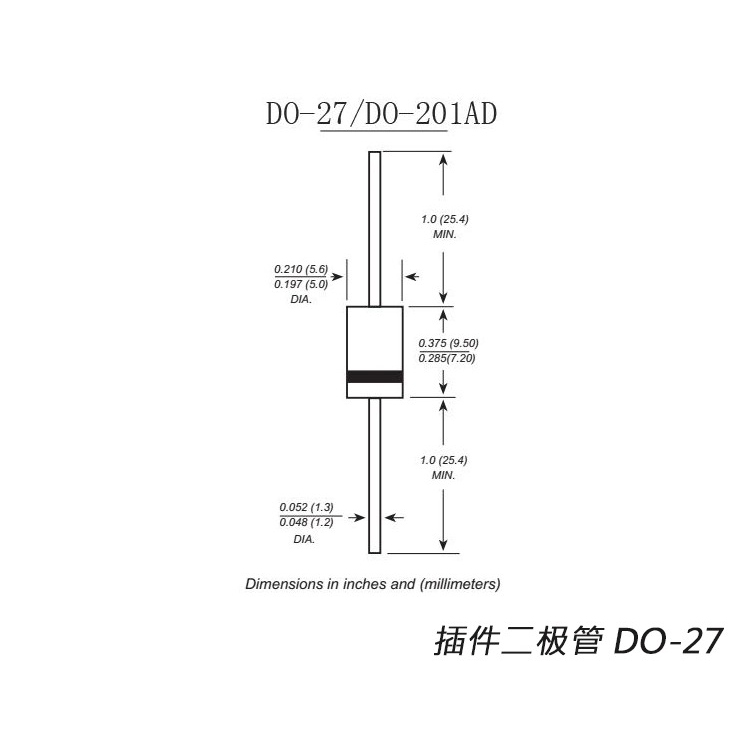

Structure: DO-27
- Parameters
Encapsulation Structure: Chip Transistor
Application: LED Drive Power Supply, Medical Power Supply
Certification: RoHS, CE, ISO, CCC
Luminous Intensity: Standard
Color: Black
Structure: DO-27
Basic Info.
| Model NO. | 1.5KE150A | Material | Silicon |
| Features1 | Low reverse leakage current | Features2 | Low Forward Voltage Drop |
| Features3 | Meet UL flammability classification 94V-0 | Features4 | High Surge Current Capability |
| Transport Package | Plastic Package | Origin | Guangdong, China |
| Production Capacity | 10000 Pieces/Day |
Part Name
TVS Diode 1.5KE6.8A/CA thru 1.5KE540A/CA 1N6267A thru 1N6303A Transient Voltage Suppressors Diode
Features
•Glass passivated chip junction
•Available in uni-directional and bi-directional
•1500 W peak pulse power capability with a10/1000 μs waveform, repetitive rate (duty cycle):0.01 %
•Excellent clamping capability
•Very fast response time
•Low incremental surge resistance
•Solder dip 275 °C max. 10 s, per JESD 22-B106
Previous : 1.5KE200A TVS Diode 1.5KE6.8A/CA thru 1.5KE540A/CA 1N6267A thru 1N6303A Transient Voltage Suppressors Diode
Next : M7 SMA 1.0Amp Standard Surface Mounted Rectifiers Diode
